Terminal Blocks

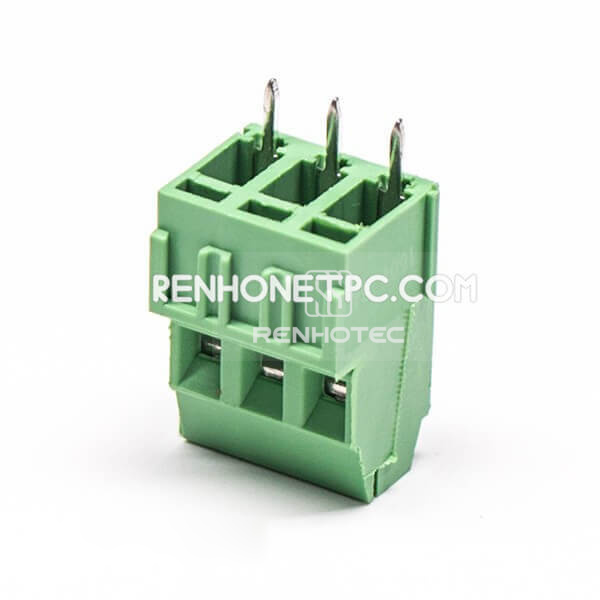

Screw Connection Terminal Block Vertical Type 3pin PCB Mount
- Pin Count3 Pin
- OrientationStraight
- Mounting TypePCB Mount / Through Hole
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 10A
- Voltage Rating
- 300V
Mechanical
- Pin Count
- 3 Pin
- Orientation
- Straight
- Mounting Type
- PCB Mount / Through Hole
- Pitch options
- 3.50/3.81mm
Material
- Color
- Green
Before you specify
Selection guide
3-pin green screw terminal block with straight orientation, through-hole mounting. Pitch options listed: 3.50/3.81mm. Confirm the required option before matching the footprint or mating part. Rated current 10 A; rated voltage 300 V.
RHT-665-1509
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Screw Connection Terminal Block Vertical Type 3pin PCB Mount- Product family
- Terminal Blocks
- Public Part No.
- RHT-665-1509
