Modular Connectors

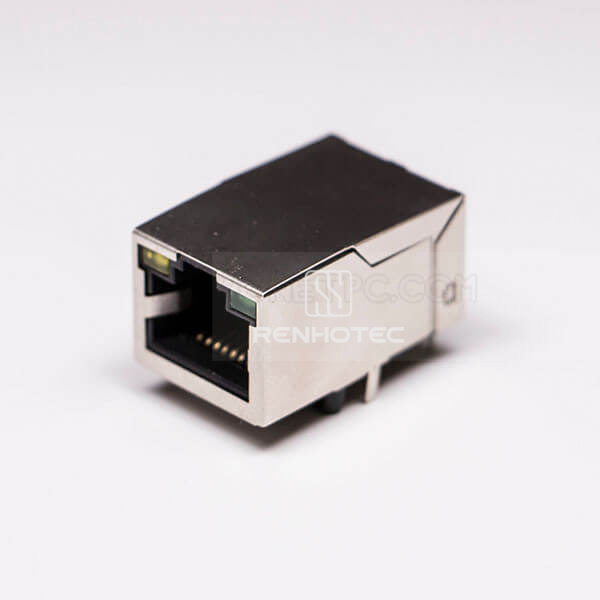

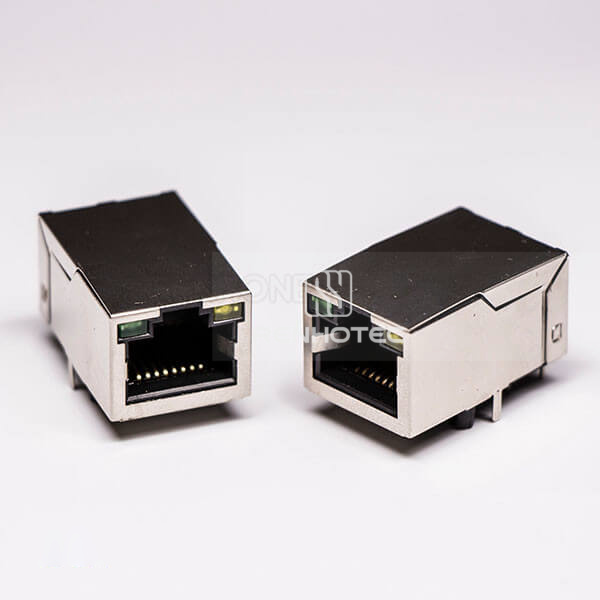

RJ45 Female Connectors 8P8C 180 Degree with LED and Shield

Part No.RHT-620-0726
1-port shielded female RJ45 8P8C modular connector with a straight orientation and PCB mounting. Includes LEDs.
  • Connector Type8P8C
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

LED Option
With LED
Current Rating
3A continuous
Voltage Rating
1000V RMS
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Connection

Connector Type
8P8C

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
PCB Mount
Number of Ports
1 Port
Shielding
Shielded
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-40 to 120 °C

Before you specify

Selection guide

1-port shielded female RJ45 8P8C modular connector with a straight orientation and PCB mounting. Includes LEDs.

RHT-620-0726
