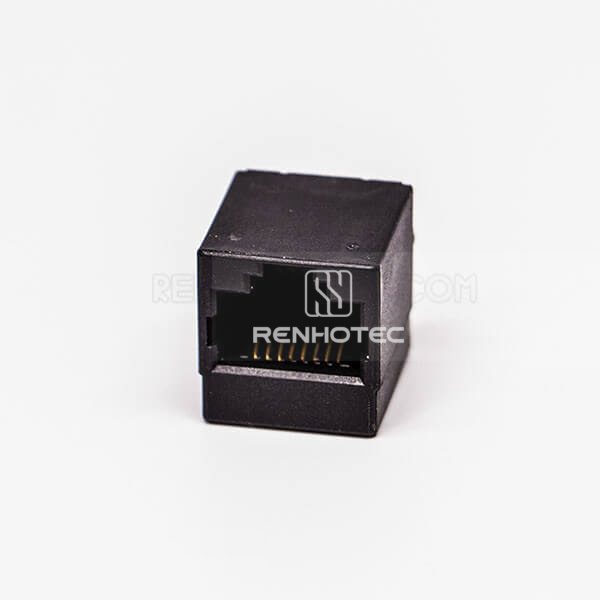

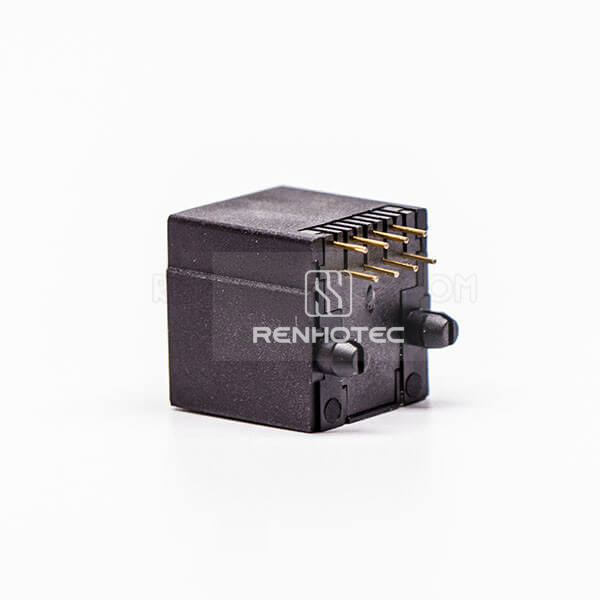

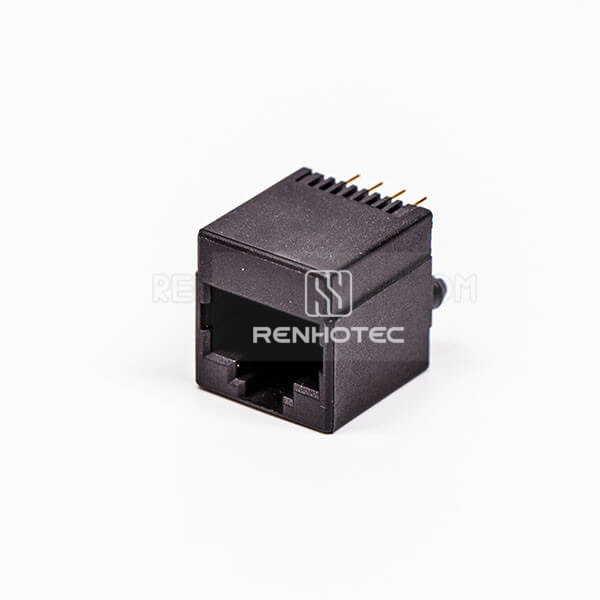

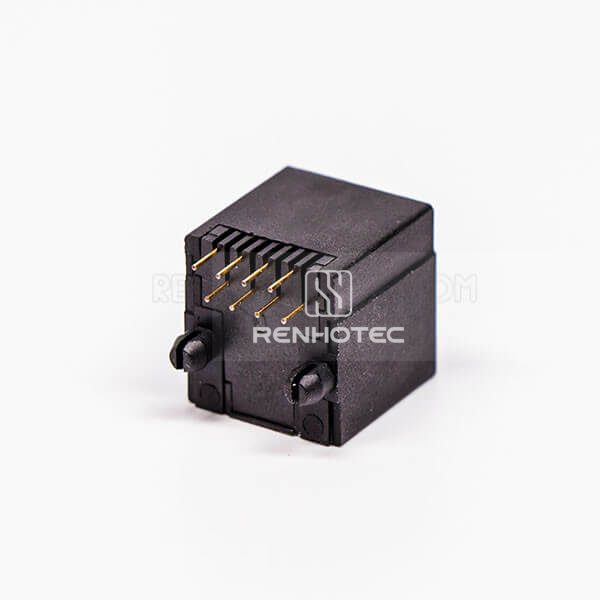

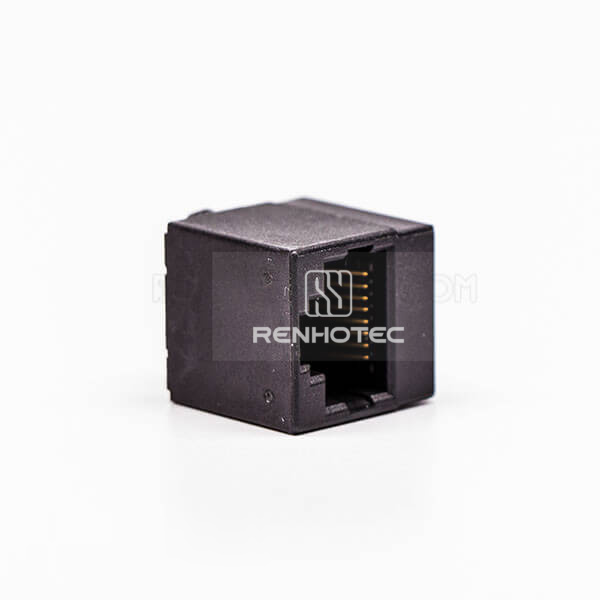

RJ45 Female 180 Degree Connector 1 Port 8P Black Gold Plated Unshield Without LED

Part No.RHT-620-0729
1-port black unshielded female RJ45 8-pin modular connector with a straight orientation and PCB mounting. Without LEDs.
  • Pin Count8 Pin
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

LED Option
Without LED
Current Rating
3A continuous
Voltage Rating
1000V RMS
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount
Number of Ports
1 Port
Shielding
Unshielded
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Material

Color
Black

Environmental

Operating Temperature
-40 to 120 °C

Before you specify

Selection guide

1-port black unshielded female RJ45 8-pin modular connector with a straight orientation and PCB mounting. Without LEDs.

RHT-620-0729
