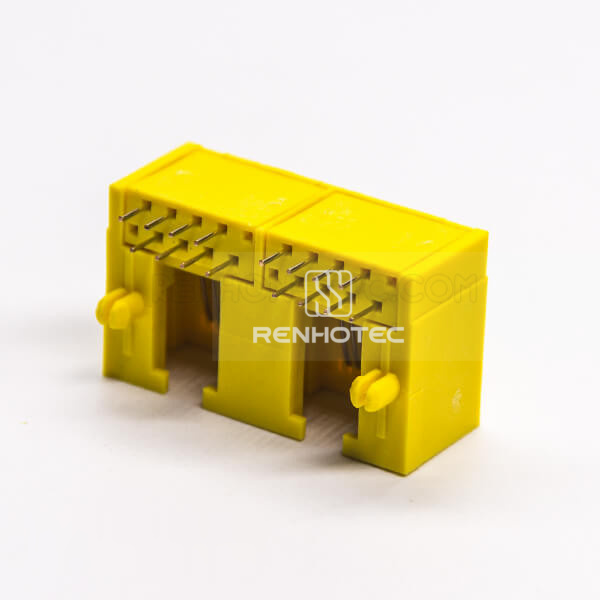

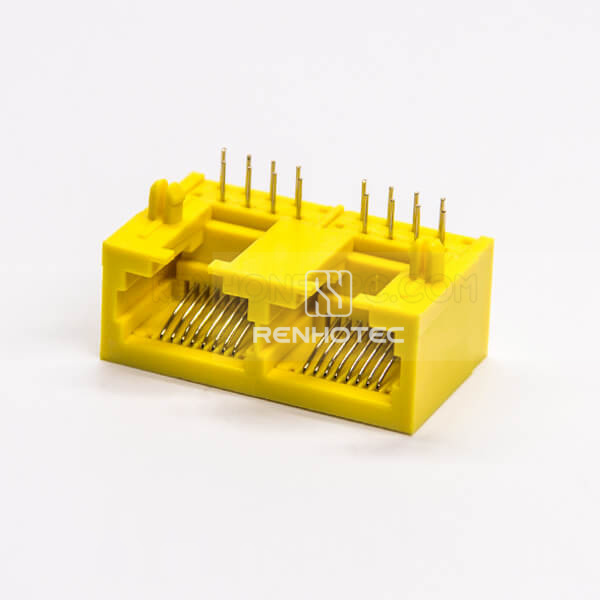

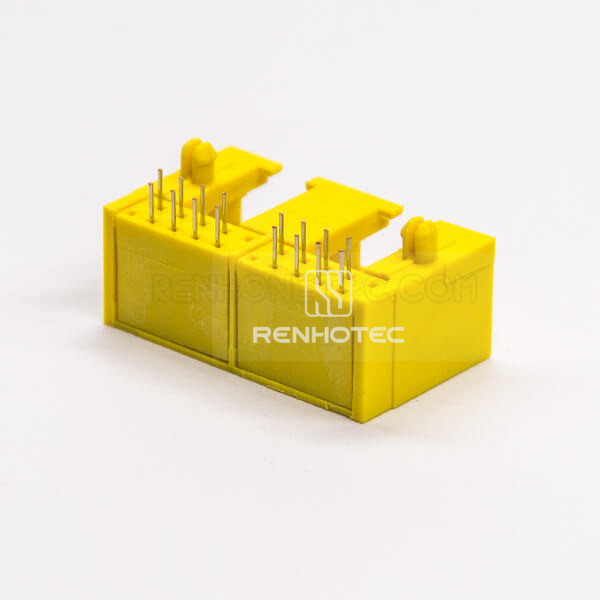

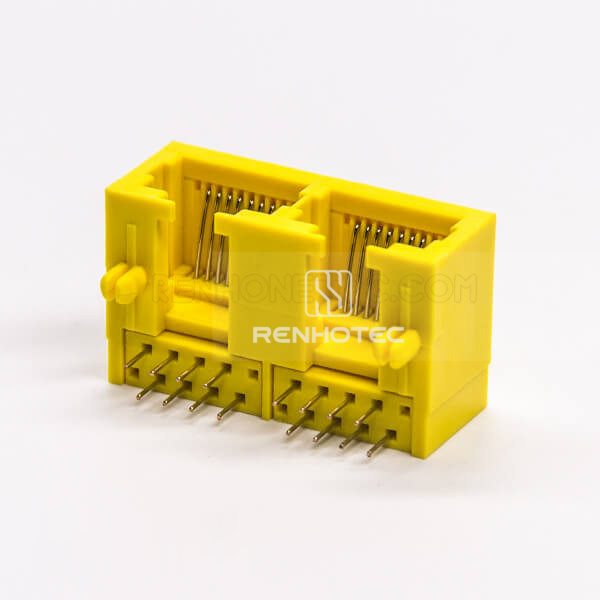

RJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle Unshielded

Public Part No. RHT-620-1254

RJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle Unshielded
Enlarge image
RJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle UnshieldedRJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle UnshieldedRJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle UnshieldedRJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle UnshieldedRJ45 Dual Coupler 1x2 Port Yellow Plastic 8P8C Shell Network Connector Right Angle Unshielded

Key specifications

Connector Type
8P8C / RJ45 Jack
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Full Specifications

Electrical

LED Option
Without LED
Current Rating
3A continuous
Voltage Rating
1000V RMS
Filter detail
without Filtered
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
8P8C / RJ45 Jack
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Number of Ports
2 Port
Shielding
Unshielded
Contact configuration
1x2
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Material

Color
Yellow

Environmental

Operating Temperature
-40 to 120 °C
