Modular Connectors

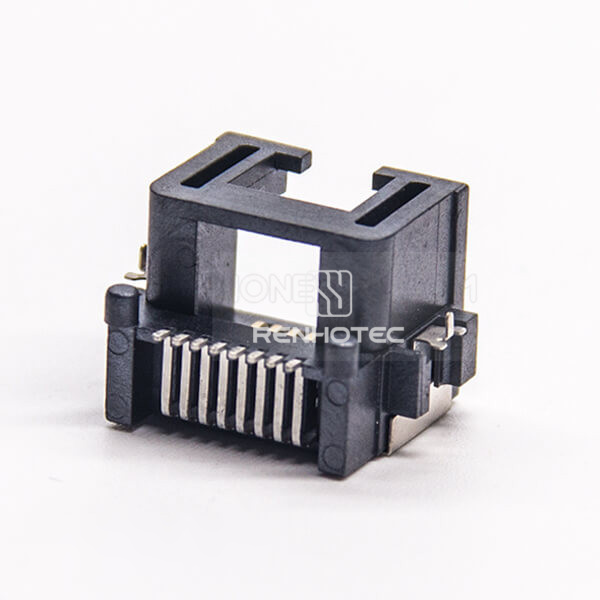

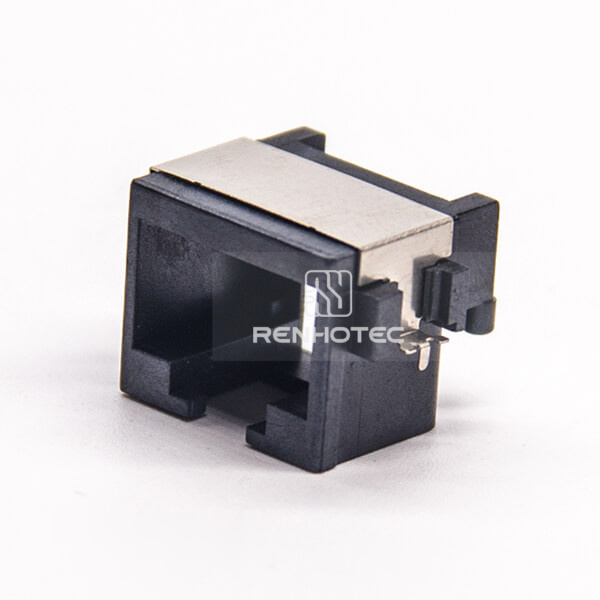

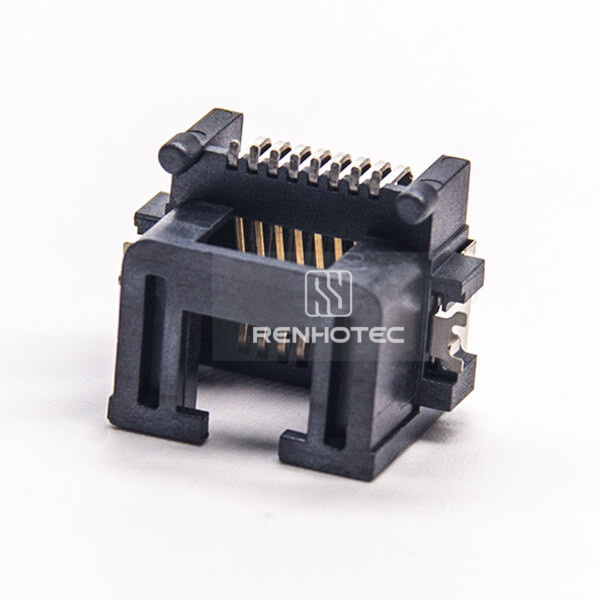

RJ45 8P8C Modular Shielded Right Angle SMT Type for PCB Mount
- Connector Type8P8C / RJ45 Jack
- OrientationRight Angle
- Mounting TypePCB Mount / SMT
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- LED Option
- Without LED
- Current Rating
- 3A continuous
- Voltage Rating
- 1000V RMS
- Filter detail
- without Filtered
- Insulation resistance
- 500MΩ min.
- Dielectric withstanding voltage
- 1500V min.
Connection
- Connector Type
- 8P8C / RJ45 Jack
Mechanical
- Orientation
- Right Angle
- Mounting Type
- PCB Mount / SMT
- Number of Ports
- 1 Port
- Shielding
- Shielded
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
Environmental
- Operating Temperature
- -40 to 120 °C
Before you specify
Selection guide
1-port shielded RJ45 8P8C modular connector with a right-angle orientation and SMT PCB mounting. Without LEDs.
RHT-620-1220
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
RJ45 8P8C Modular Shielded Right Angle SMT Type for PCB Mount- Product family
- Modular Connectors
- Public Part No.
- RHT-620-1220
