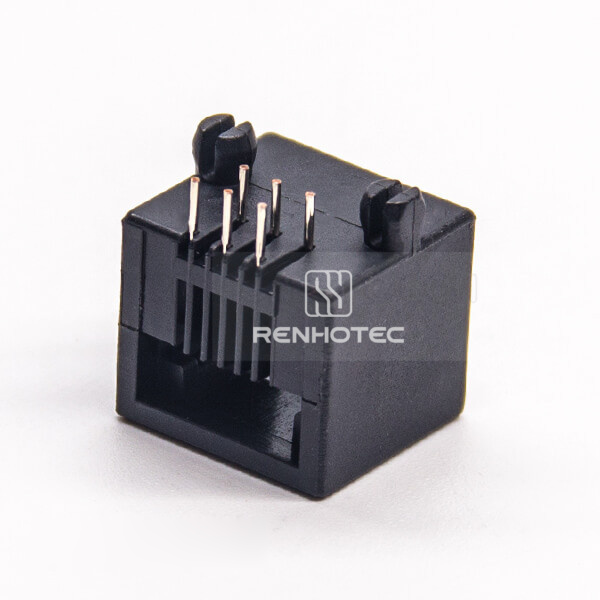

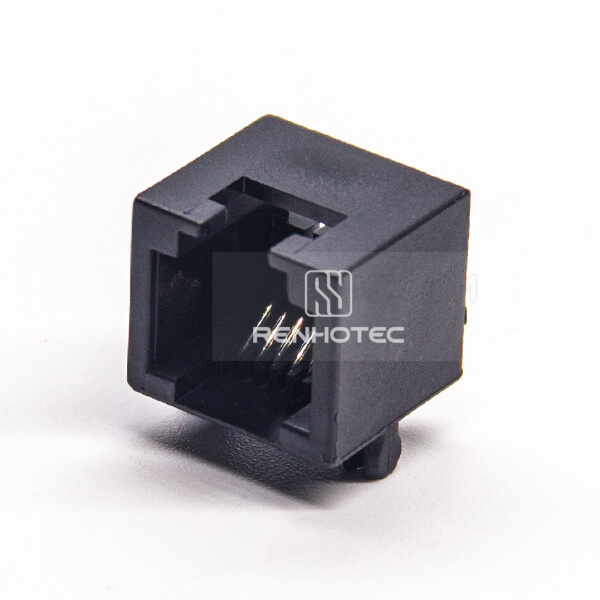

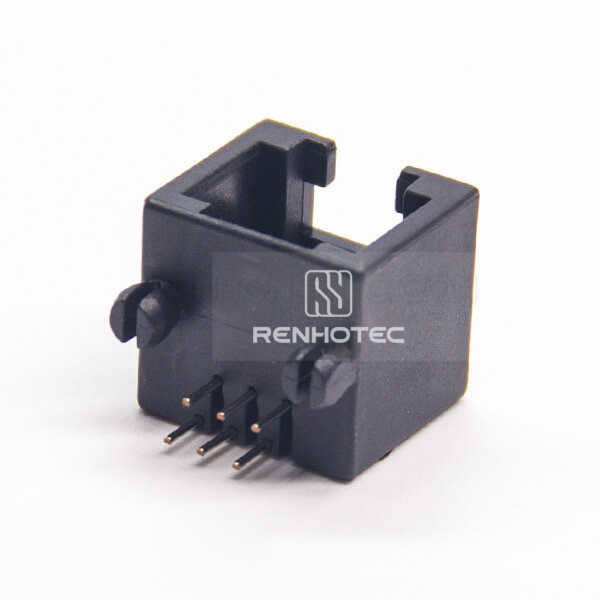

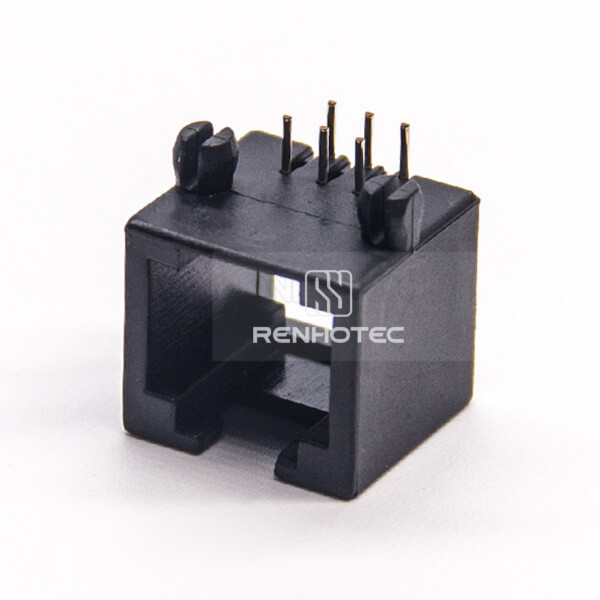

RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount

Part No.RHT-620-1237
1-port black unshielded RJ12 6P6C modular connector with a right-angle orientation and through-hole PCB mounting. Without LEDs.
  • Connector Type6P6C / RJ12 Jack
  • OrientationRight Angle
  • Mounting TypePCB Mount / Through Hole

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

LED Option
Without LED
Current Rating
1.5A
Voltage Rating
125V AC
Filter detail
without Filtered
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Connection

Connector Type
6P6C / RJ12 Jack

Mechanical

Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Number of Ports
1 Port
Shielding
Unshielded
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Material

Color
Black

Environmental

Operating Temperature
-40 to 85 °C

Before you specify

Selection guide

1-port black unshielded RJ12 6P6C modular connector with a right-angle orientation and through-hole PCB mounting. Without LEDs.

RHT-620-1237
