D-SUB Connector

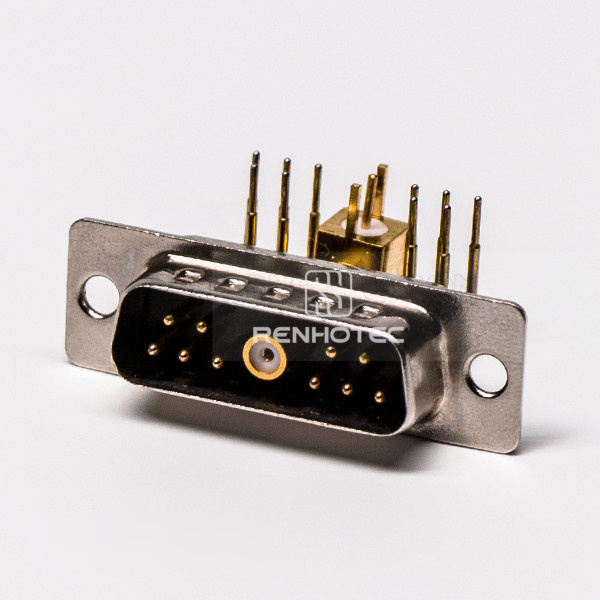

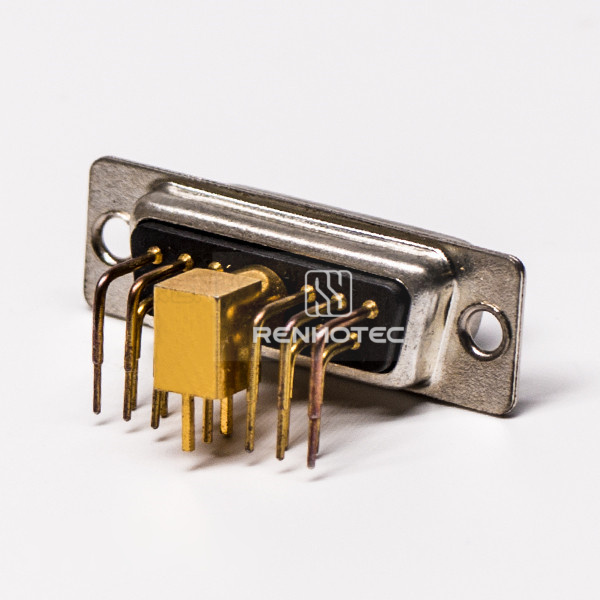

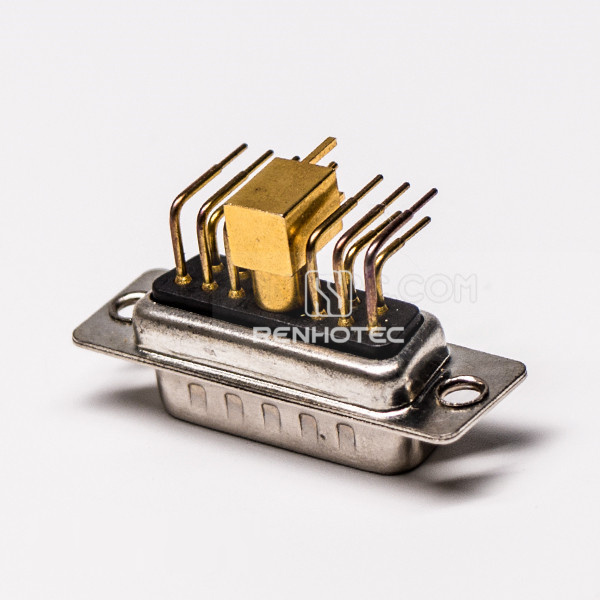

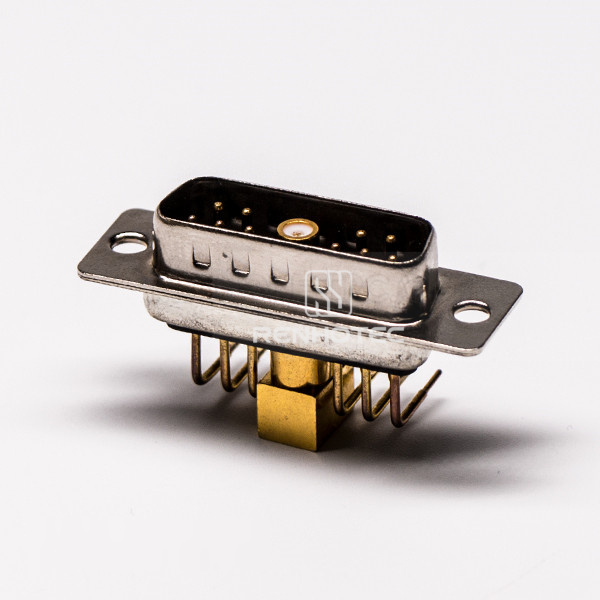

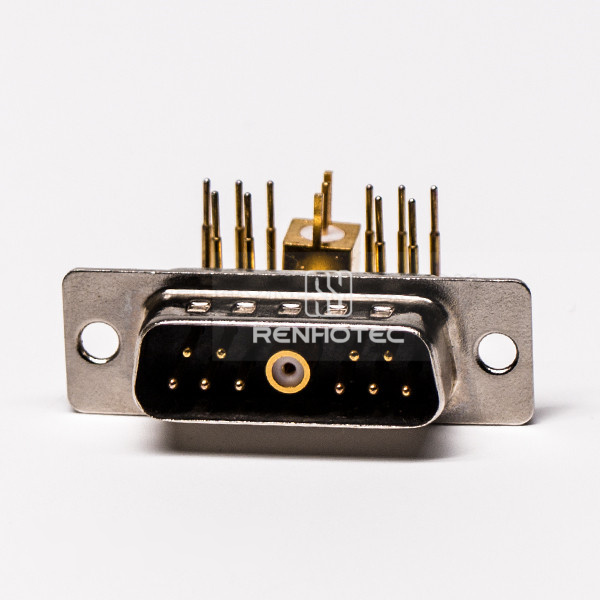

Right Angle Coaxial D-SUB Male Solder Type with Staking for PCB Mount
- Connector TypePower D-SUB
- GenderMale
- OrientationRight Angle
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Frequency range
- 0 -1 GHz
- VSWR
- 1.4 (+0.04/GHz)
- Characteristic Impedance
- 50 Ohms
- Dielectric Withstanding Voltage
- ≥ 1000V R.M.S. at 50Hz
- Insulation Resistance
- ≥ 5000 megaohms at 500 V D.C.
- Contact Resistance
- ≤5 milliohms
Connection
- Connector Type
- Power D-SUB
Mechanical
- Gender
- Male
- Orientation
- Right Angle
- Mounting Type
- PCB Mount
- Termination Type
- Solder Type / Staking Type
- Contact configuration
- 11W1
- Mechanical operations
- up to 500
Environmental
- Operating Temperature
- -55 to 155 °C
Before you specify
Selection guide
11W1 male D-SUB connector with right-angle orientation, PCB mounting and solder termination. Termination: staking type.
RHT-681-1236
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Right Angle Coaxial D-SUB Male Solder Type with Staking for PCB Mount- Product family
- D-SUB Connector
- Public Part No.
- RHT-681-1236
