Cable Assembly

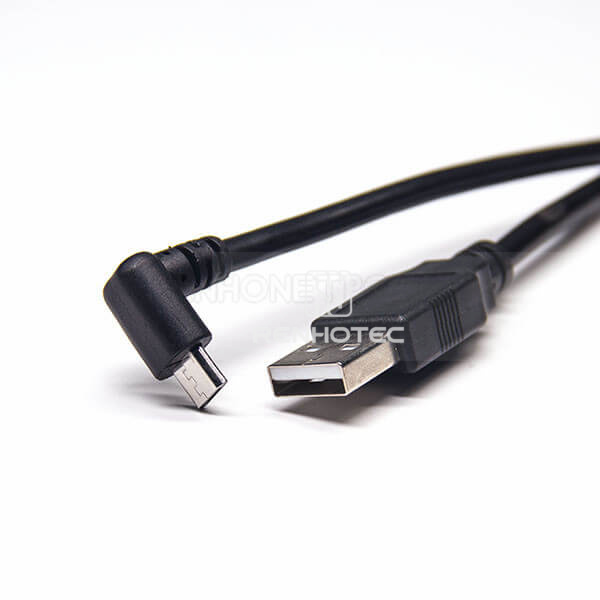

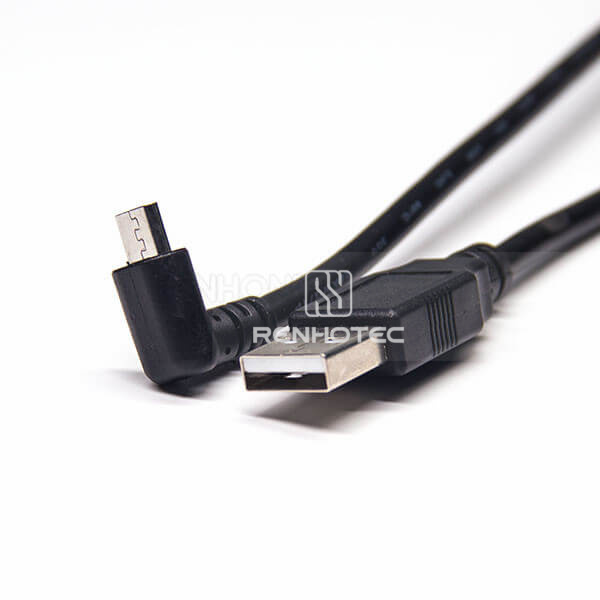

Right Angle Micro USB Plug to 2.0 A Male Straight 1M Extension Cable
Public Part No. RHT-606-0112
Key specifications
- Connector Type
- Micro USB Type B / Type A / USB2.0
- Gender
- Male
Overview
USB 2.0 Micro USB Type-B down-angle male to straight Type-A male cable. The cable is 1 m long with a 3.5 mm outside diameter.
Full Specifications
Electrical
- Current Rating
- 3A continuous
- Insulation resistance
- 500MΩ min.
- Dielectric withstanding voltage
- 1500V min.
Mechanical
- Connector Type
- Micro USB Type B / Type A / USB2.0
- Gender
- Male
- Orientation detail
- Down Angle
- Cable length
- 1 m
- Cable outside diameter
- 3.5 mm
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
- Orientation at connector ends
- Straight / Right Angle
Material
- Conductor material
- Copper
- Cable jacket material
- PVC
Environmental
- Operating Temperature
- -40 to 120 °C
