USB Connector

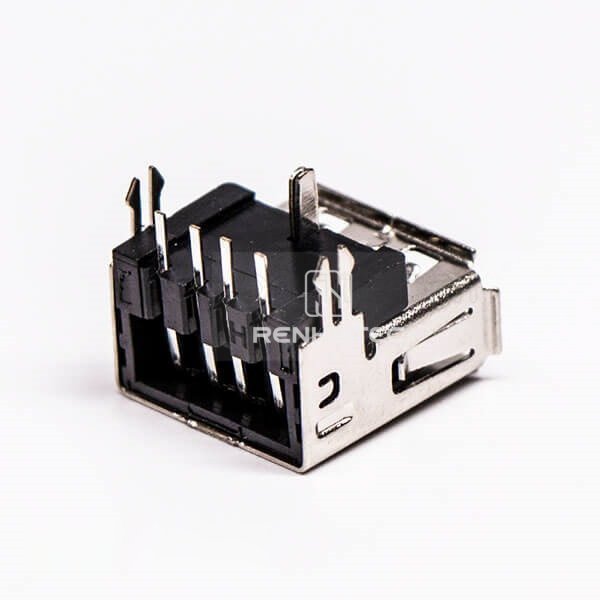

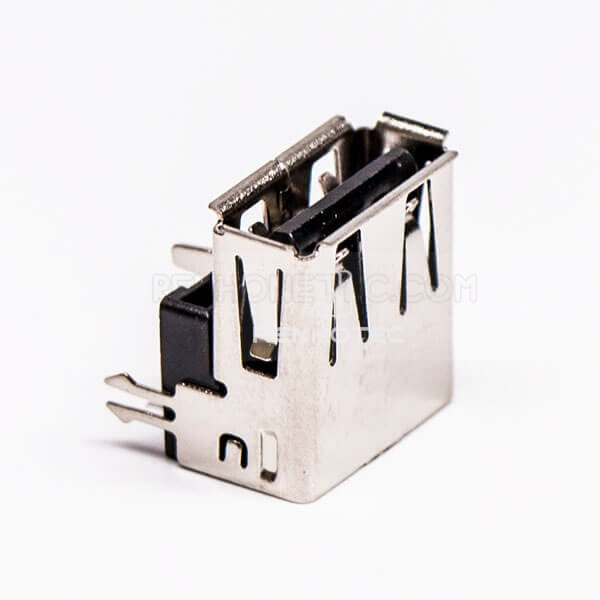

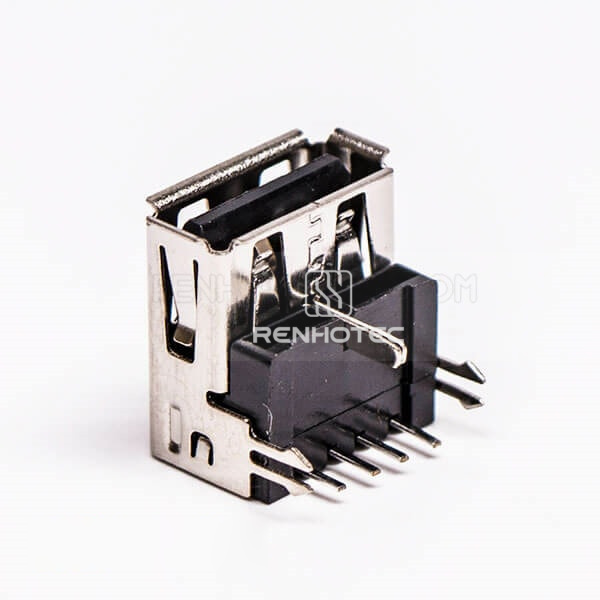

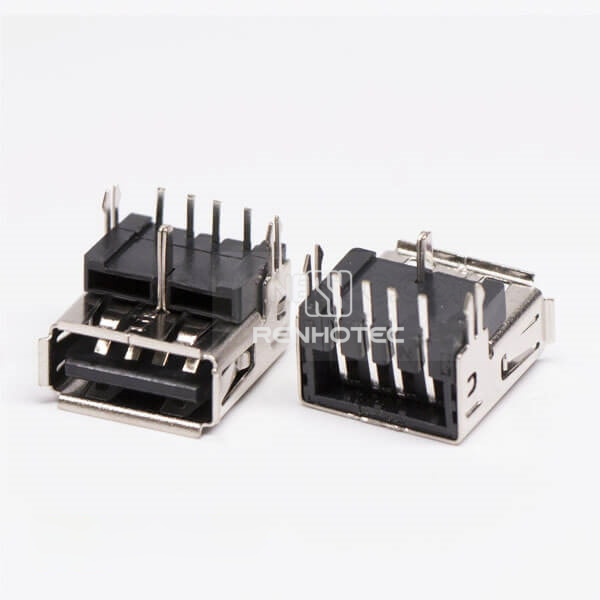

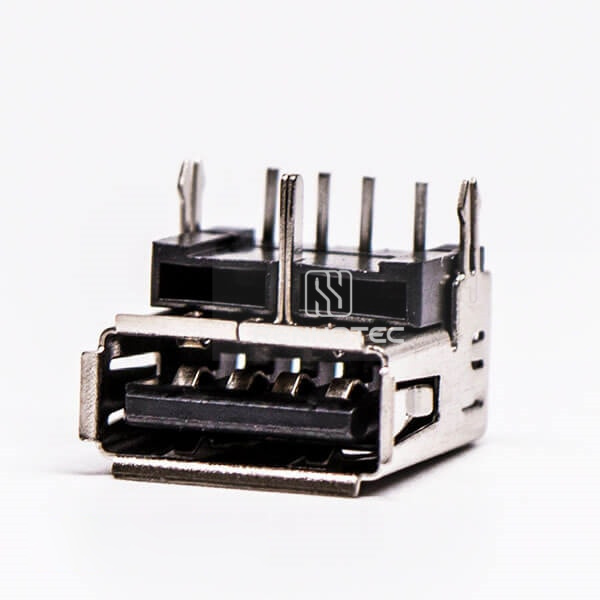

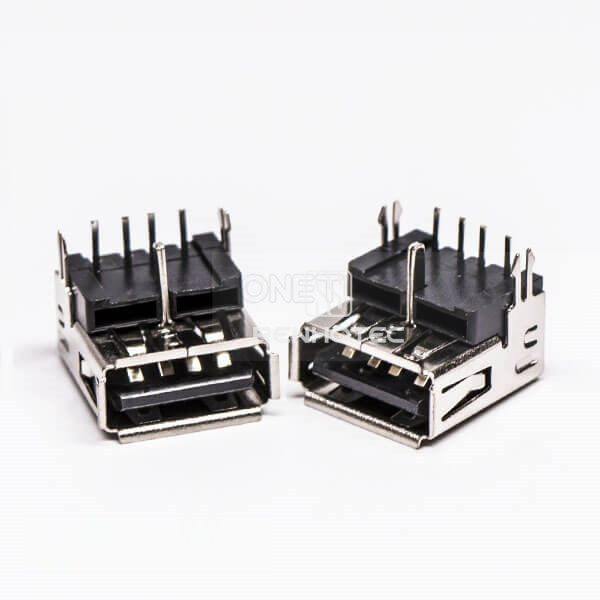

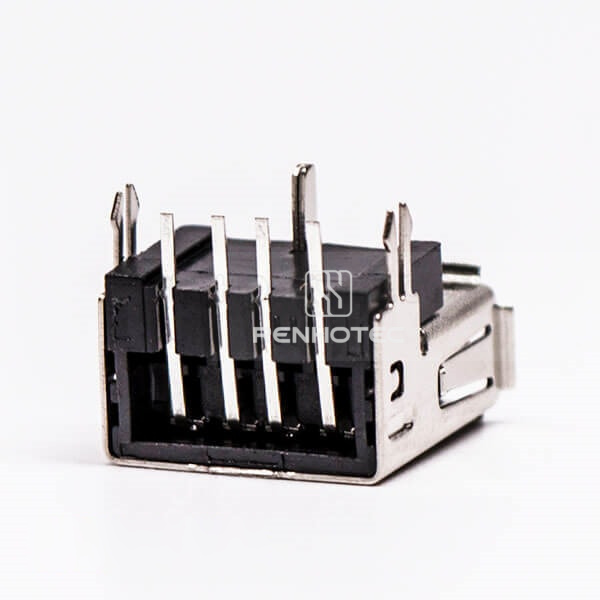

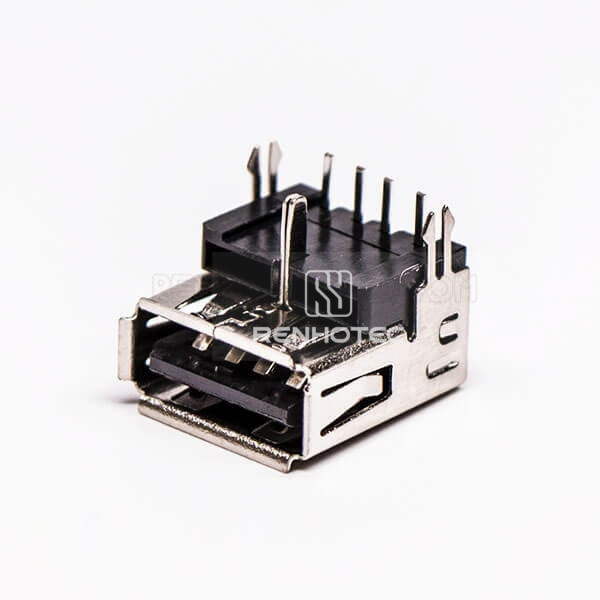

Right Angle Female USB Through Hole Harpoon for PCB Mount

Public Part No. RHT-692-1328

Right Angle Female USB Through Hole Harpoon for PCB Mount
Enlarge image
Right Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB MountRight Angle Female USB Through Hole Harpoon for PCB Mount

Key specifications

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Request QuoteFull specifications

Overview

USB Connector with Female, Right Angle, Type A / USB2.0. Mounting: DIP, Through Hole, PCB Mount.

Harpoon mounting detail. Check the retention-hole pattern as well as the contact layout.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Construction detail
Harpoon
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
Black

Environmental

Operating Temperature
-40 to 85 °C

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.
