USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

Public Part No. RHT-692-2032

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
Enlarge image
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

Key specifications

Connector Type
USB3.1 / Type C
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pin Count
24 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

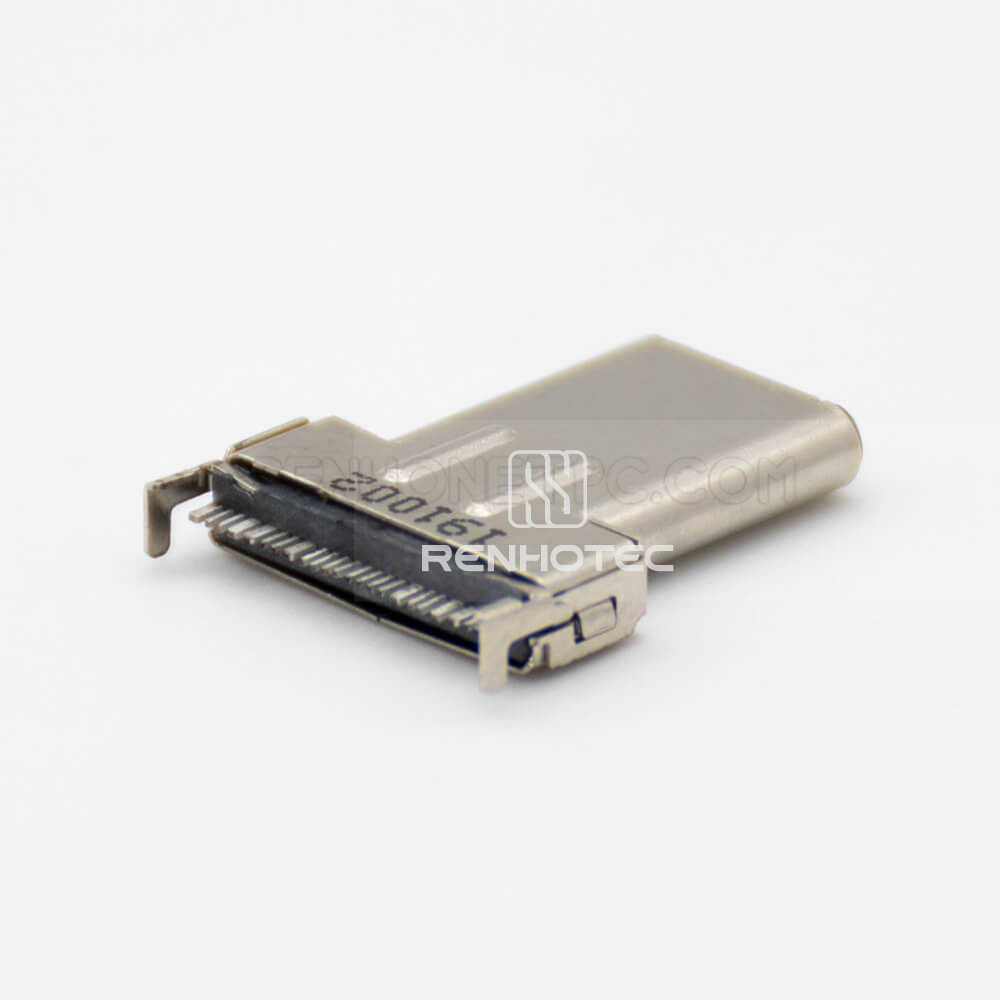

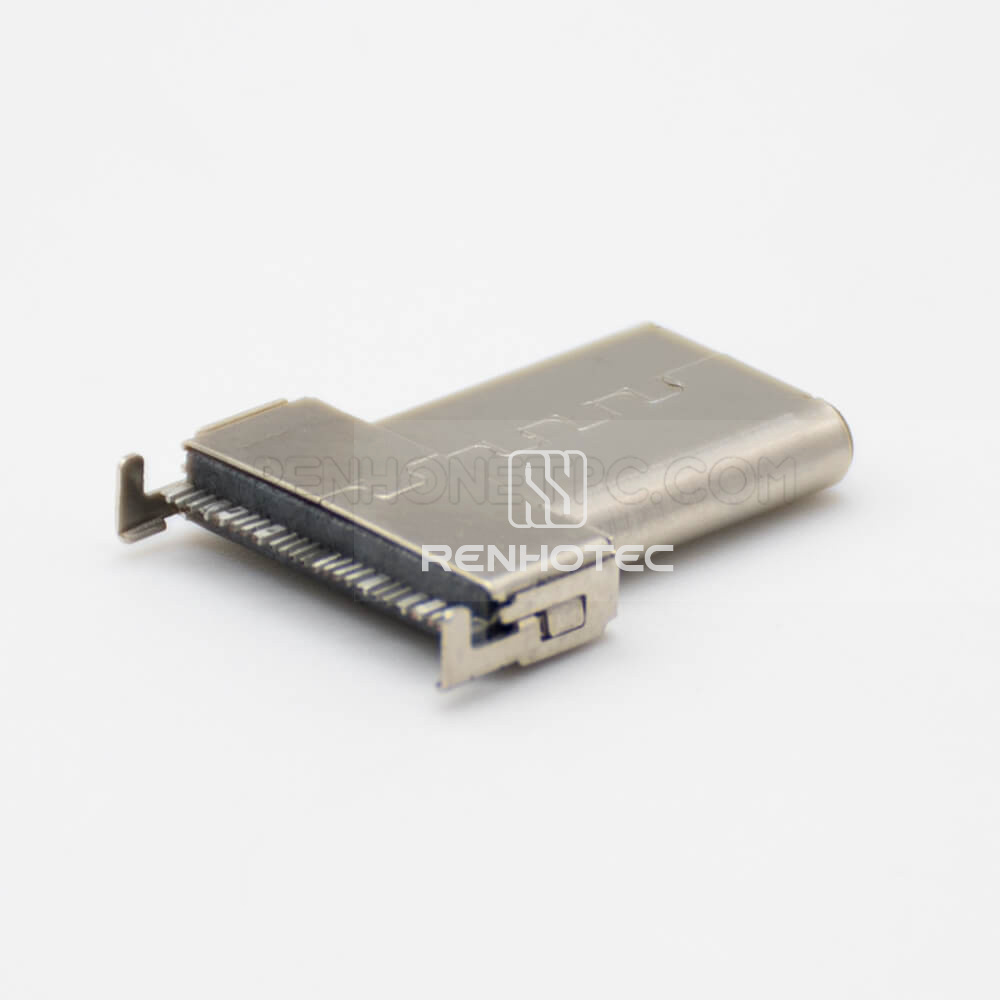

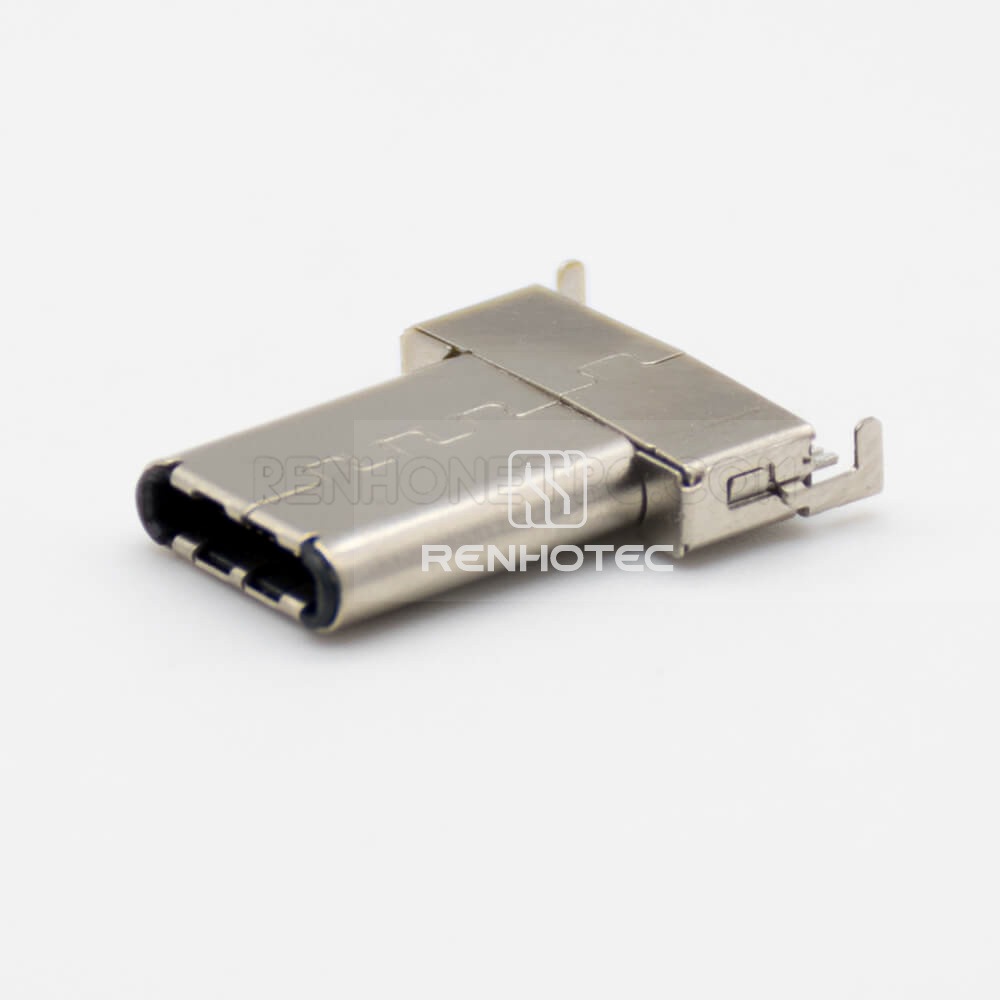

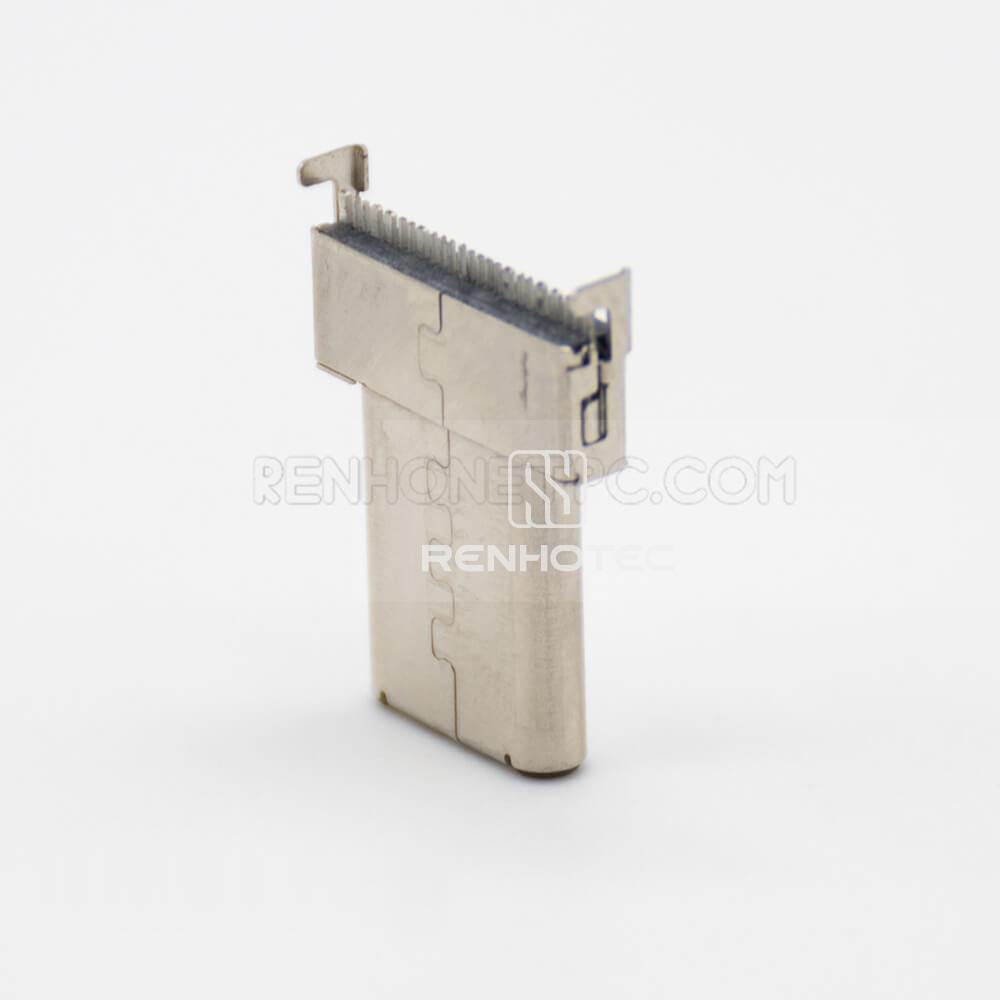

USB Connector with 24 Pin, Male, Straight, Type C / USB3.1. Mounting: SMT.

Termination Type: Solder Type.

Offset construction. Compare the offset position with the mechanical drawing and available assembly space.

Full Specifications

Electrical

Current Rating
1.5A
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.1 / Type C
Pin Count
24 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Construction detail
Offset Type
Connection feature
Reversible plug and cable orientation
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Waterproof Rating
IP67
Operating Temperature
-45 to 85 °C
