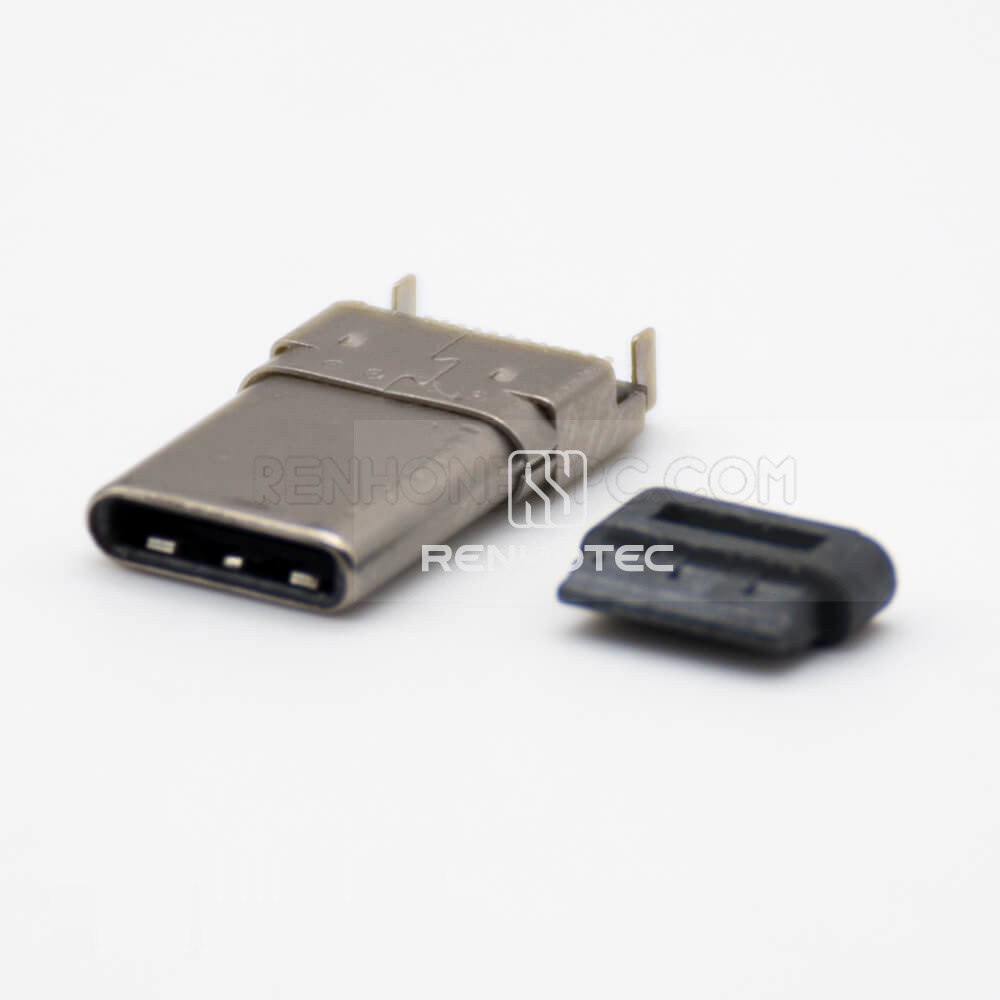

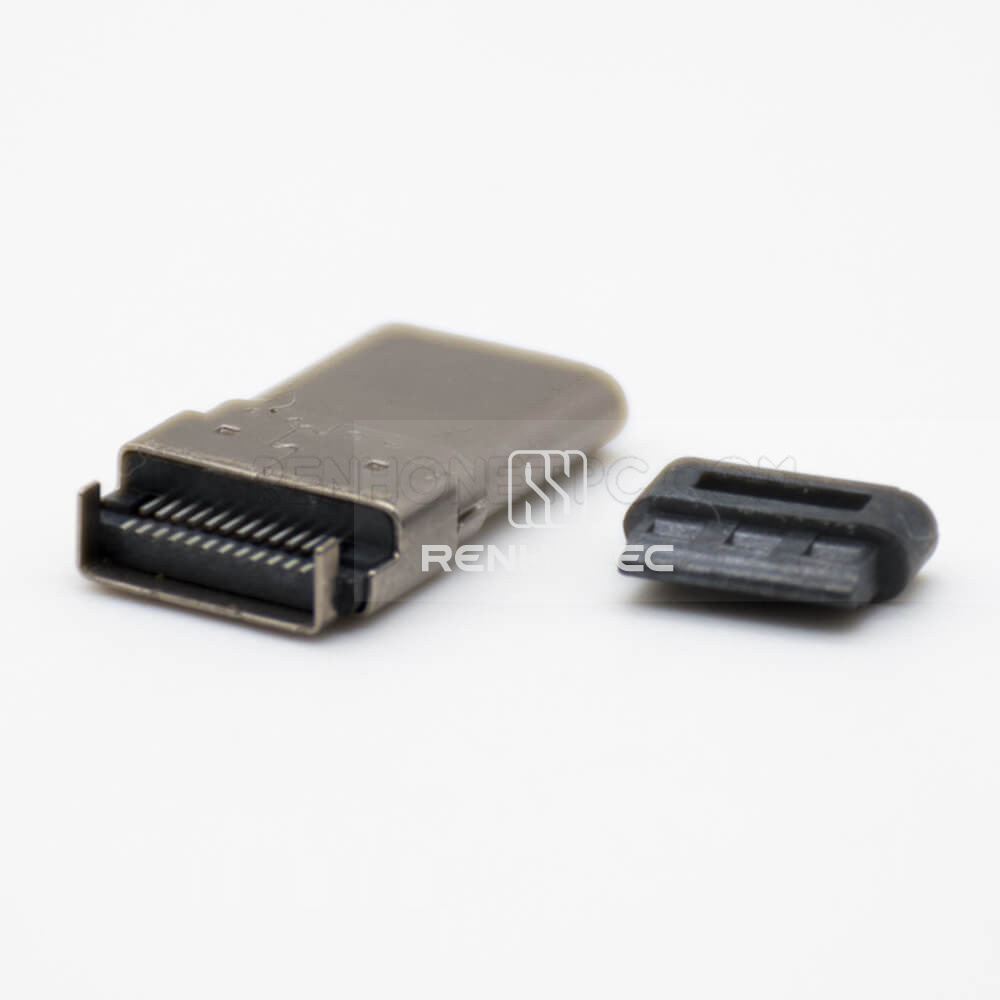

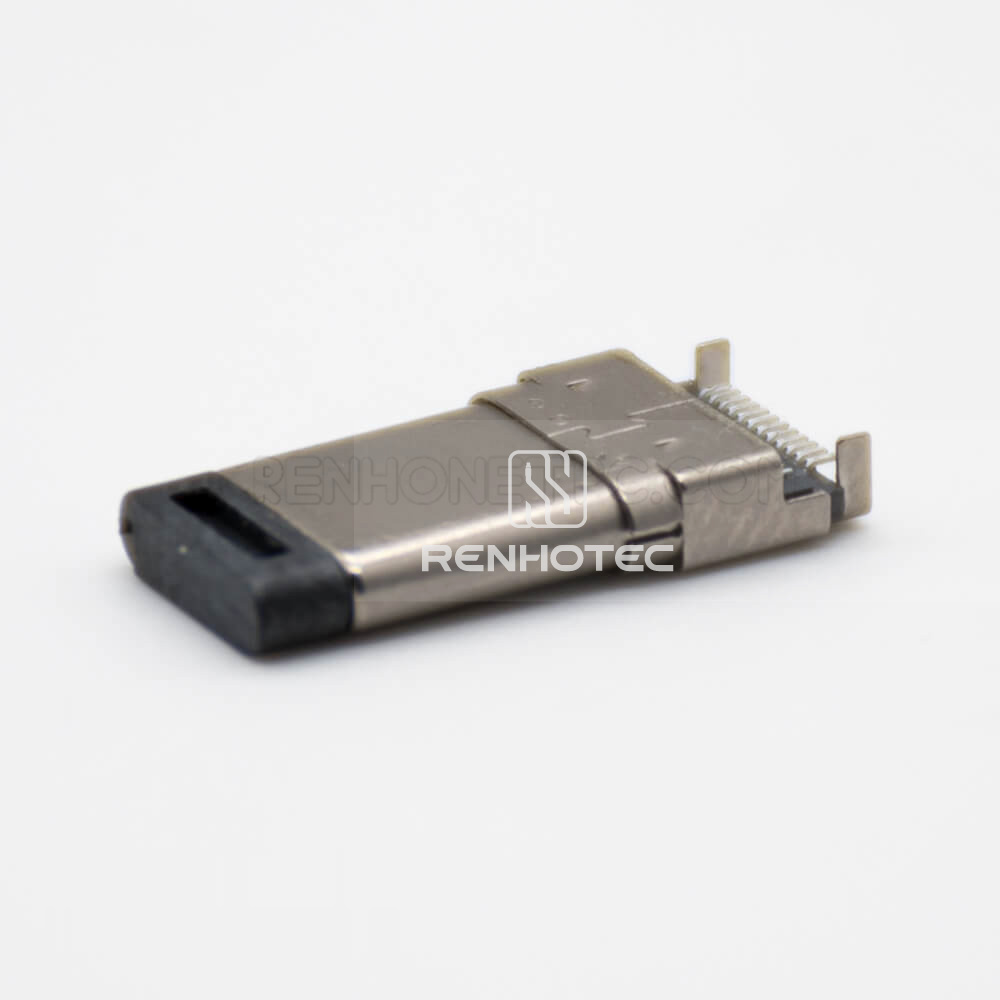

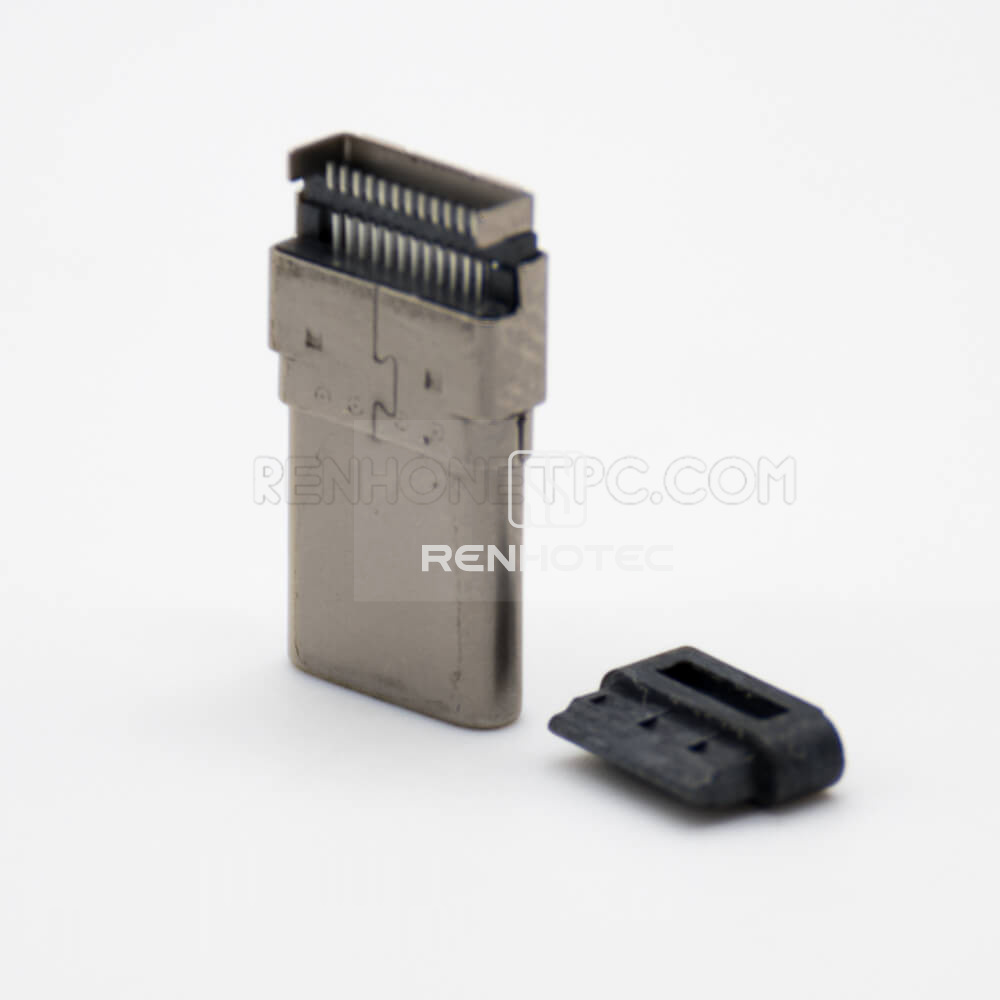

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

Public Part No. RHT-692-2030

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
Enlarge image
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT TypeUSB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

Key specifications

Connector Type
USB3.1 / Type C
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pin Count
24 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

USB Connector with 24 Pin, Male, Straight, Type C / USB3.1. Mounting: SMT.

Termination Type: Solder Type.

Plate-offset construction. Compare the plate and connector positions with the mechanical drawing.

Full Specifications

Mechanical

Connector Type
USB3.1 / Type C
Pin Count
24 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Construction detail
Plate Offset Type
Connection feature
Reversible plug and cable orientation

Environmental

Waterproof Rating
IP67
