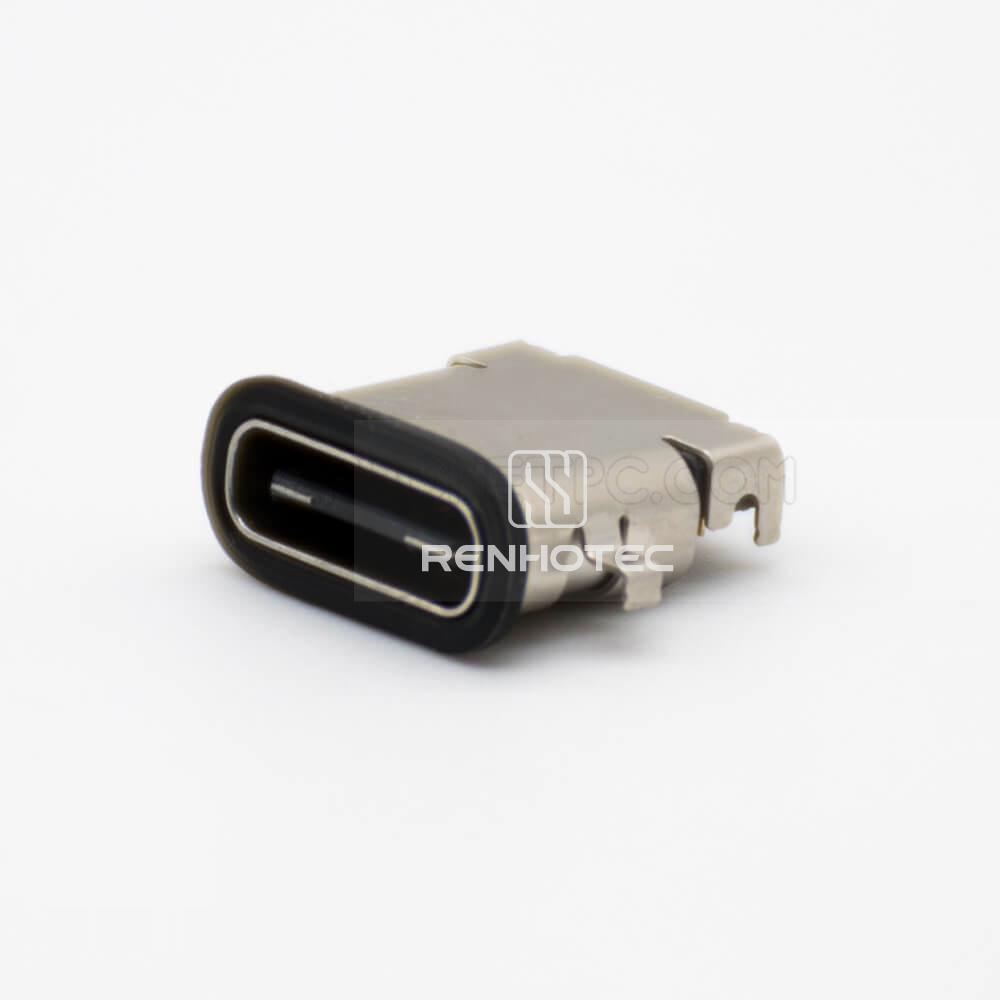

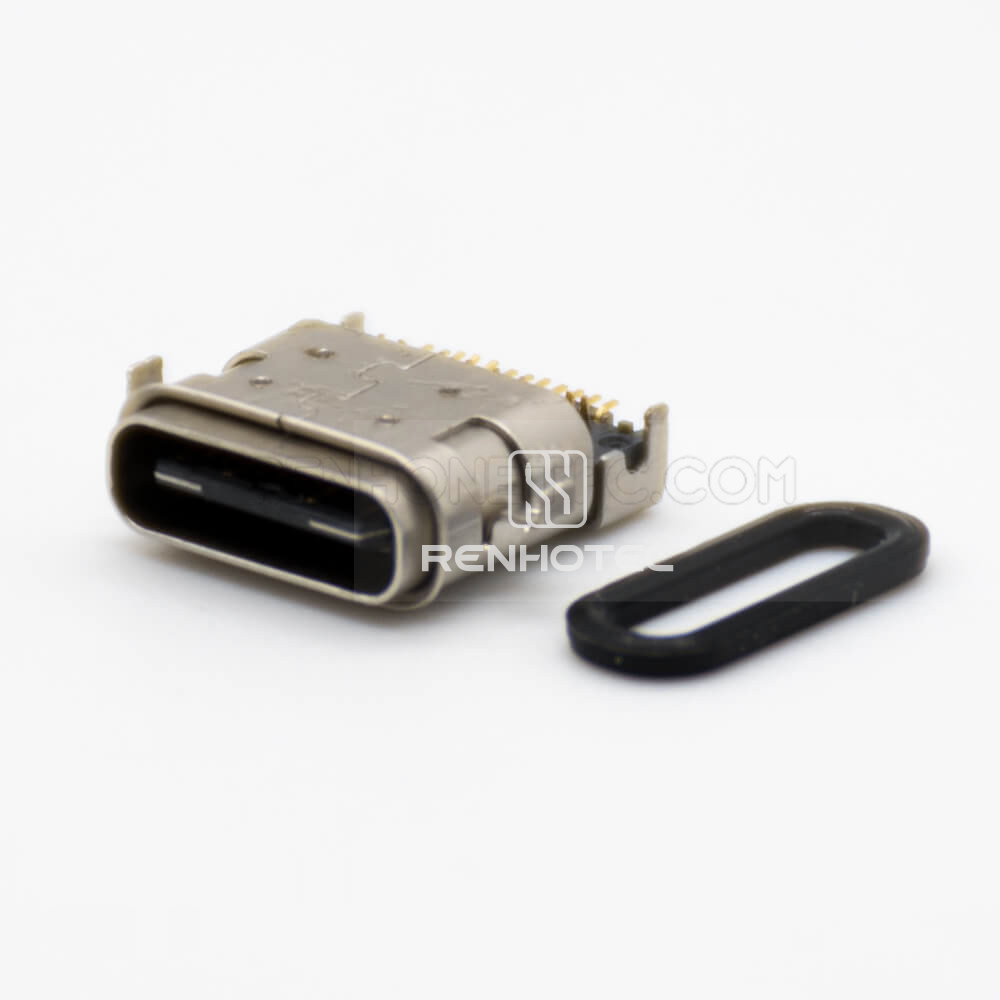

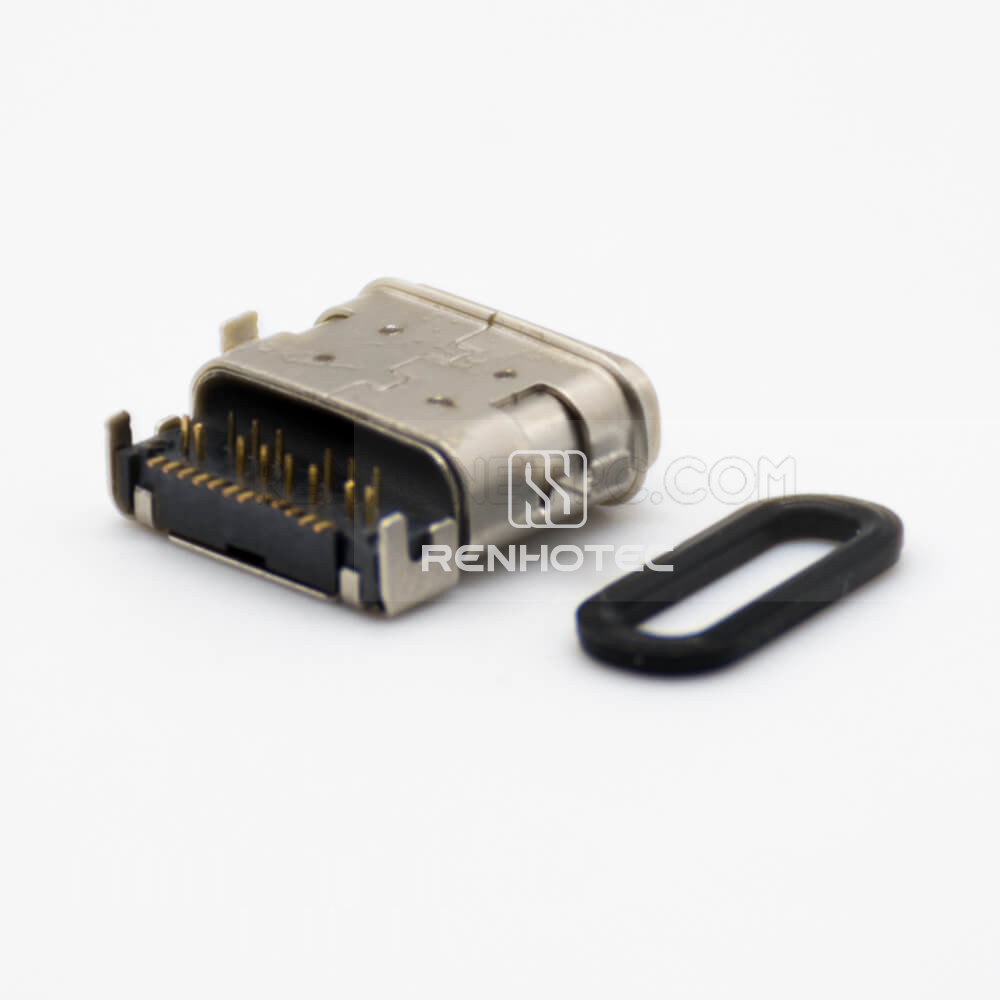

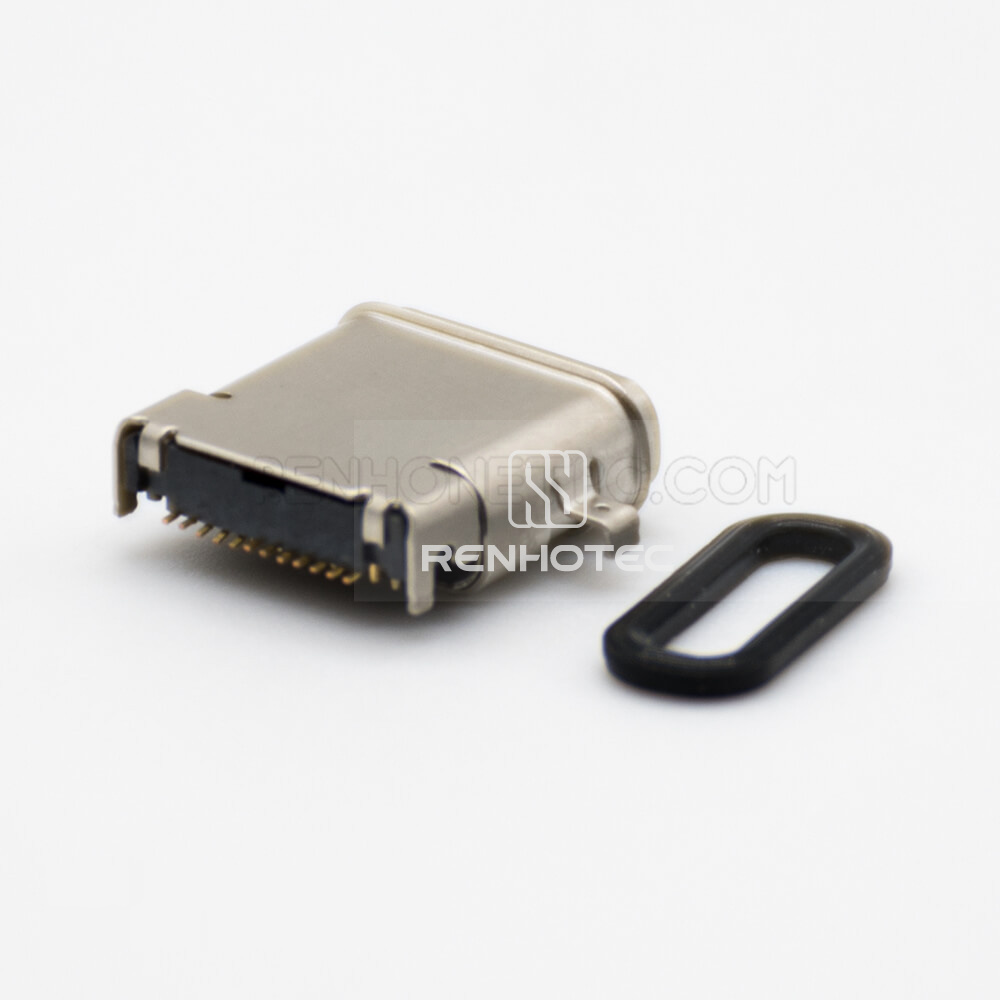

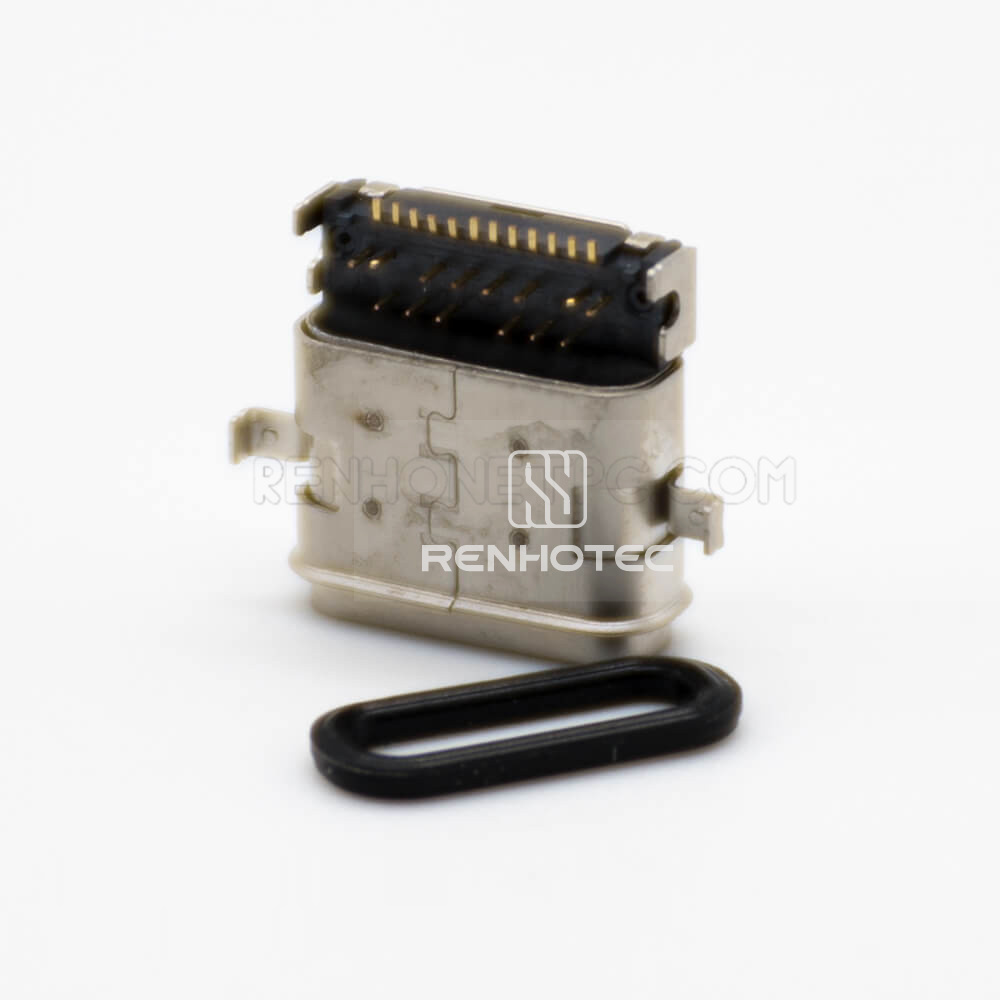

USB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin Waterproof

Public Part No. RHT-692-2029

USB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin Waterproof
Enlarge image
USB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin WaterproofUSB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin WaterproofUSB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin WaterproofUSB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin WaterproofUSB Type C Connector 3.1 Offset Type Female DIP SMT Type Straight 24 Pin Waterproof

Key specifications

Connector Type
USB3.1 / Type C
Gender
Female
Orientation
Straight
Mounting Type
DIP / SMT
Pin Count
24 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

USB Connector with 24 Pin, Female, Straight, Type C / USB3.1. Mounting: DIP, SMT.

Termination Type: Solder Type.

Offset construction. Compare the offset position with the mechanical drawing and available assembly space.

Full Specifications

Electrical

Current Rating
5A
Voltage Rating
5V AC
Contact Resistance
40 milliohms max
Insulation Resistance
100 megohms
Withstanding Voltage
100V AC

Mechanical

Connector Type
USB3.1 / Type C
Pin Count
24 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP / SMT
Termination Type
Solder Type
Construction detail
Offset Type
Connection feature
Reversible plug and cable orientation
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Waterproof Rating
IP67
Operating Temperature
-30 to 85 °C

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
