USB Connector

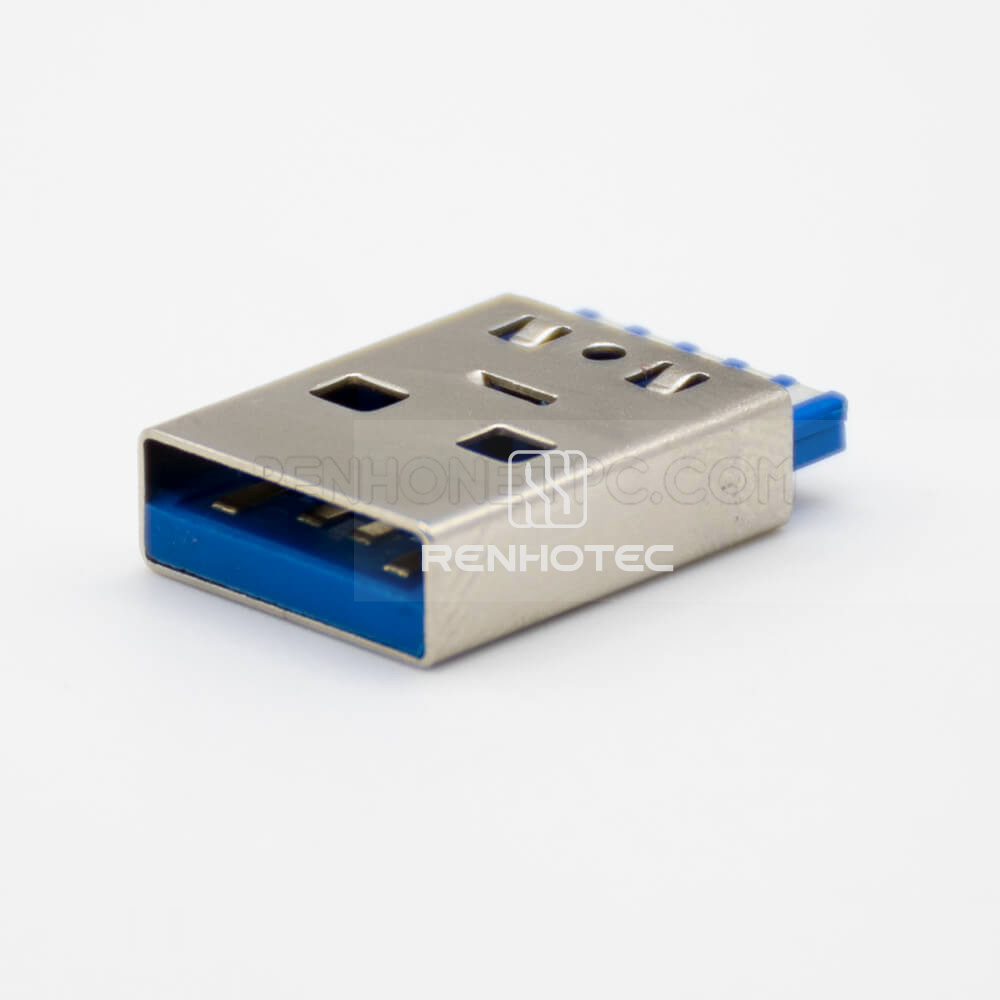

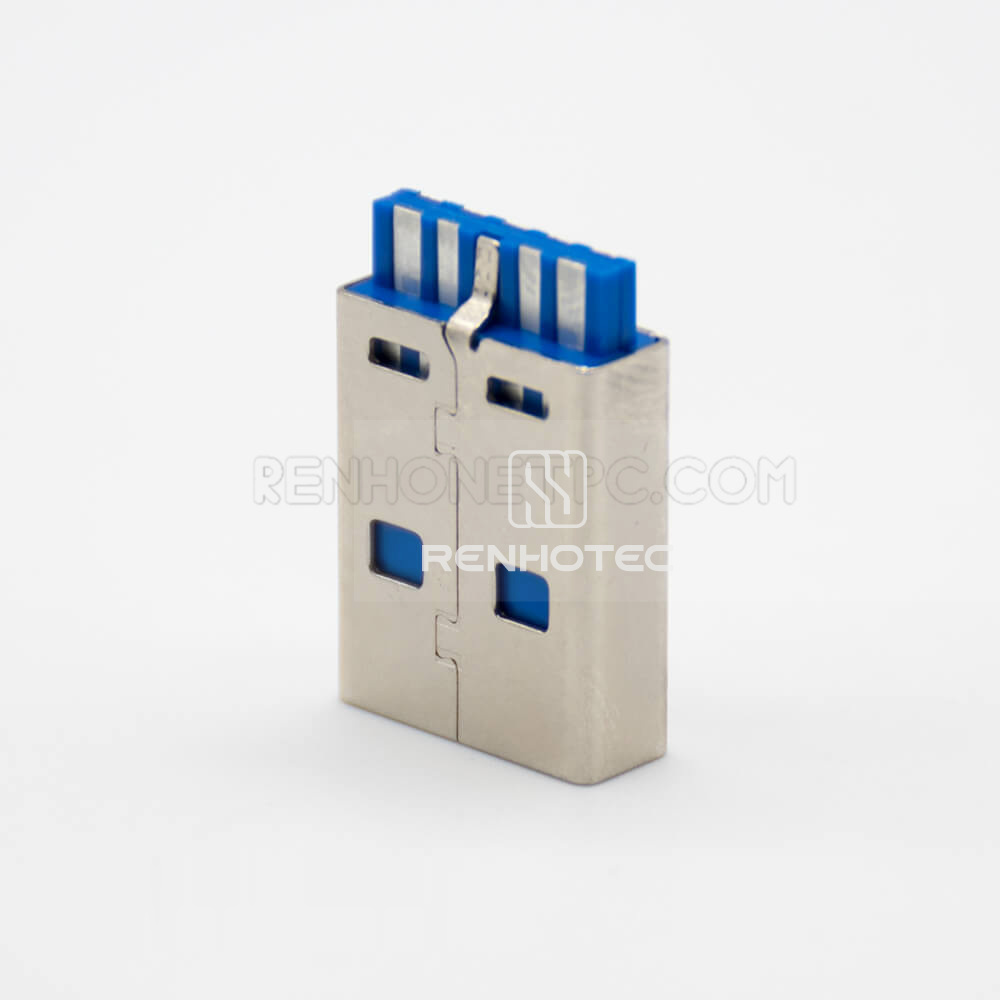

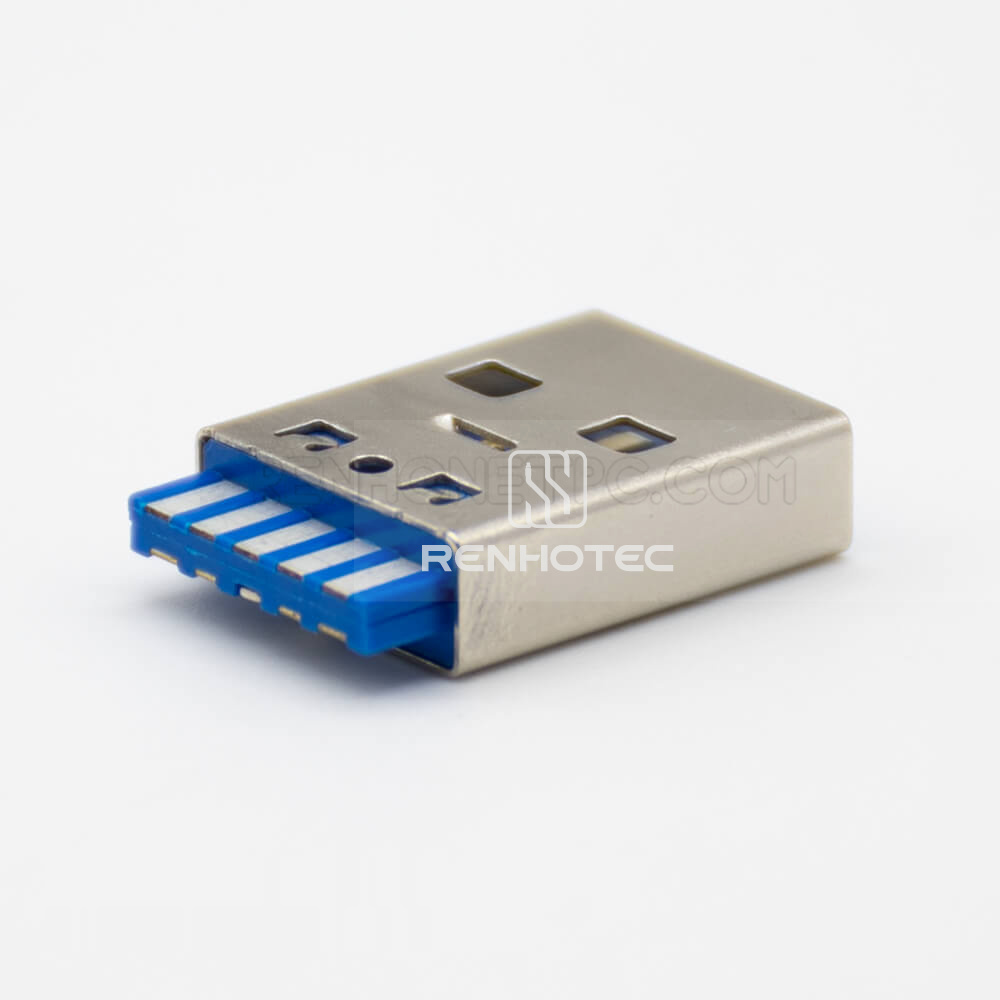

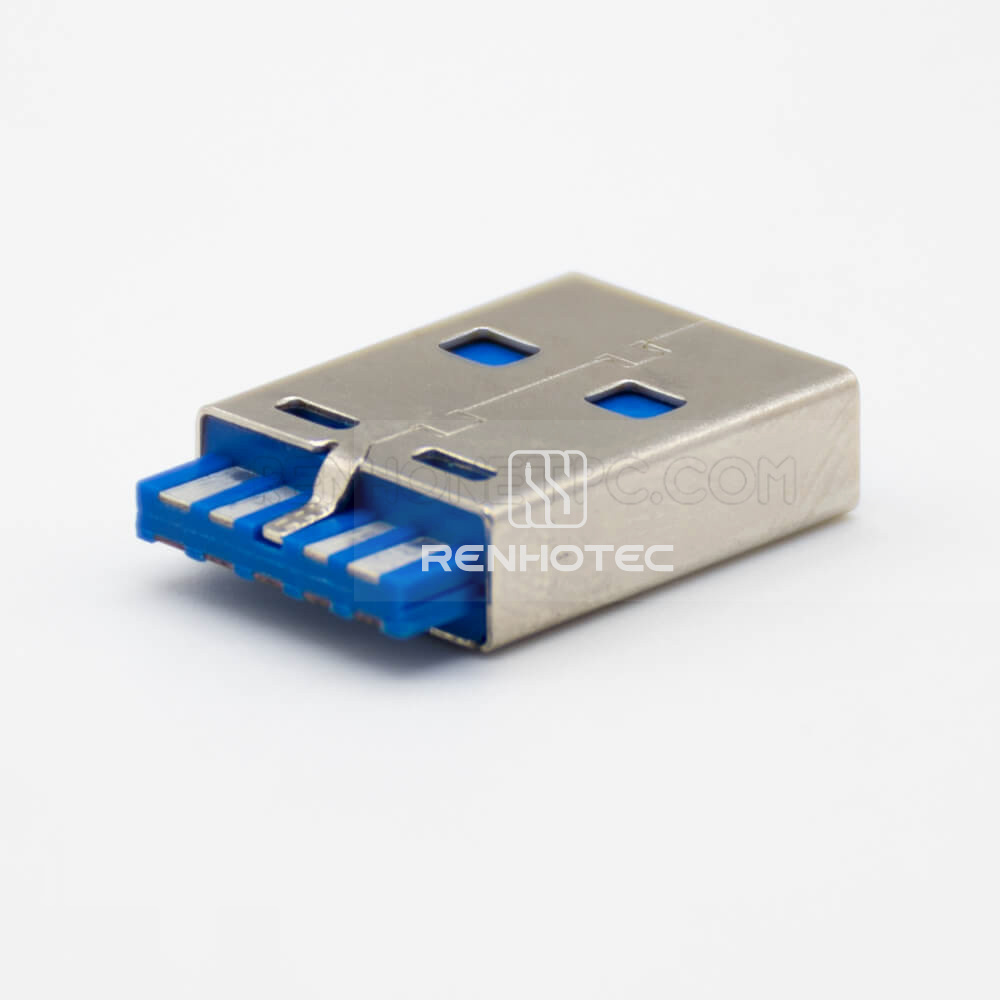

USB 3.0 Type A Male Connector Straight 9 Pin Solder Type

Public Part No. RHT-692-2028

USB 3.0 Type A Male Connector Straight 9 Pin Solder Type
Enlarge image
USB 3.0 Type A Male Connector Straight 9 Pin Solder TypeUSB 3.0 Type A Male Connector Straight 9 Pin Solder TypeUSB 3.0 Type A Male Connector Straight 9 Pin Solder TypeUSB 3.0 Type A Male Connector Straight 9 Pin Solder Type

Key specifications

Connector Type
USB3.0 / Type A
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pin Count
9 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

USB Connector with 9 Pin, Male, Straight, Type A / USB3.0. Mounting: SMT.

Termination Type: Solder Type. Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.0 / Type A
Pin Count
9 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Shielding
Shielded
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Waterproof Rating
IP67
Operating Temperature
-45 to 85 °C
