Type C USB Connector 24 Pin Male Straight SMT Type

Public Part No. RHT-692-2014

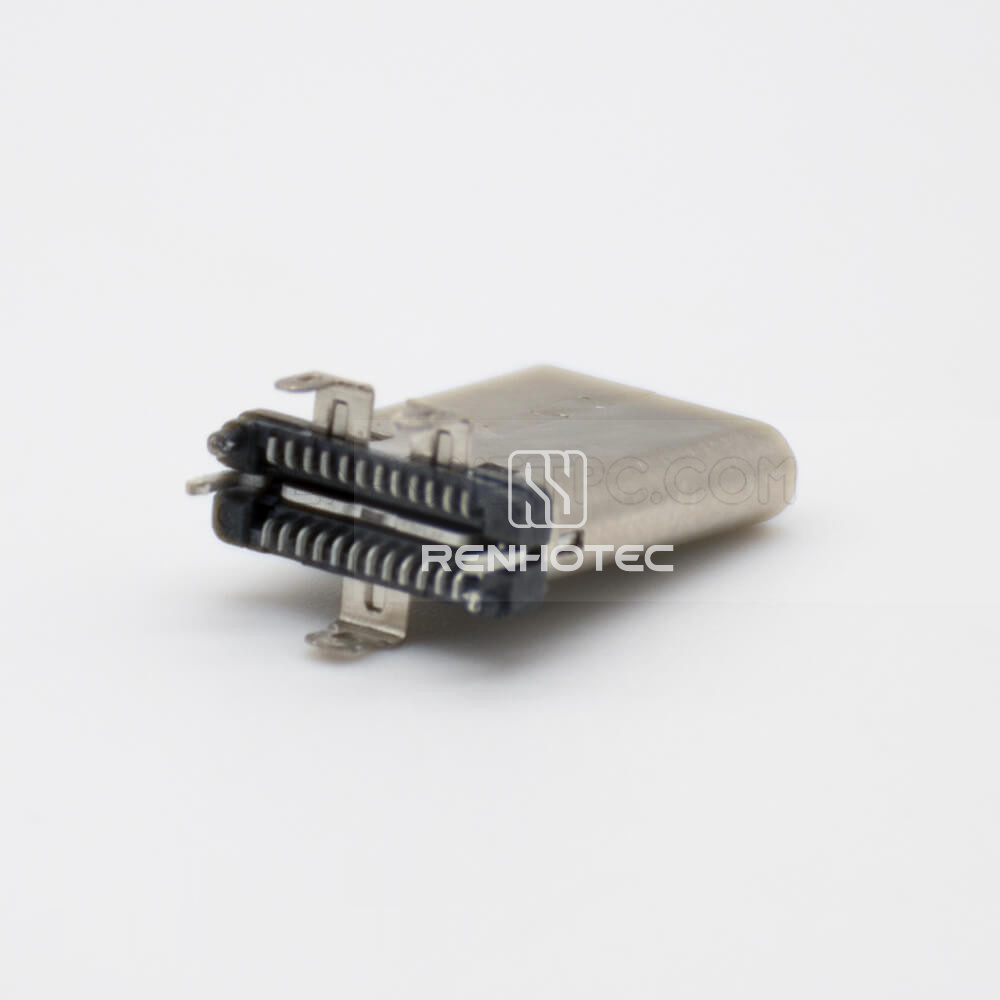

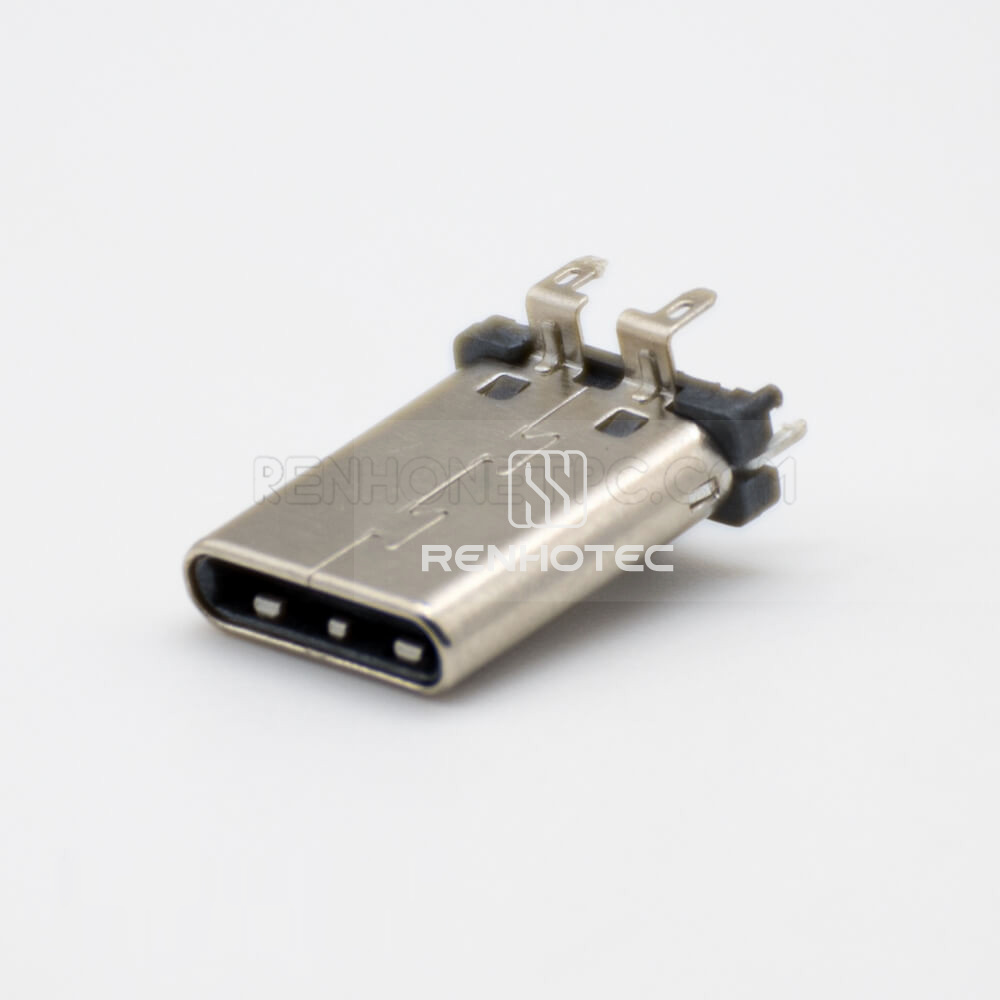

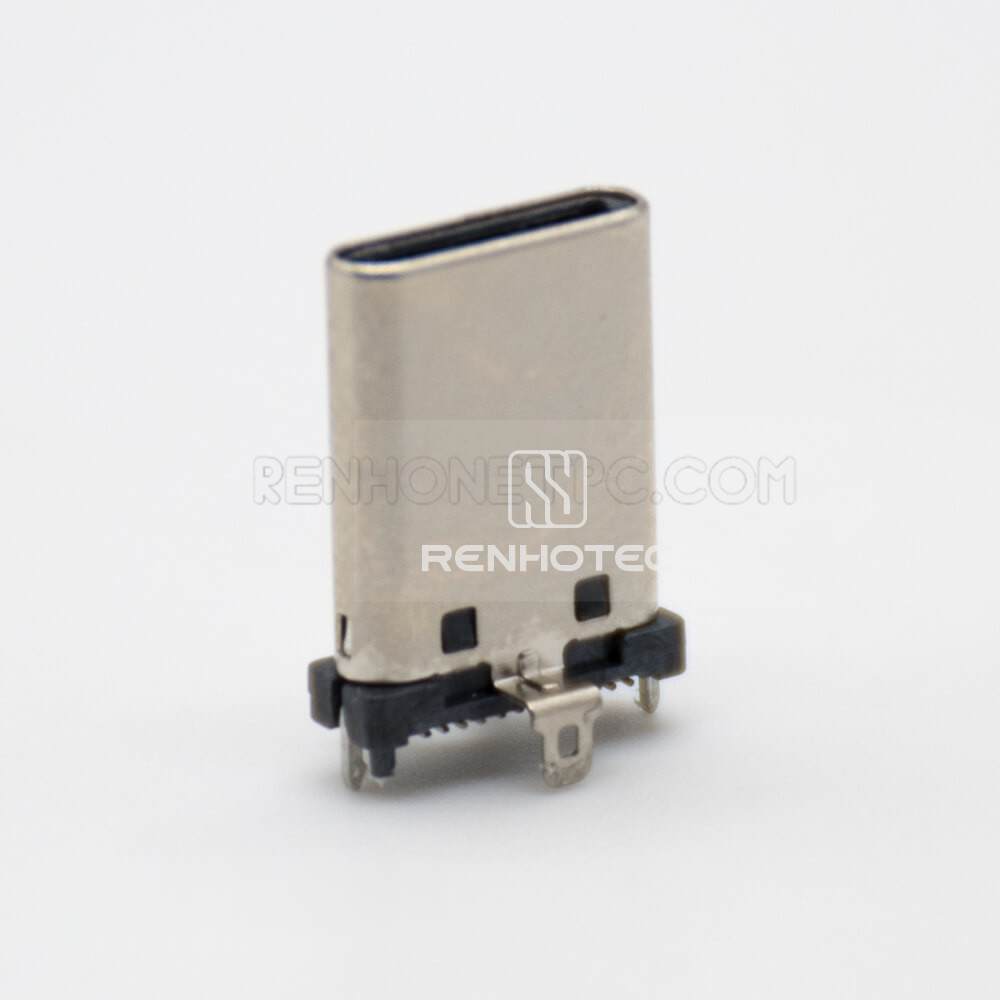

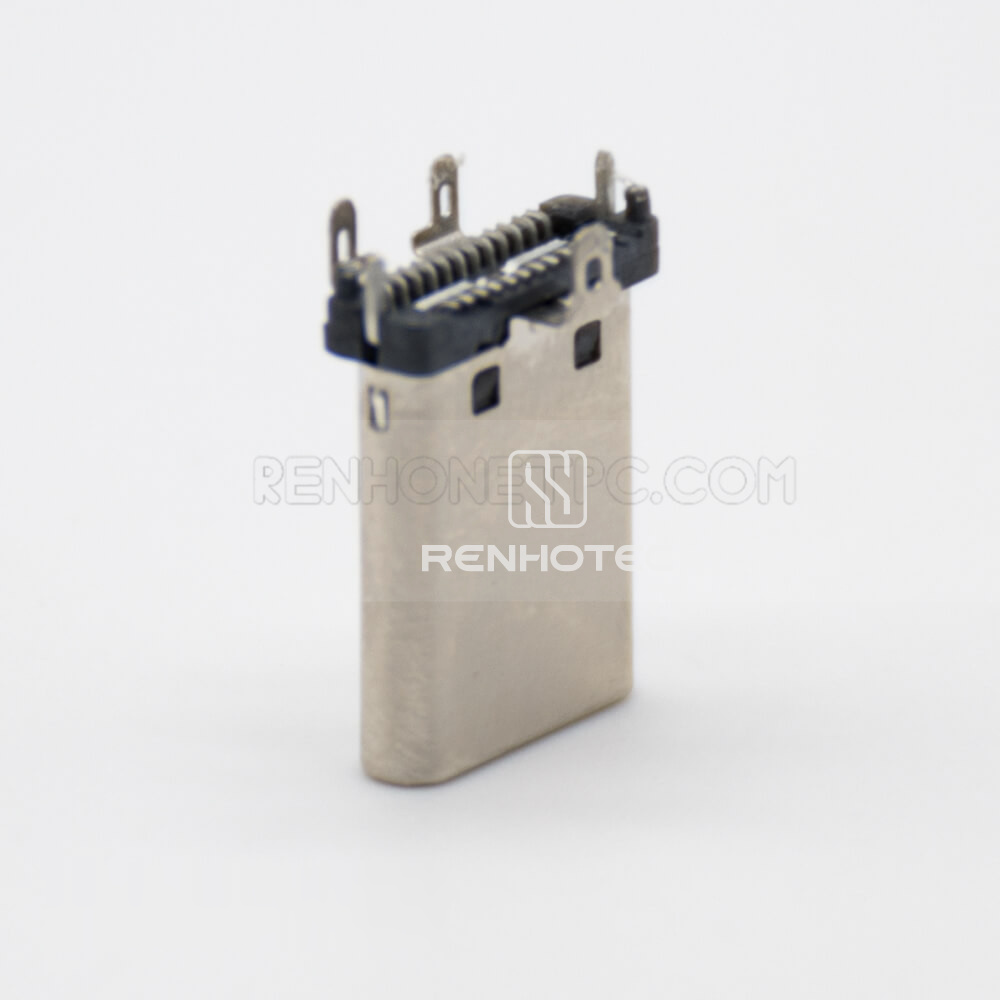

Type C USB Connector 24 Pin Male Straight SMT Type
Enlarge image
Type C USB Connector 24 Pin Male Straight SMT TypeType C USB Connector 24 Pin Male Straight SMT TypeType C USB Connector 24 Pin Male Straight SMT TypeType C USB Connector 24 Pin Male Straight SMT Type

Key specifications

Connector Type
USB3.1 / Type C
Gender
Male
Orientation
Straight
Mounting Type
SMT
Pin Count
24 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

USB Connector with 24 Pin, Male, Straight, Type C / USB3.1. Mounting: SMT.

Termination Type: Solder Type. Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.1 / Type C
Pin Count
24 Pin
Gender
Male
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Shielding
Shielded
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Waterproof Rating
IP67
Operating Temperature
-45 to 85 °C
