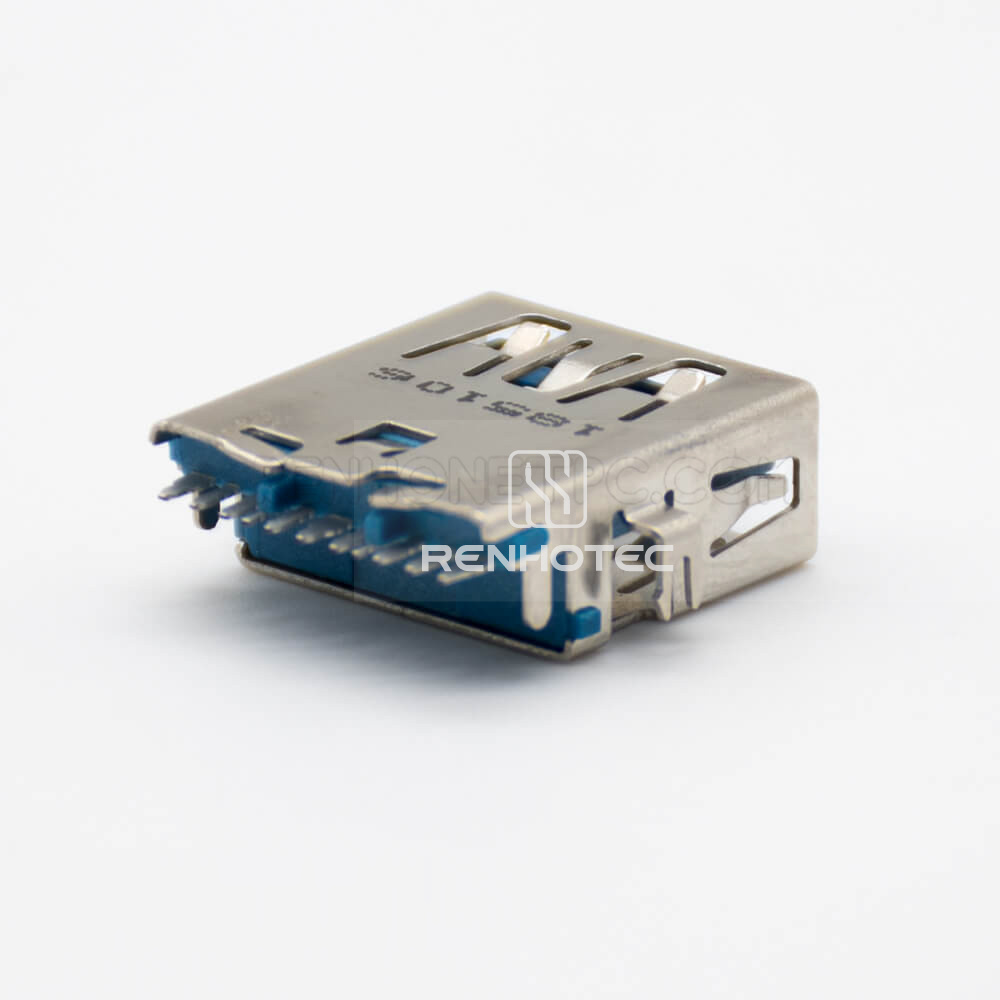

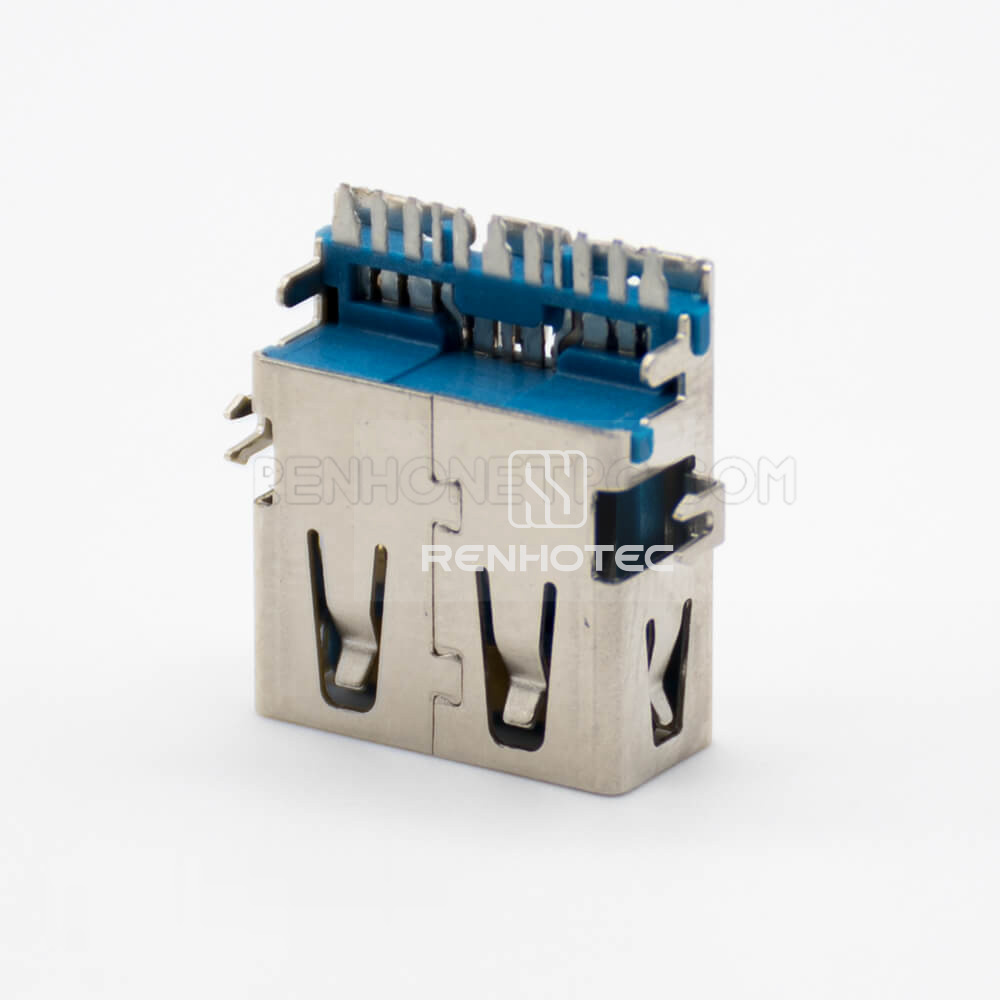

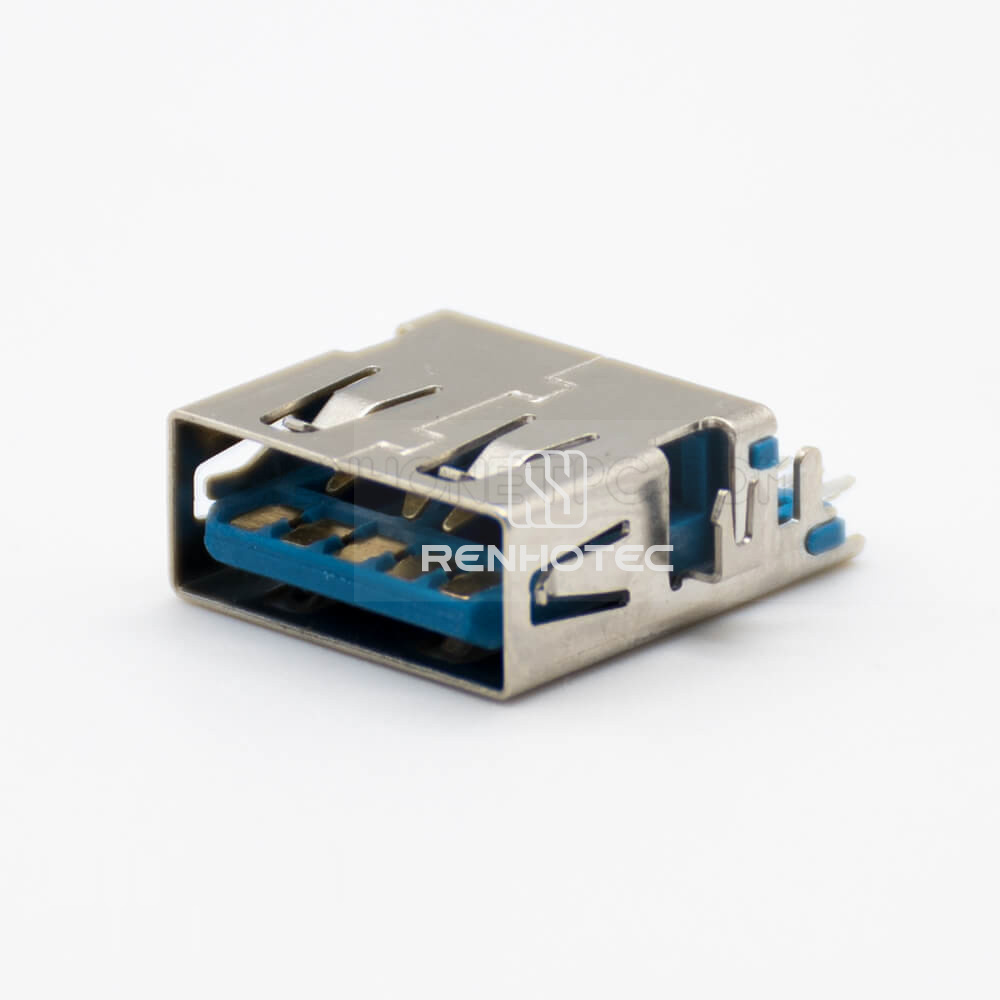

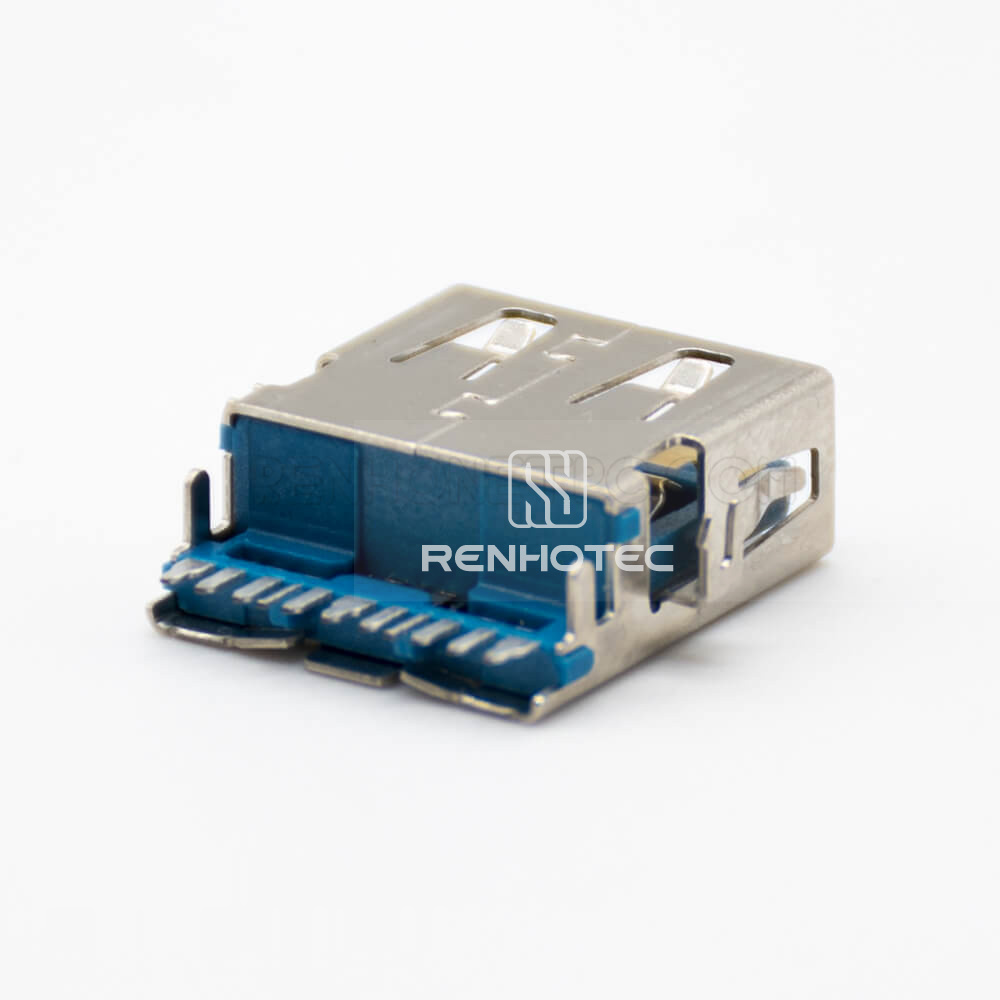

USB 3.0 A Connector Straight 9 Pin Female Offset Type Panel Mount

Public Part No. RHT-692-2012

USB 3.0 A Connector Straight 9 Pin Female Offset Type Panel Mount
Enlarge image
USB 3.0 A Connector Straight 9 Pin Female Offset Type Panel MountUSB 3.0 A Connector Straight 9 Pin Female Offset Type Panel MountUSB 3.0 A Connector Straight 9 Pin Female Offset Type Panel MountUSB 3.0 A Connector Straight 9 Pin Female Offset Type Panel Mount

Key specifications

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount
Pin Count
9 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Overview

USB Connector with 9 Pin, Female, Straight, Type A / USB3.0. Mounting: Panel Mount.

Termination Type: Solder Type. Shielding: Shielded.

Offset construction. Compare the offset position with the mechanical drawing and available assembly space.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.0 / Type A
Pin Count
9 Pin
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount
Termination Type
Solder Type
Shielding
Shielded
Construction detail
Offset Type
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Waterproof Rating
IP67
Operating Temperature
-45 to 85 °C

Connector requirement

Request a quote
