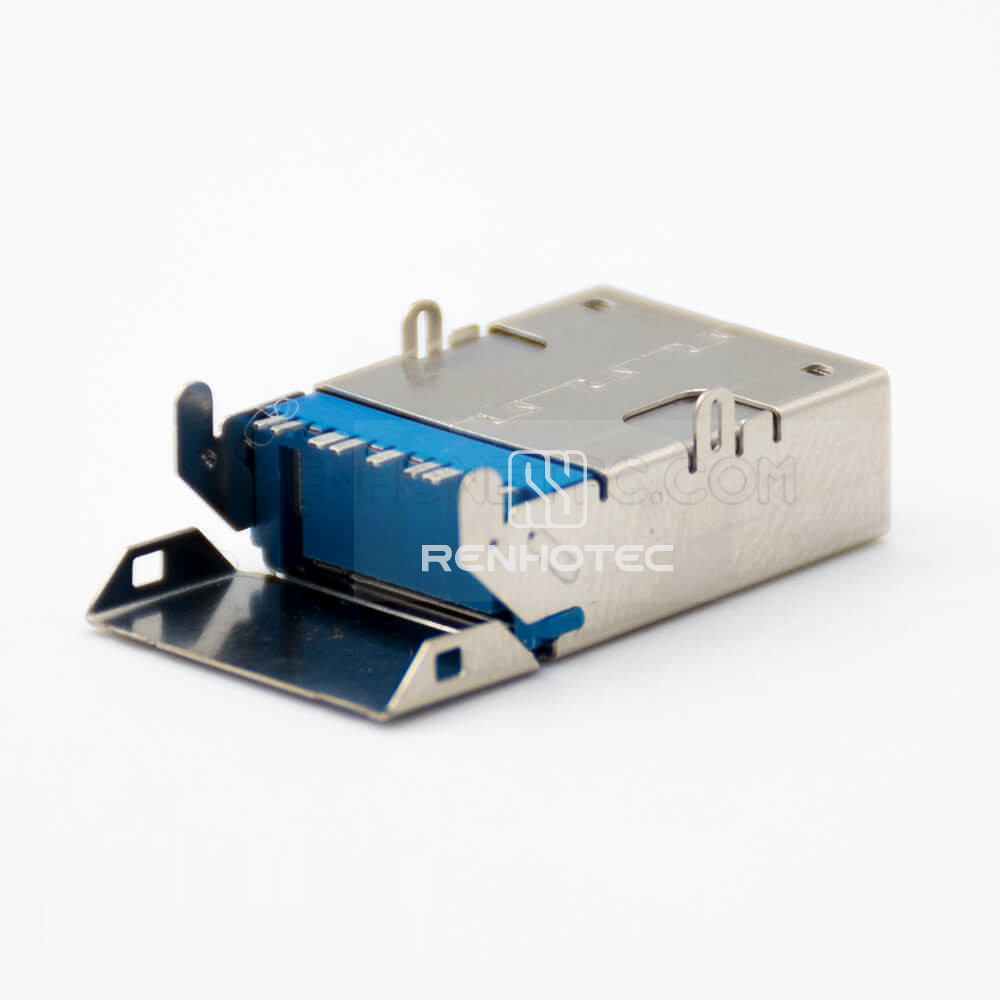

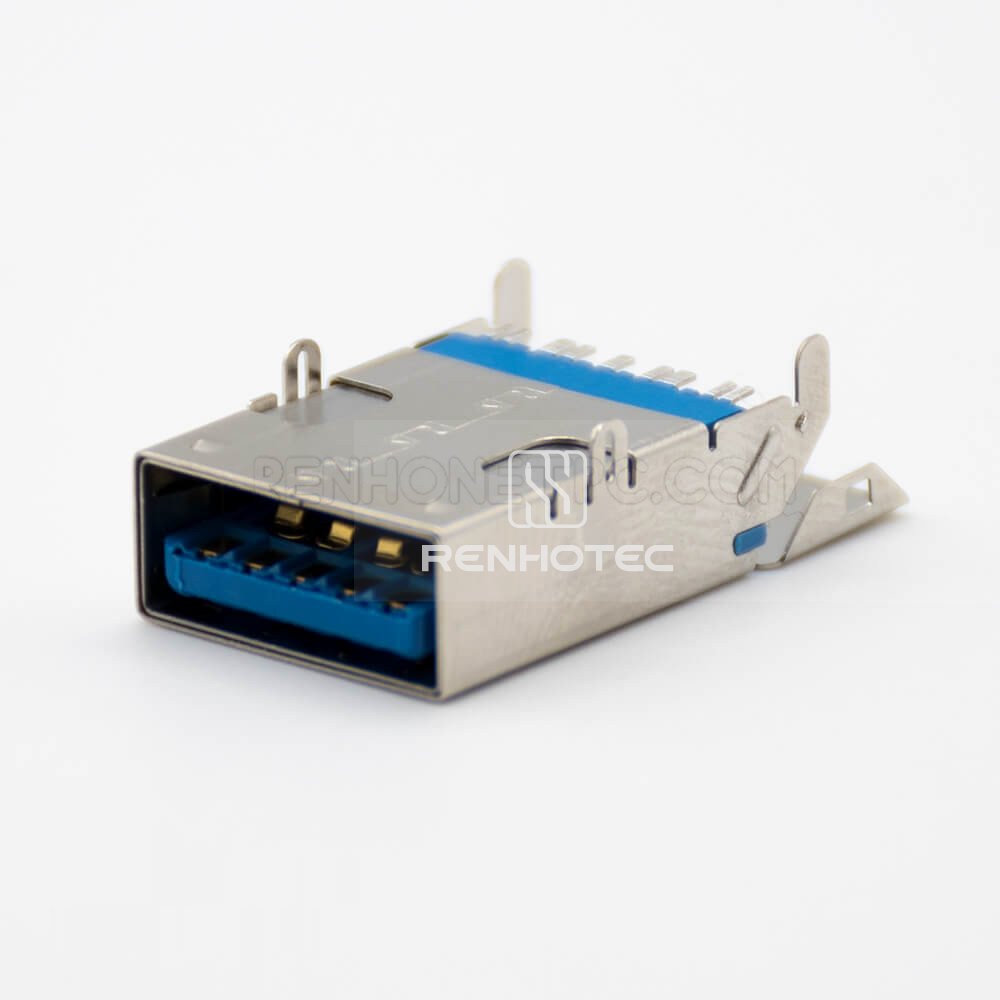

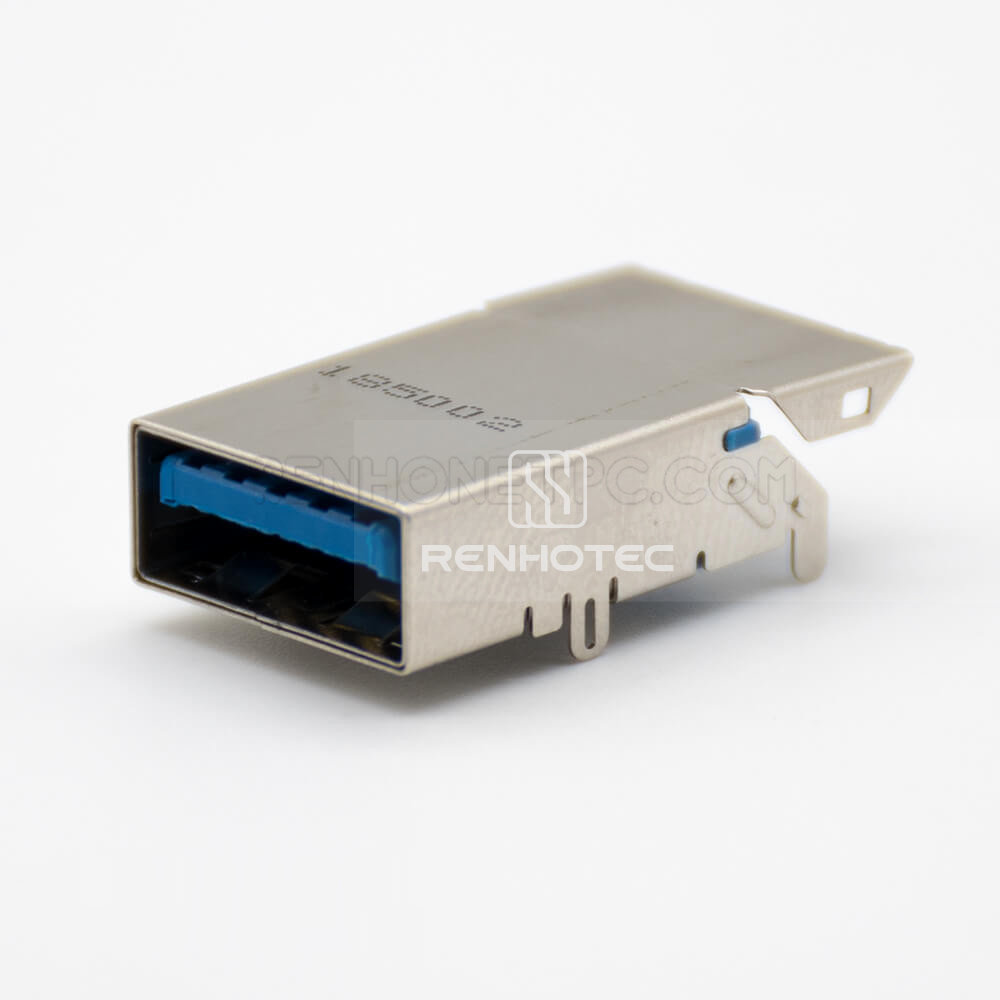

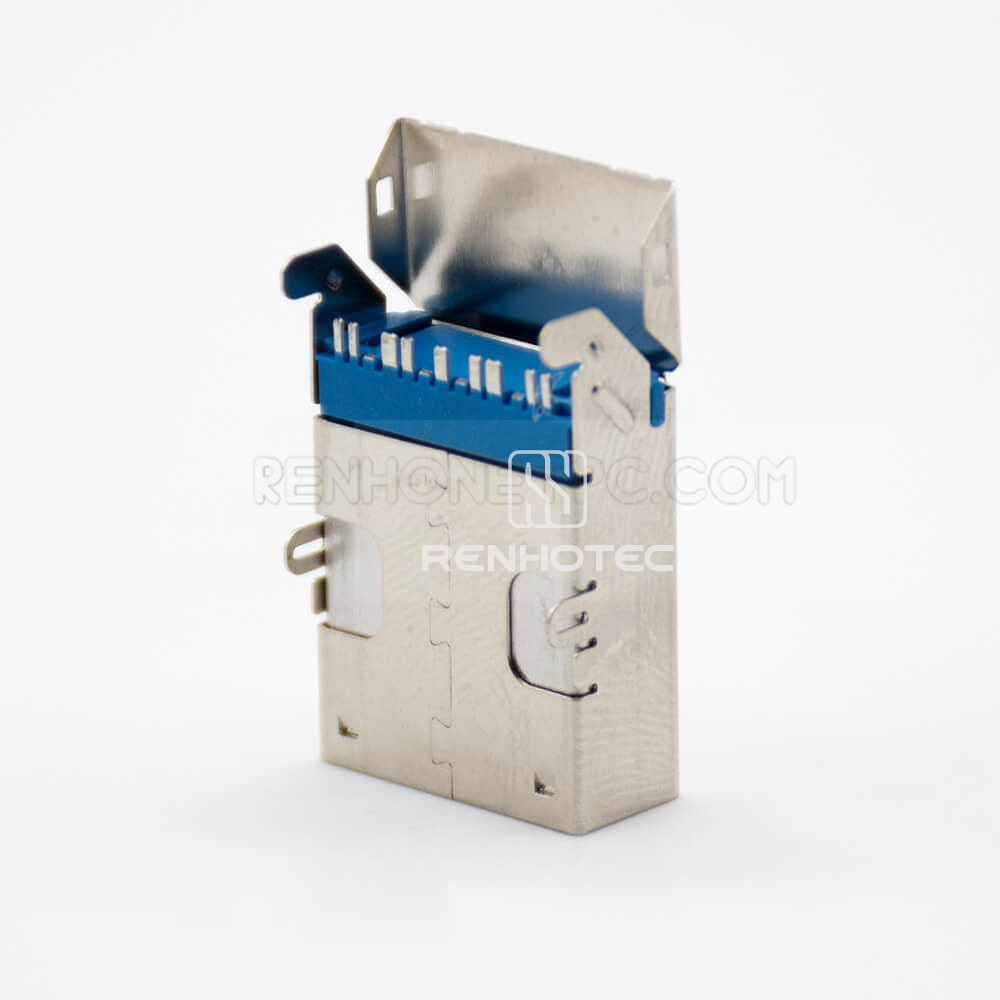

9-Pin USB 3.0 Female Connector, Right Angle

Public Part No. RHT-692-2007

9-Pin USB 3.0 Female Connector, Right Angle
Enlarge image
9-Pin USB 3.0 Female Connector, Right Angle9-Pin USB 3.0 Female Connector, Right Angle9-Pin USB 3.0 Female Connector, Right Angle9-Pin USB 3.0 Female Connector, Right Angle

Key specifications

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / SMT
Pin Count
9 Pin
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.0 / Type A
Pin Count
9 Pin
Gender
Female
Mounting Type
DIP / SMT
Termination Type
Solder Type
Shielding
Shielded
Orientation
Right Angle
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Operating Temperature
-45 to 85 °C
