USB Connector

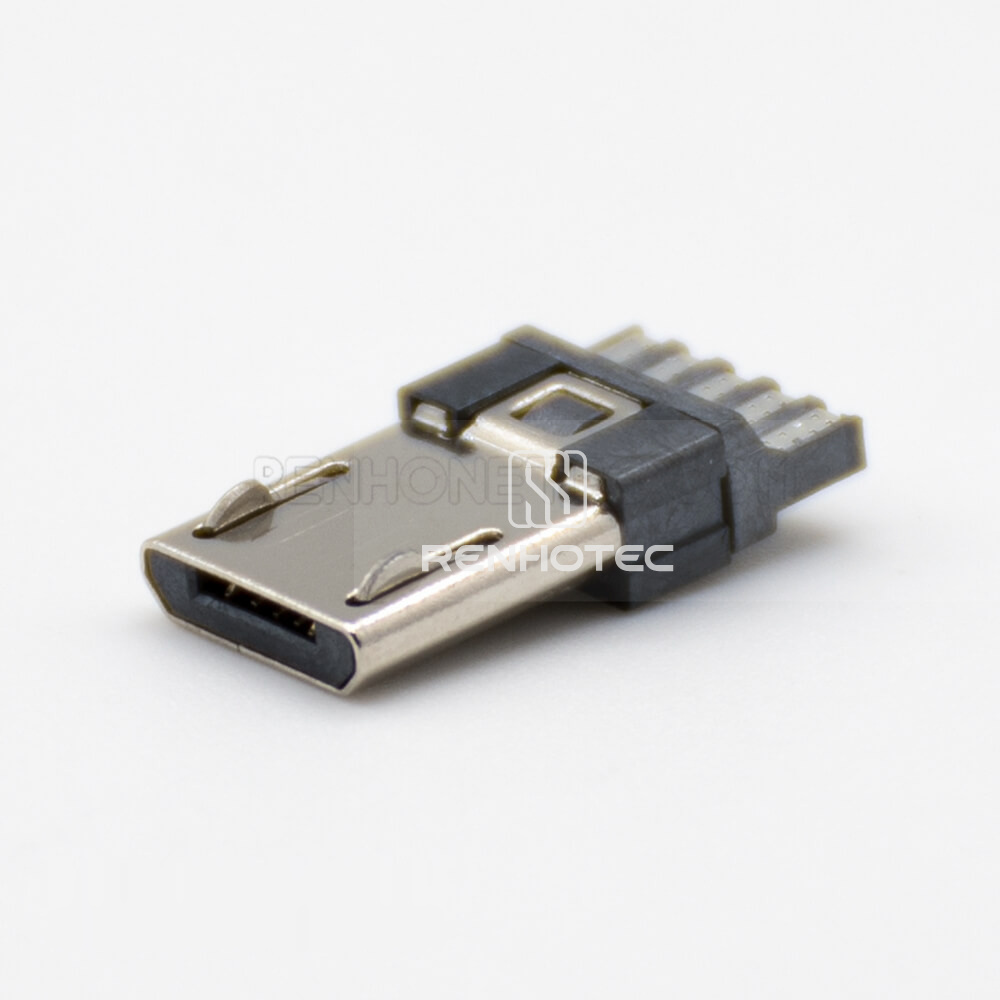

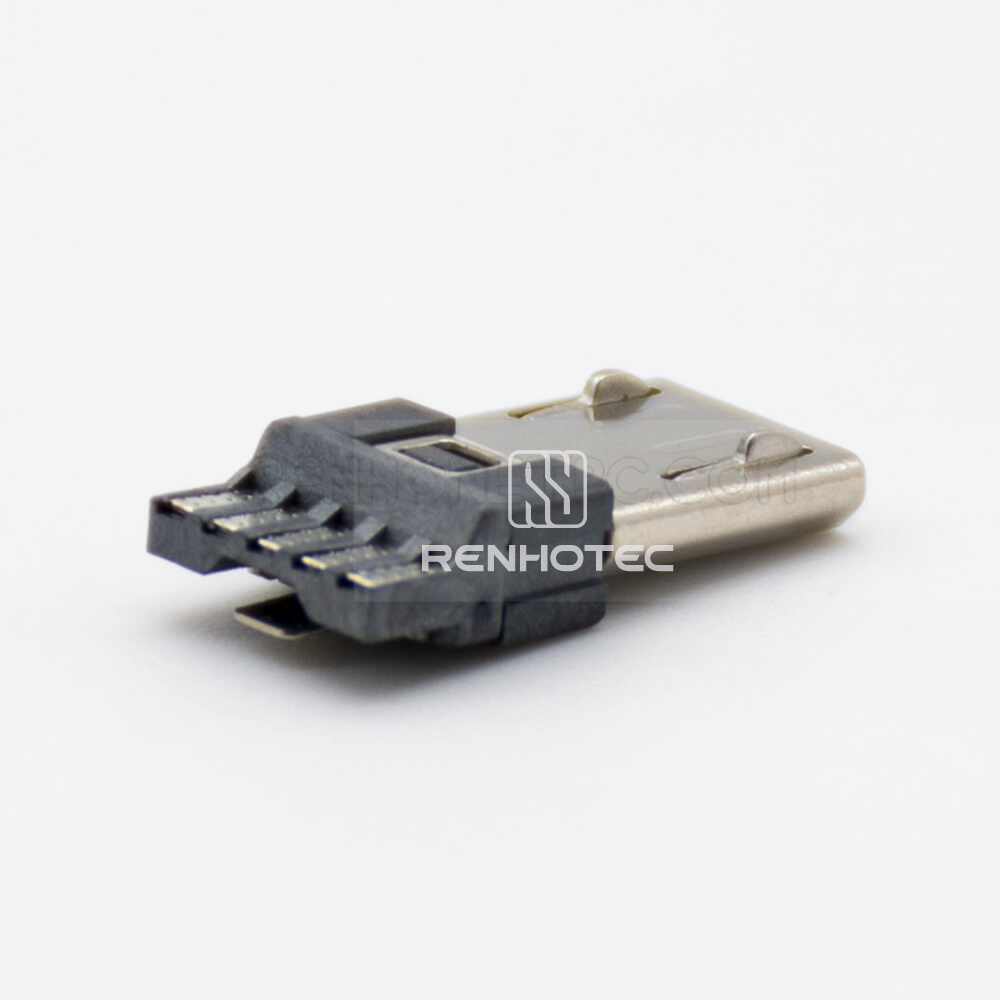

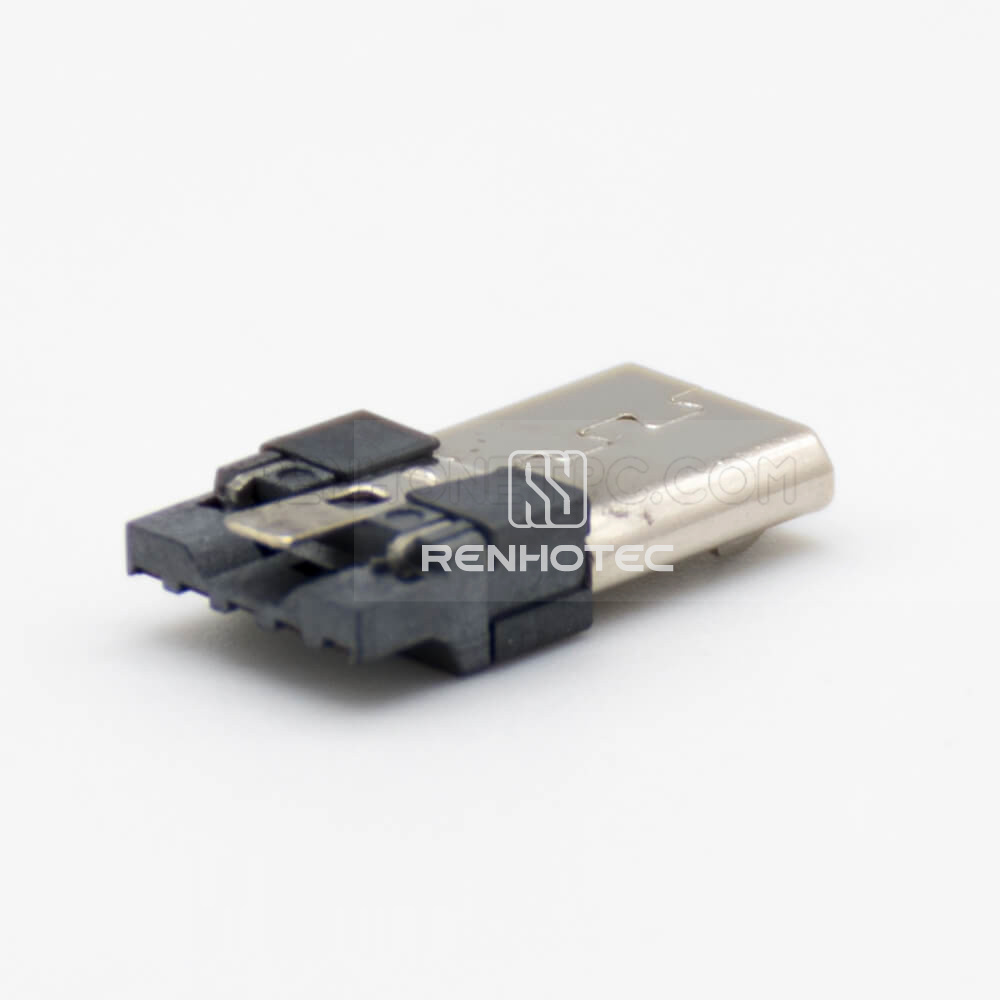

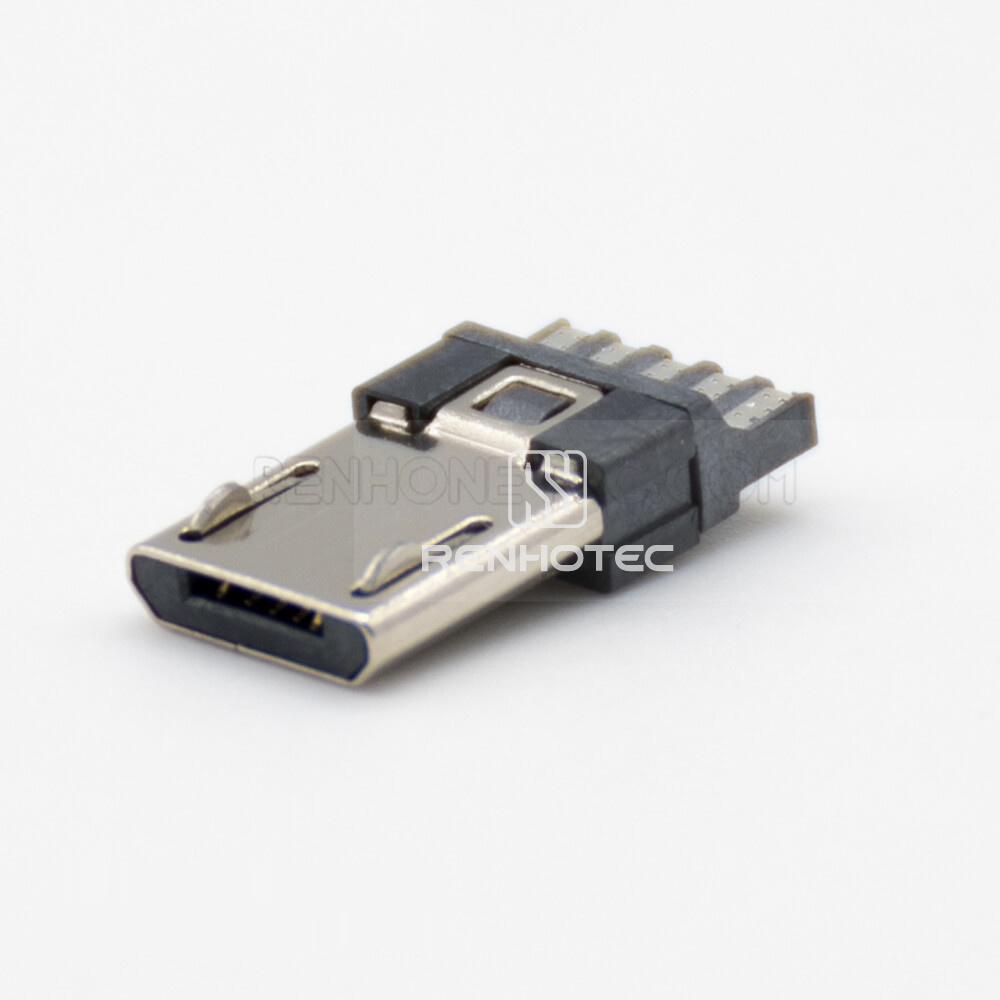

Micro USB b male connector
USB Connector with Male, Micro USB.
- Connector TypeMicro USB
- GenderMale
- Current Rating1A max.
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1A max.
- Voltage Rating
- 100V AC RMS
- Contact Resistance
- 10 milliohms max
- Insulation Resistance
- 1000M ΩMin
- Dielectric Withstanding Voltage
- 500 V DC/1min
Connection
- Connector Type
- Micro USB
Mechanical
- Gender
- Male
- Shielding
- Shielded
- Durability
- 10,000 cycles
- Mating force
- 35N max
- Unmating Force
- 10N
Environmental
- Operating Temperature
- -55 to 85 °C
Before you specify
Selection guide
USB Connector with Male, Micro USB.
Shielding: Shielded.
RHT-692-2005
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Micro USB b male connector- Product family
- USB Connector
- Public Part No.
- RHT-692-2005
