USB Connector

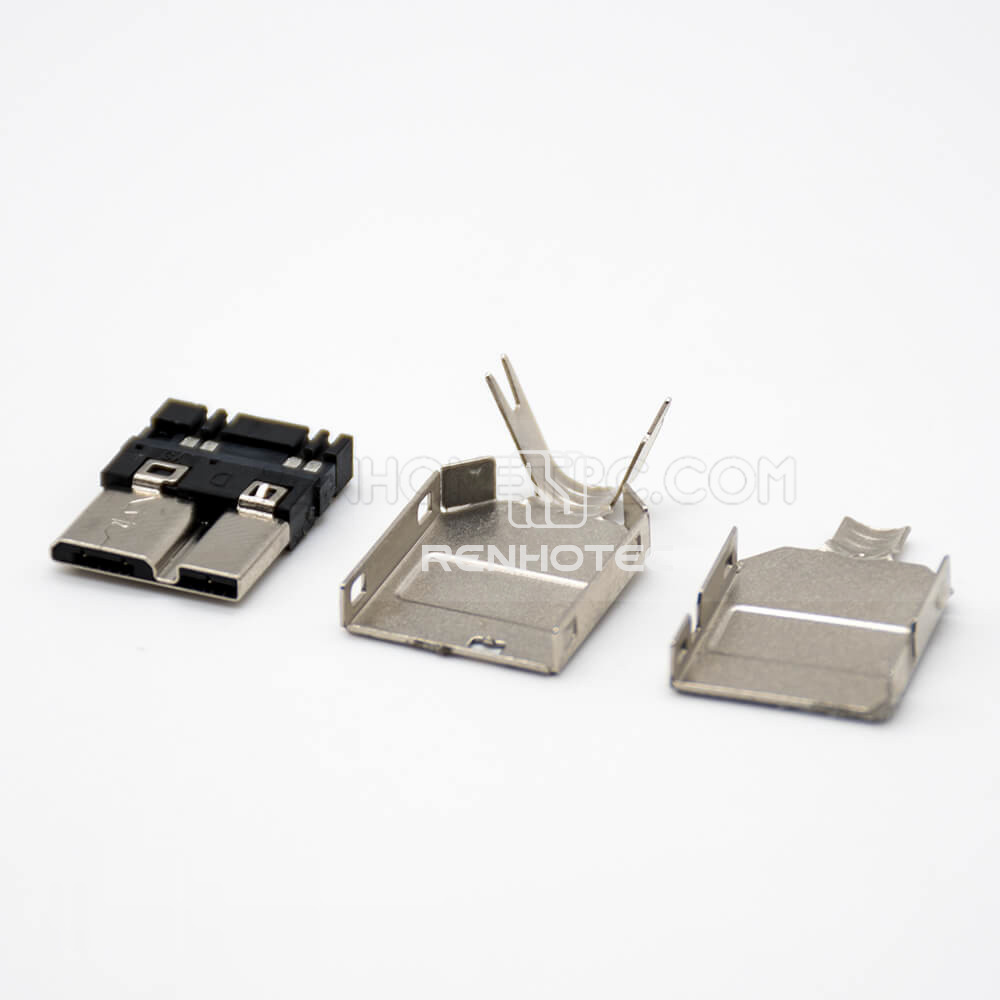

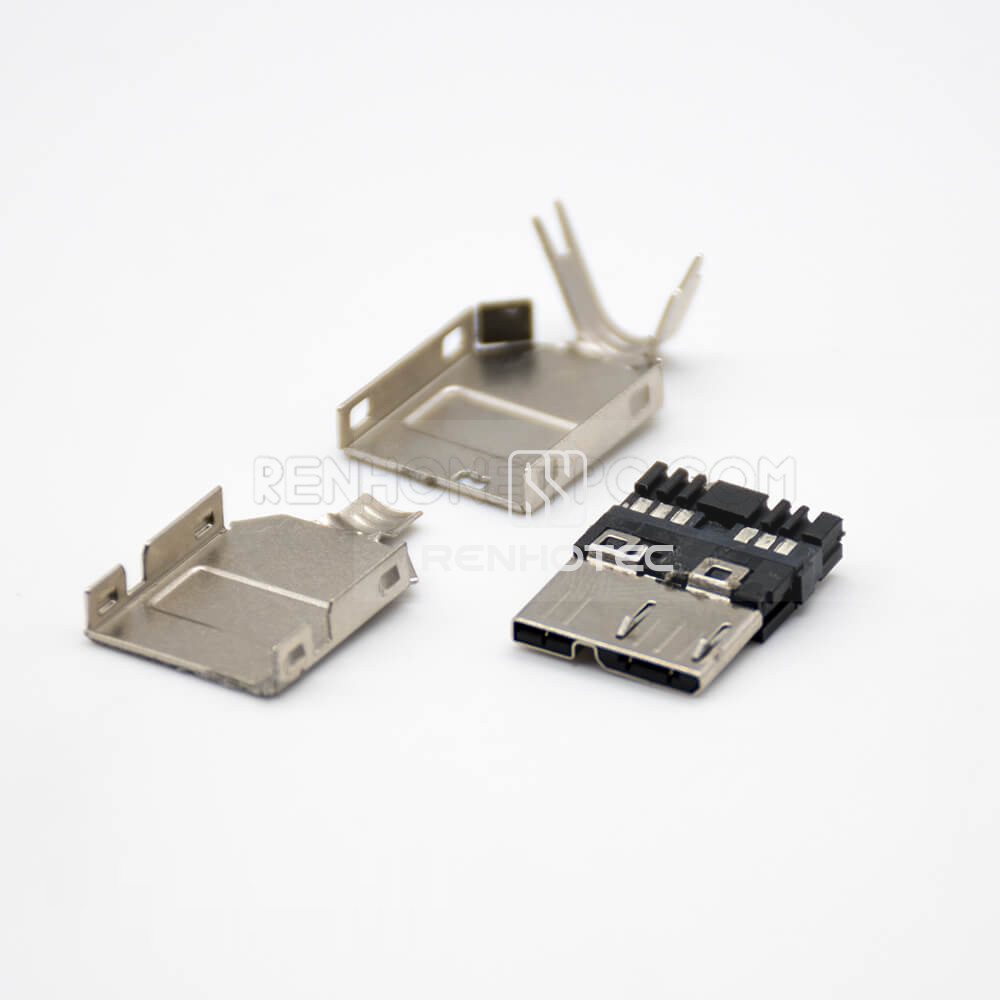

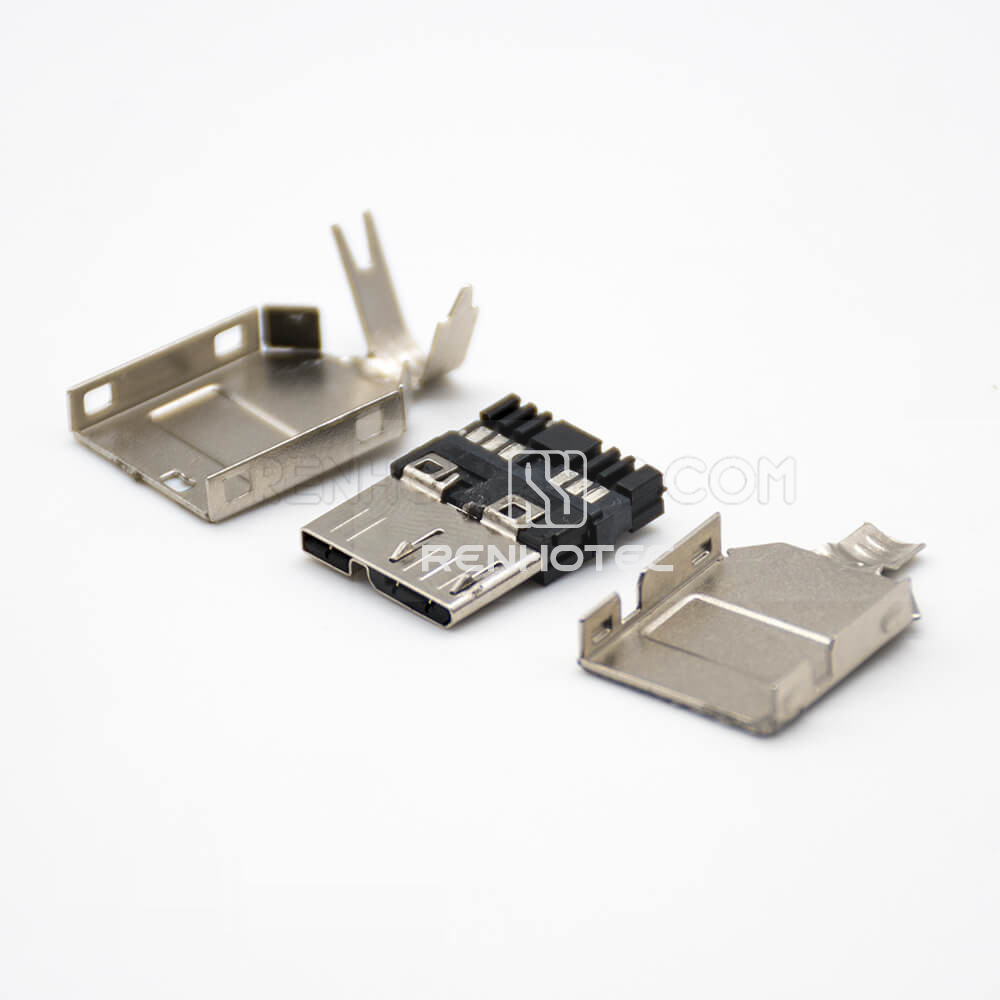

Male Micro USB Connector

Public Part No. RHT-692-2004

Male Micro USB Connector
Enlarge image
Male Micro USB ConnectorMale Micro USB ConnectorMale Micro USB Connector

Key specifications

Connector Type
Micro USB
Gender
Male
Request QuoteFull specifications

Overview

USB Connector with Male, Micro USB.

Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
100V AC RMS
Contact Resistance
10 milliohms max
Insulation Resistance
1000M ΩMin
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Micro USB
Gender
Male
Shielding
Shielded
Durability
10,000 cycles
Mating force
35N max
Unmating Force
10N

Environmental

Operating Temperature
-55 to 85 °C
