USB Connector

Micro USB Female USB 3.0 Connector PCB Mount

Public Part No. RHT-692-2003

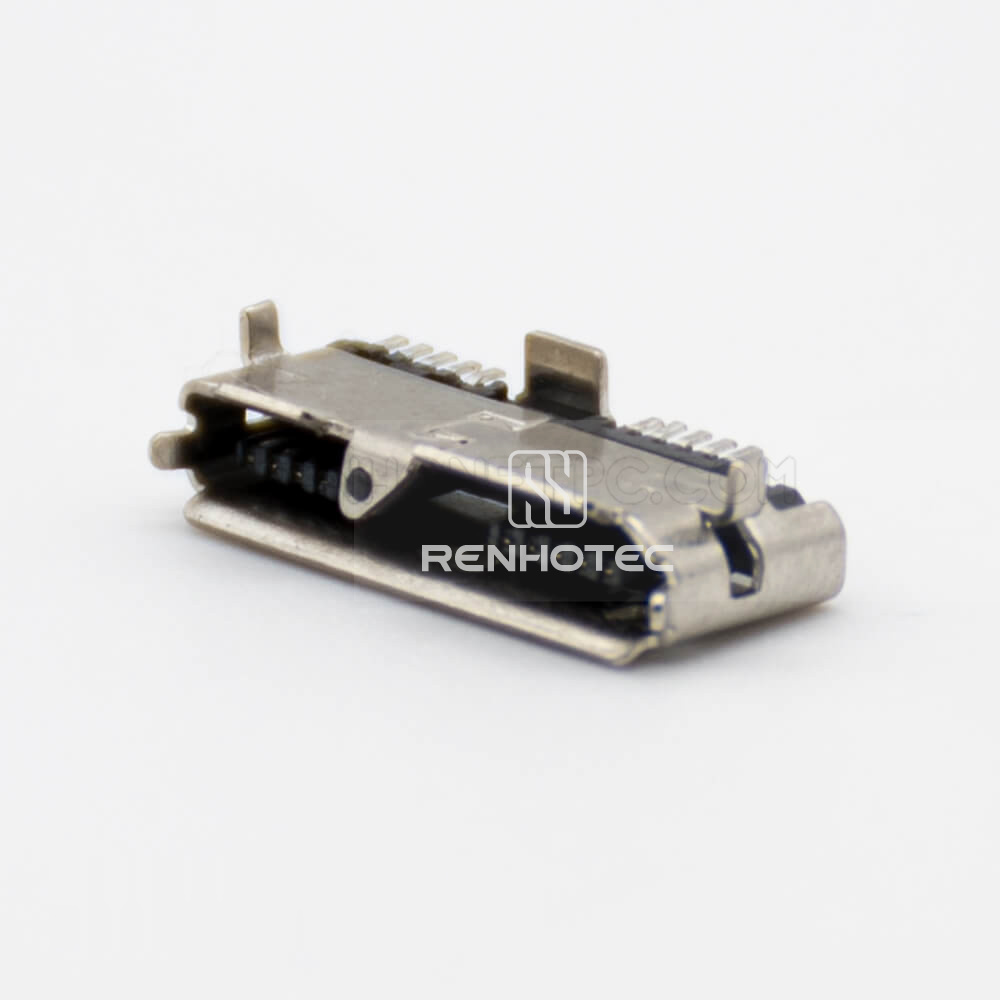

Micro USB Female USB 3.0 Connector PCB Mount
Enlarge image

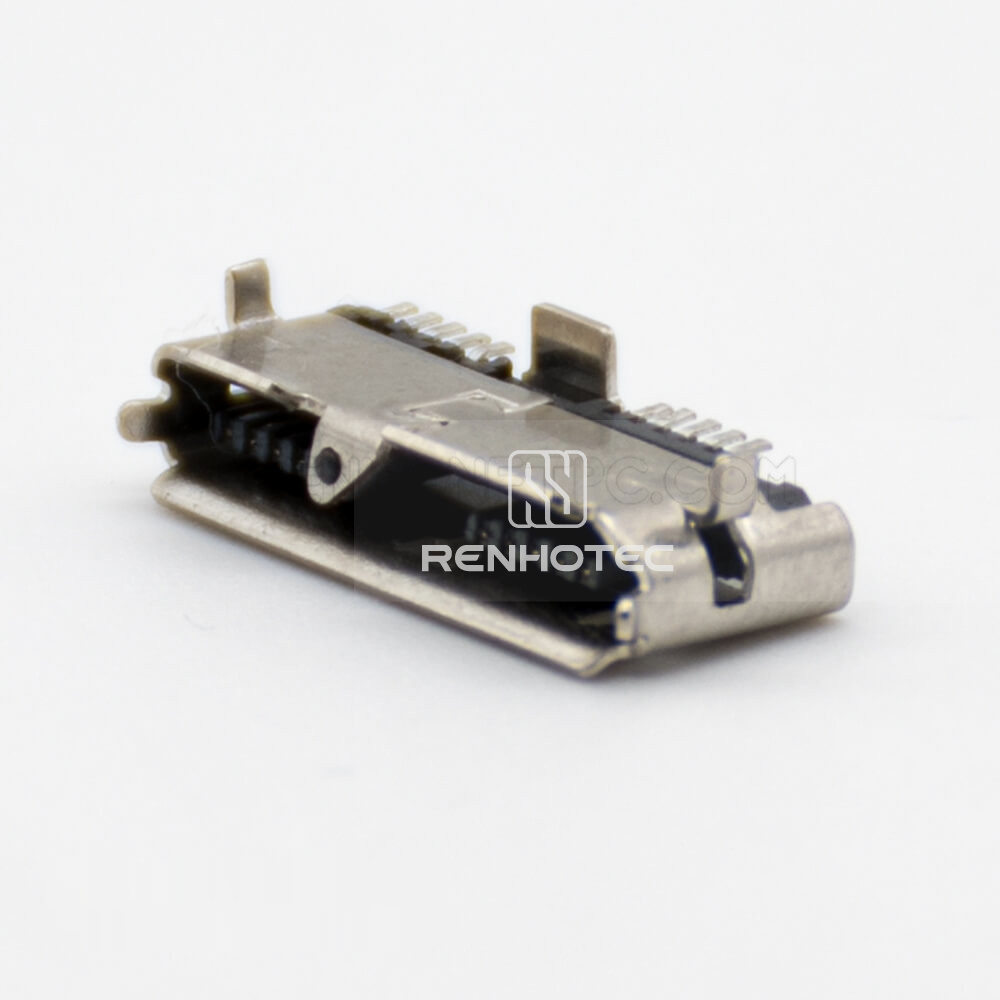

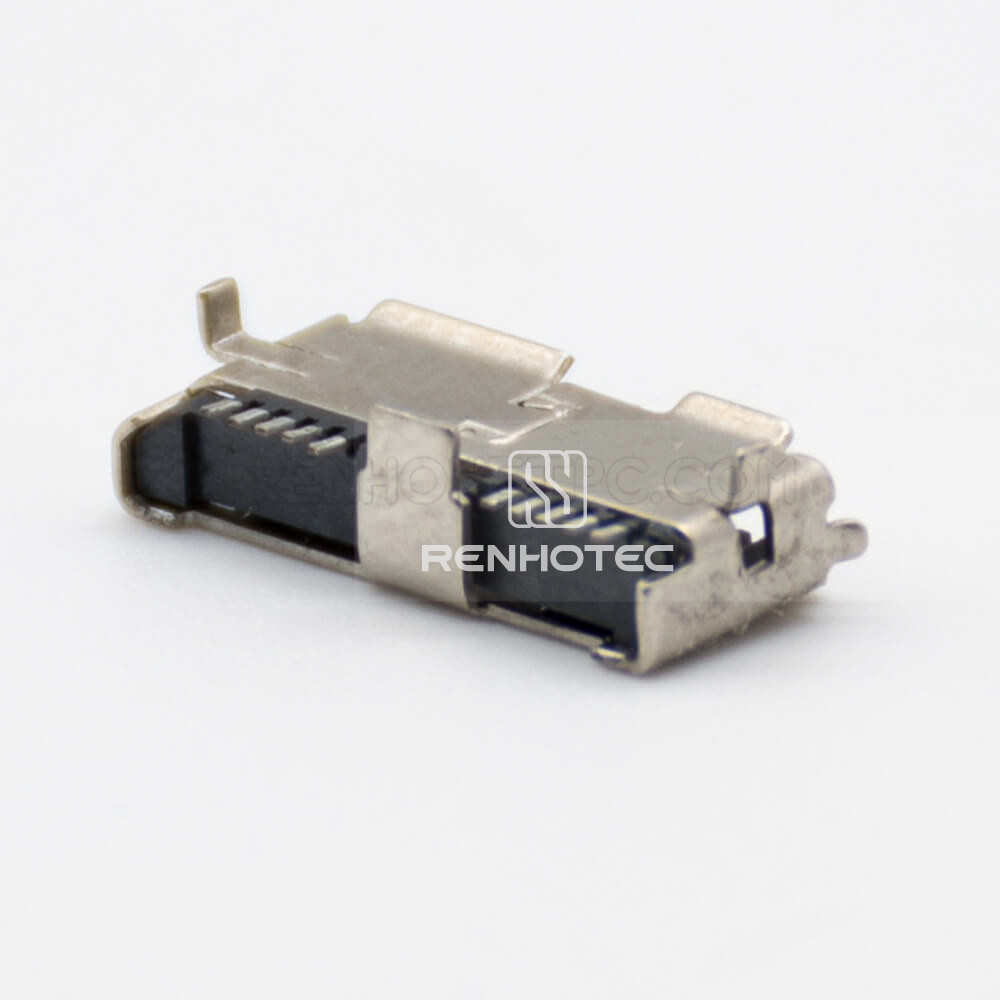

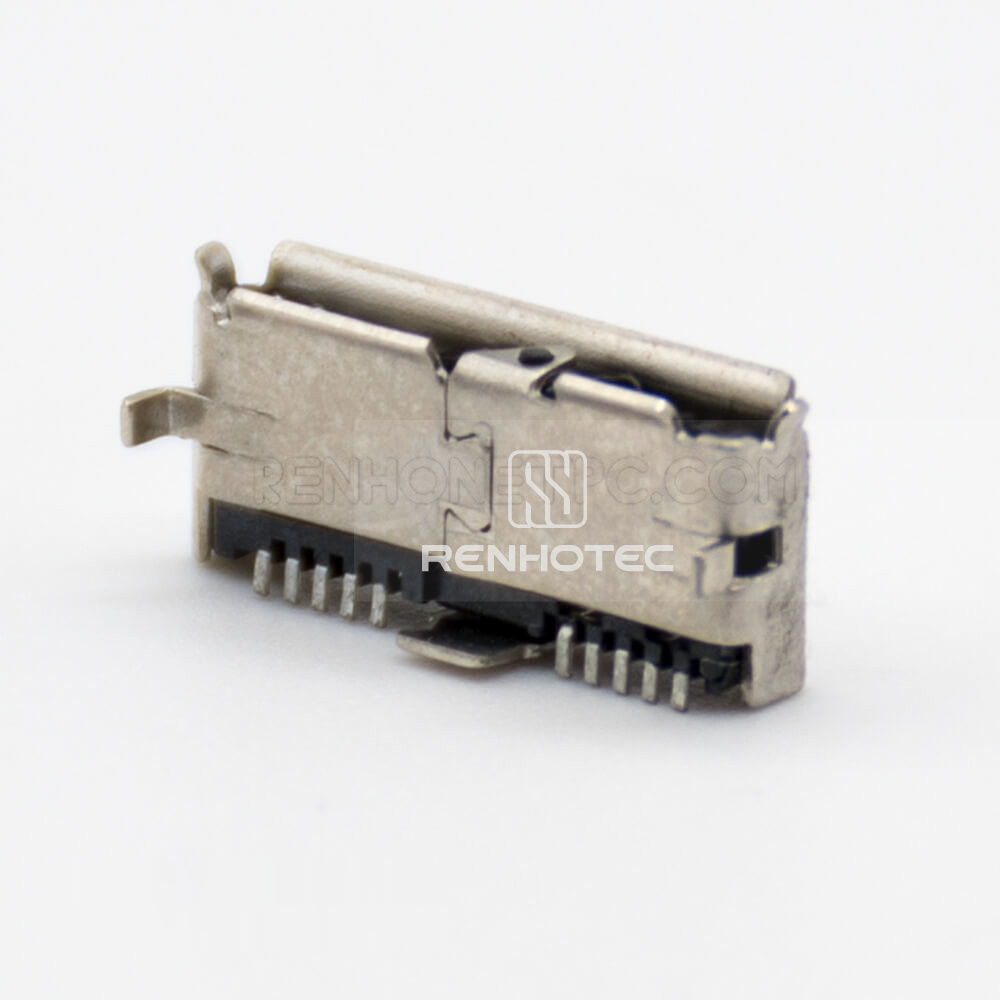

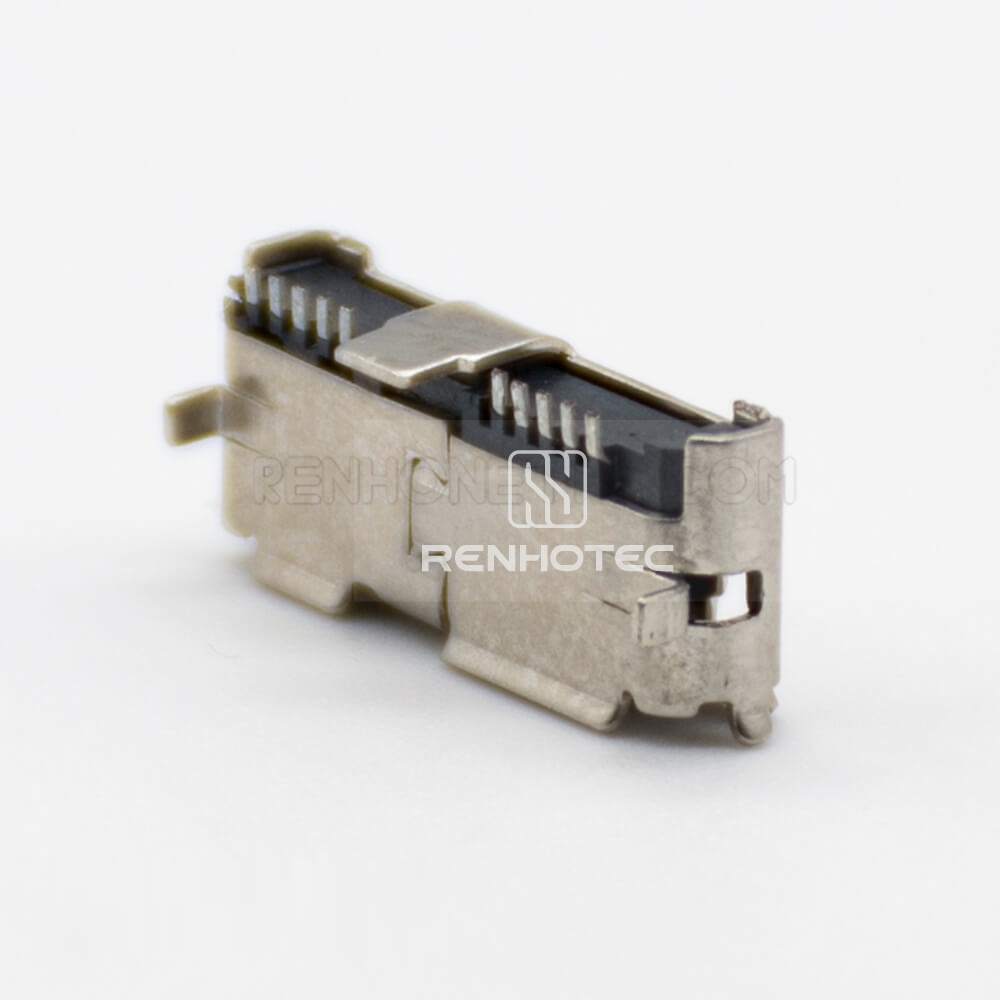

Micro USB Female USB 3.0 Connector PCB MountMicro USB Female USB 3.0 Connector PCB MountMicro USB Female USB 3.0 Connector PCB MountMicro USB Female USB 3.0 Connector PCB MountMicro USB Female USB 3.0 Connector PCB Mount

Key specifications

Connector Type
USB3.0 / Micro USB
Gender
Female
Mounting Type
PCB Mount
Request QuoteFull specifications

Overview

USB Connector with Female, Micro USB / USB3.0. Mounting: PCB Mount.

Shielding: Shielded.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
100V AC RMS
Contact Resistance
10 milliohms max
Insulation Resistance
1000M ΩMin
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
USB3.0 / Micro USB
Gender
Female
Mounting Type
PCB Mount
Shielding
Shielded
Durability
10,000 cycles
Mating force
35N max
Unmating Force
10N

Environmental

Operating Temperature
-55 to 85 °C
