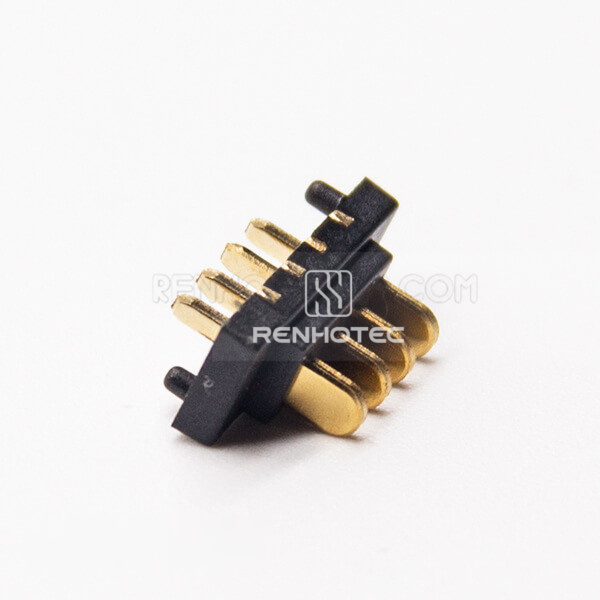

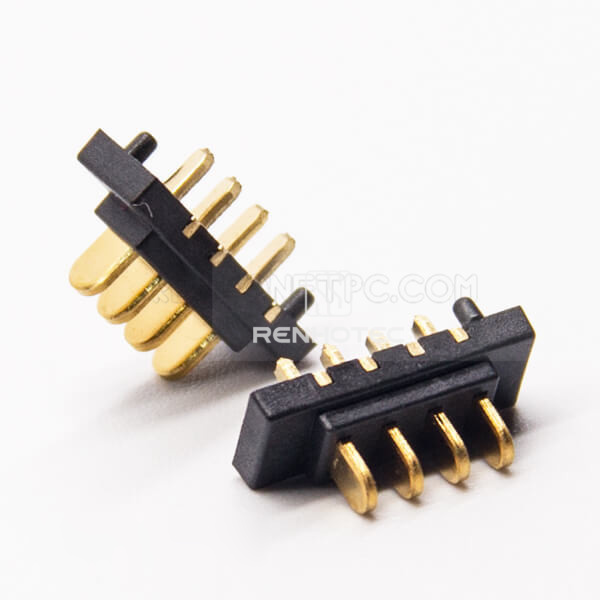

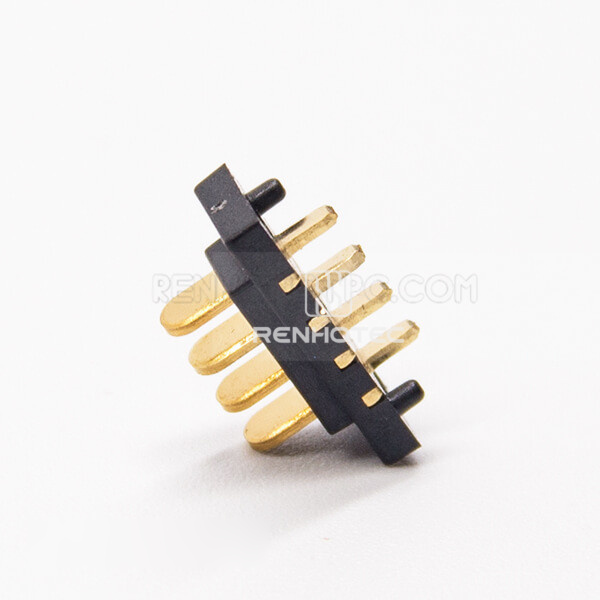

Plug of Battery Straight Male PH2.0 Laptop Battery Connector

Part No.RHT-648-1030
4-pin male battery connector with straight orientation, PCB mounting. Pitch designation: PH2.0. Rated current 7 A; rated voltage 30 V DC.
  • Connector TypeLaptop Battery Connector / Plug
  • Pin Count4 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7A
Voltage Rating
30V DC

Connection

Connector Type
Laptop Battery Connector / Plug

Mechanical

Pin Count
4 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Pitch notation
PH2.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C

Before you specify

Selection guide

4-pin male battery connector with straight orientation, PCB mounting. Pitch designation: PH2.0. Rated current 7 A; rated voltage 30 V DC.

RHT-648-1030
