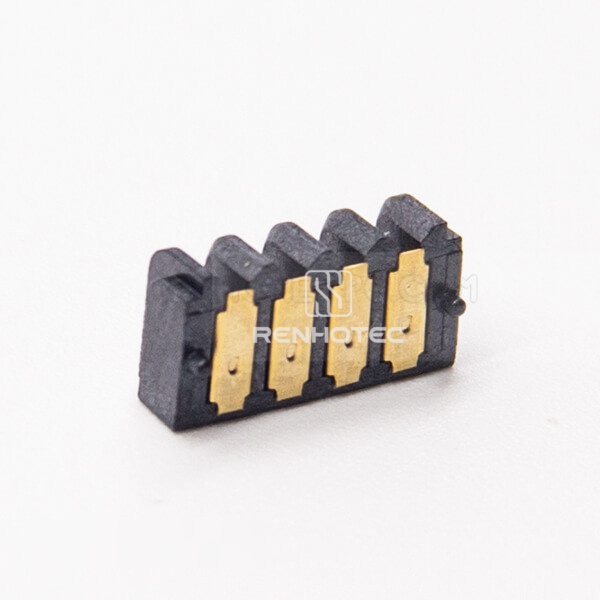

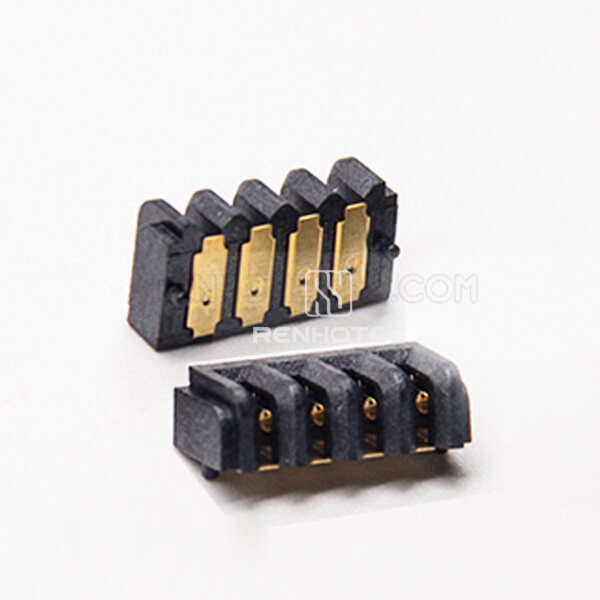

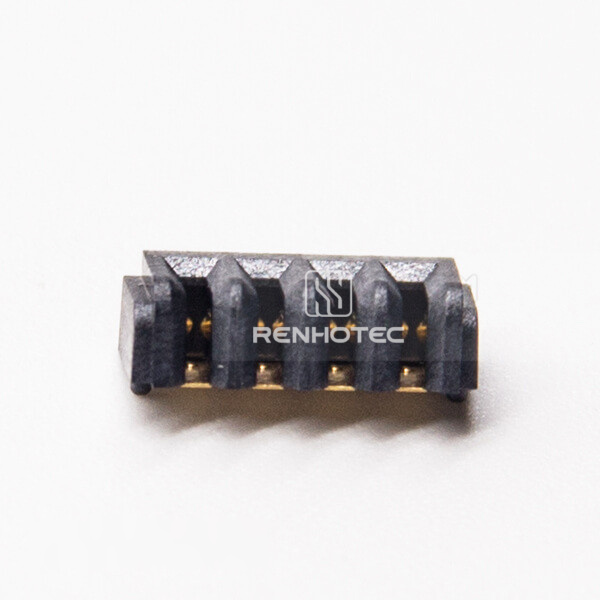

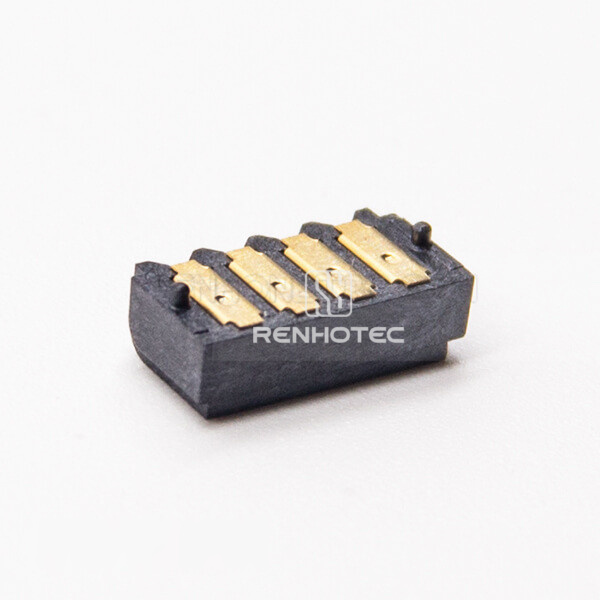

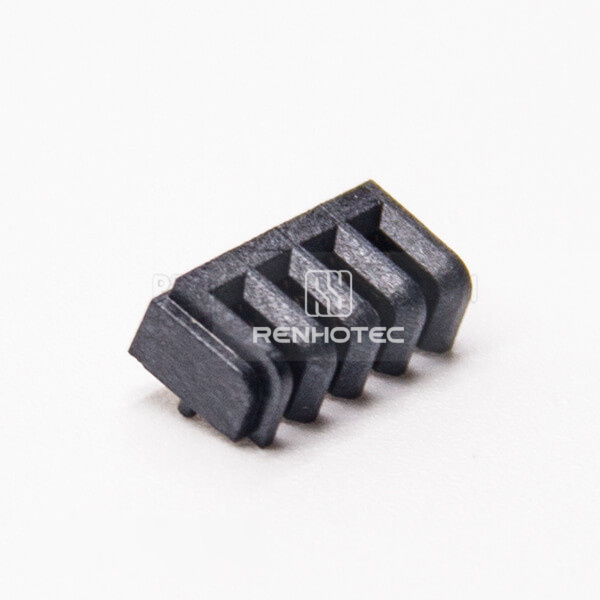

4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector

Public Part No. RHT-648-1028

4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector
Enlarge image
4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector4 Pin Connector Female PH2.0 4 Pin Straight SMT Laptop Battery Connector

Key specifications

Connector Type
Laptop Battery Connector / Socket
Pin Count
4 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
7A
Voltage Rating
30V DC

Mechanical

Connector Type
Laptop Battery Connector / Socket
Pin Count
4 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Pitch notation
PH2.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C
