4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug

Public Part No. RHT-648-1024

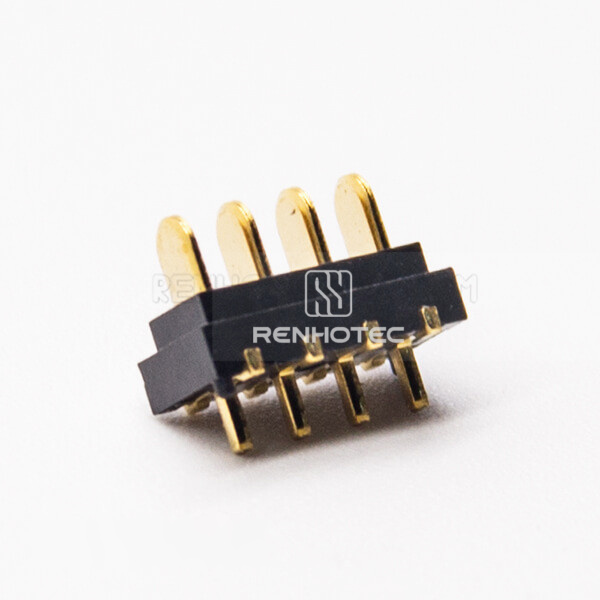

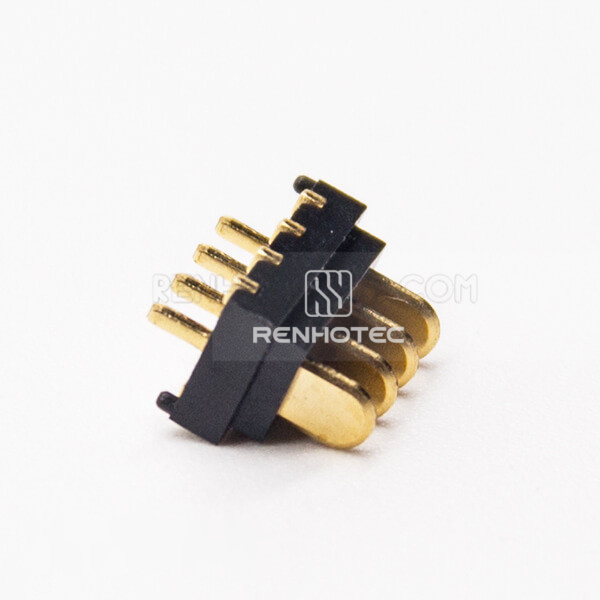

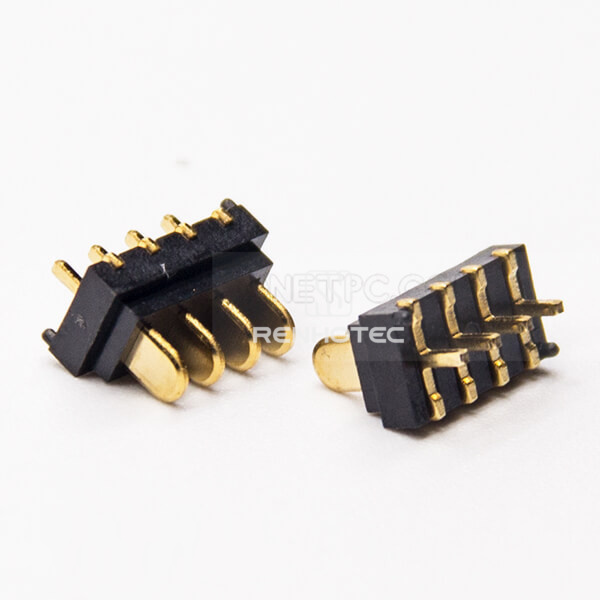

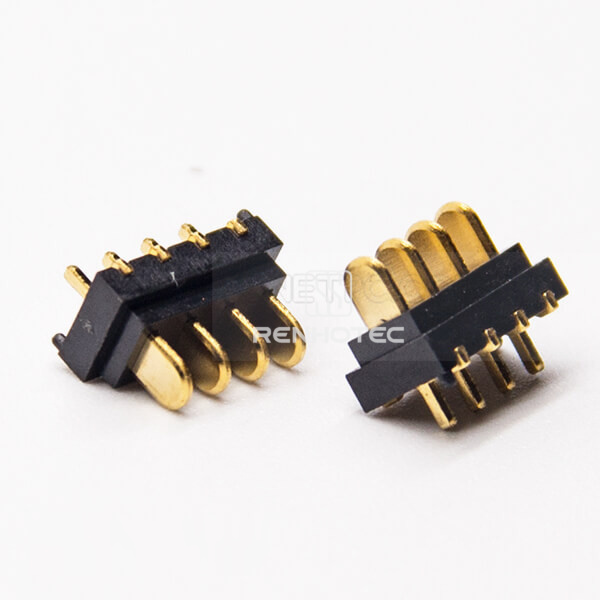

4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug
Enlarge image
4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug4 Pin Male Notebook Battery Connector PH2.0 4 Pin Straight Plug

Key specifications

Connector Type
Laptop Battery Connector / Plug
Pin Count
4 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
7A
Voltage Rating
30V DC

Mechanical

Connector Type
Laptop Battery Connector / Plug
Pin Count
4 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Pitch notation
PH2.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C
