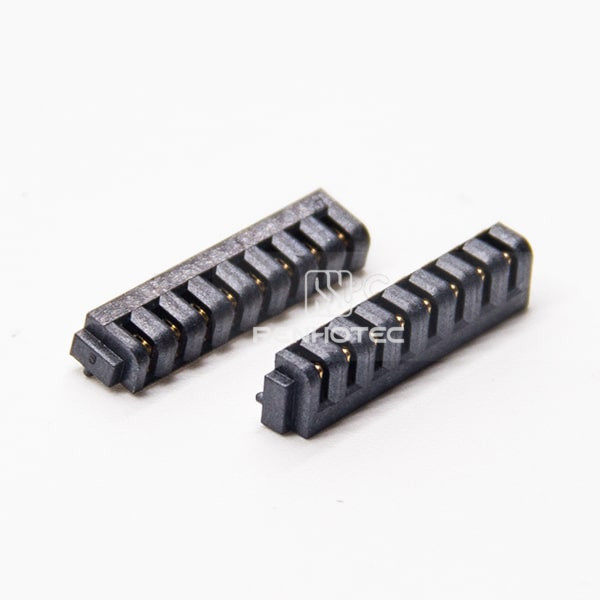

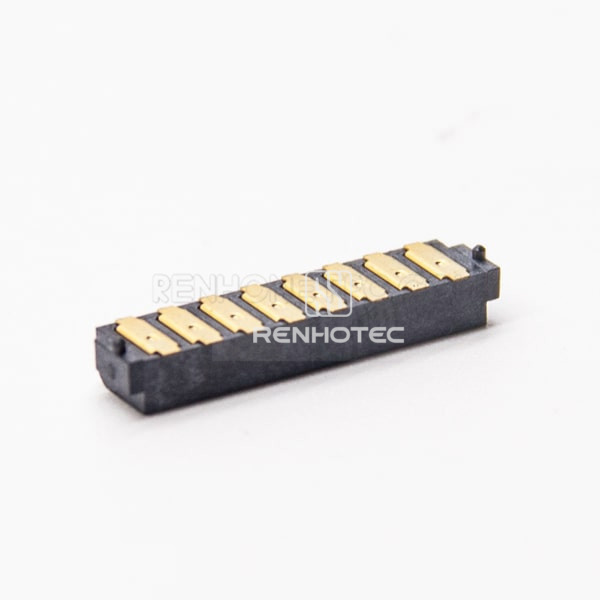

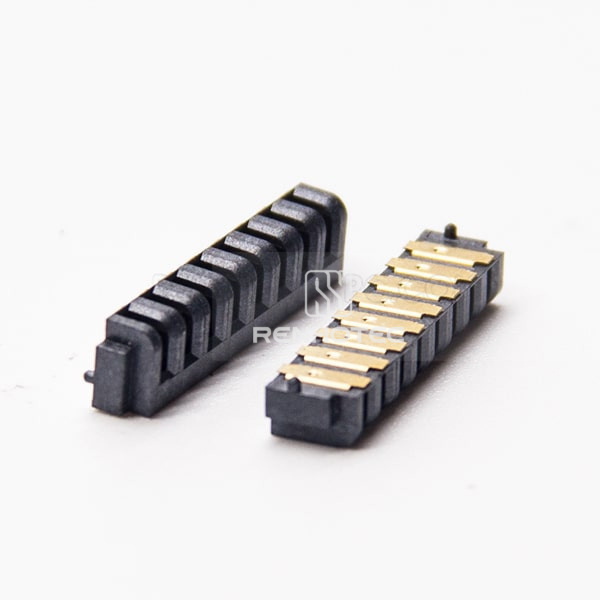

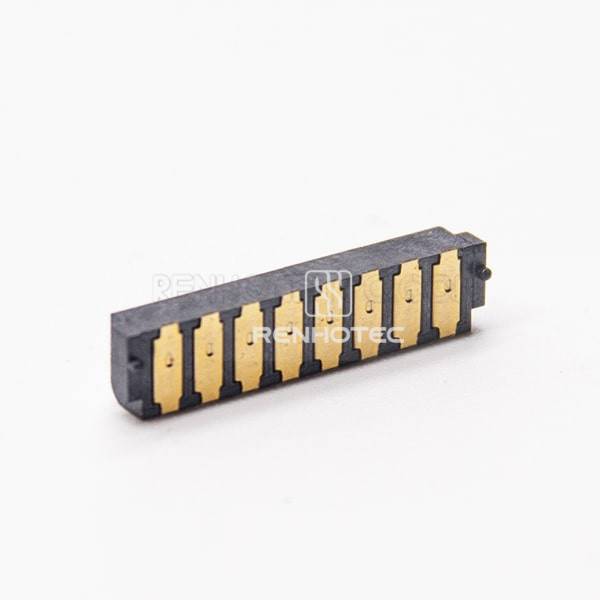

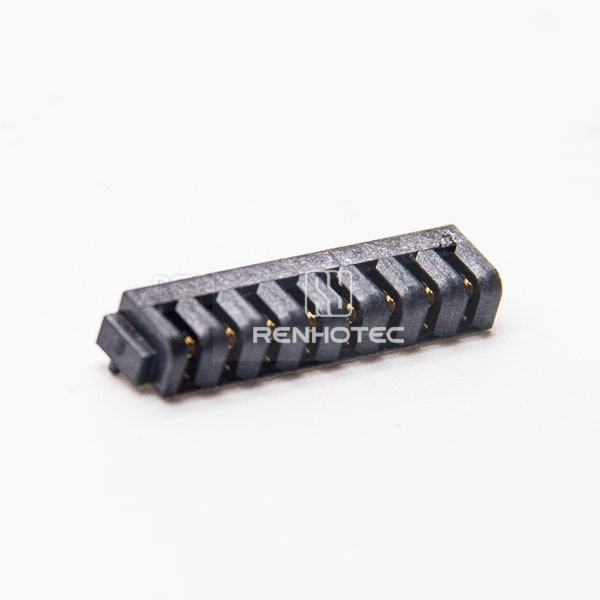

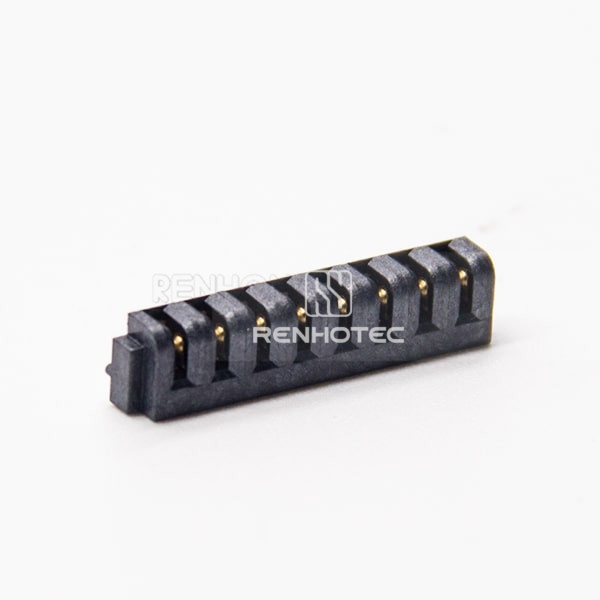

8 Pin Female Connector PH2.5 Right Angle Left SMT Laptop Battery Connector

Part No.RHT-648-1018
8-pin female battery connector with right-angle orientation, SMT mounting. Pitch designation: PH2.5. Rated current 7 A; rated voltage 30 V DC.
  • Connector TypeLaptop Battery Connector / Socket
  • Pin Count8 Pin
  • GenderFemale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7A
Voltage Rating
30V DC

Connection

Connector Type
Laptop Battery Connector / Socket

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / SMT
Pitch notation
PH2.5
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C

Before you specify

Selection guide

8-pin female battery connector with right-angle orientation, SMT mounting. Pitch designation: PH2.5. Rated current 7 A; rated voltage 30 V DC.

RHT-648-1018
