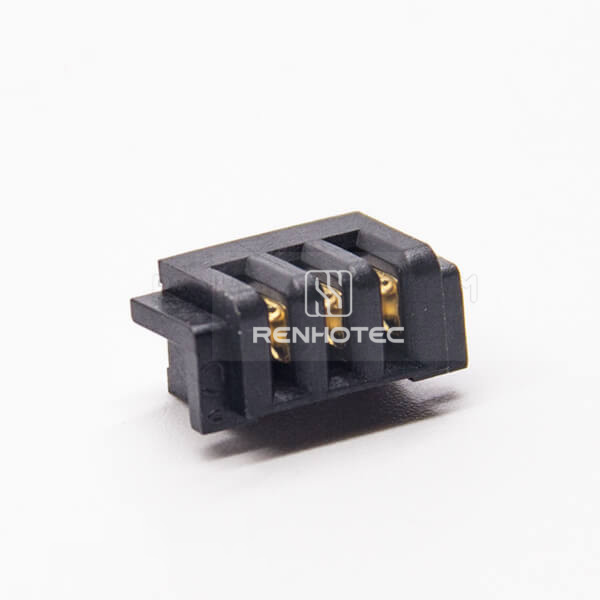

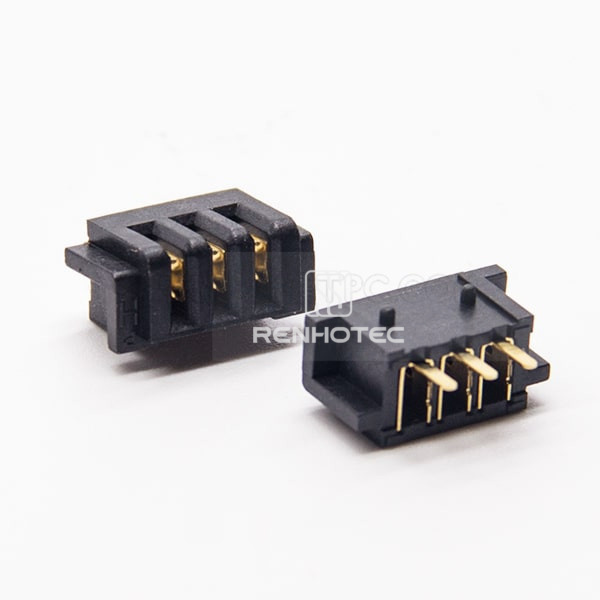

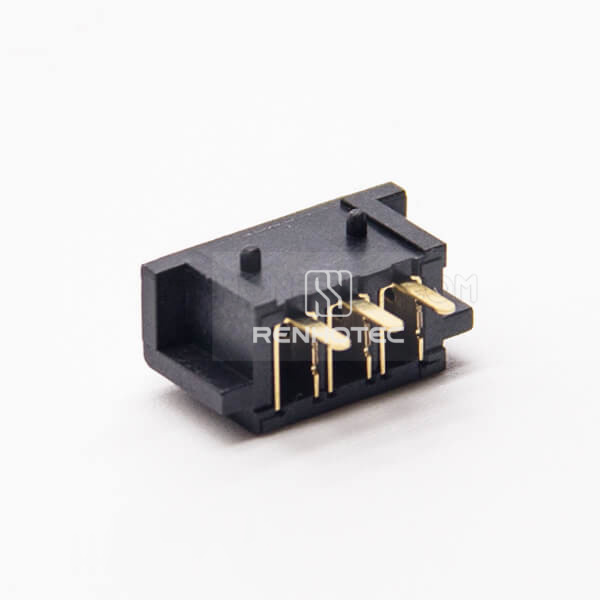

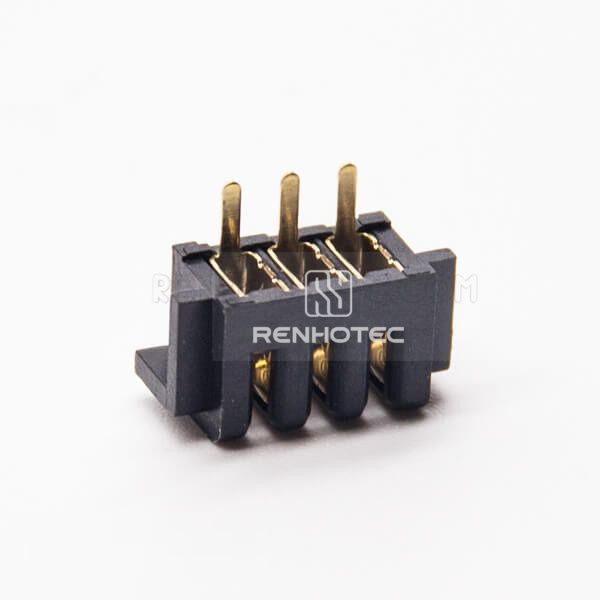

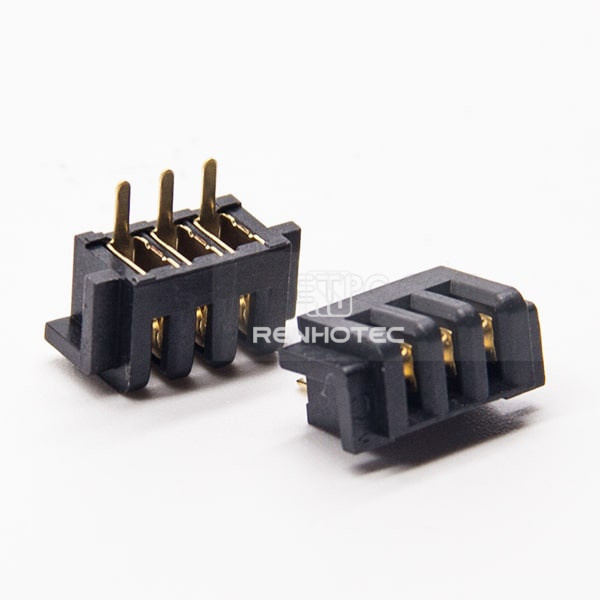

Battery Connectors PH2.5 Female Straight Laptop Battery Connector

Public Part No. RHT-648-1013

Battery Connectors PH2.5 Female Straight Laptop Battery Connector
Enlarge image
Battery Connectors PH2.5 Female Straight Laptop Battery ConnectorBattery Connectors PH2.5 Female Straight Laptop Battery ConnectorBattery Connectors PH2.5 Female Straight Laptop Battery ConnectorBattery Connectors PH2.5 Female Straight Laptop Battery ConnectorBattery Connectors PH2.5 Female Straight Laptop Battery Connector

Key specifications

Connector Type
Laptop Battery Connector / Socket
Pin Count
3 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
7A
Voltage Rating
30V DC

Mechanical

Connector Type
Laptop Battery Connector / Socket
Pin Count
3 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount
Pitch notation
PH2.5
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C
