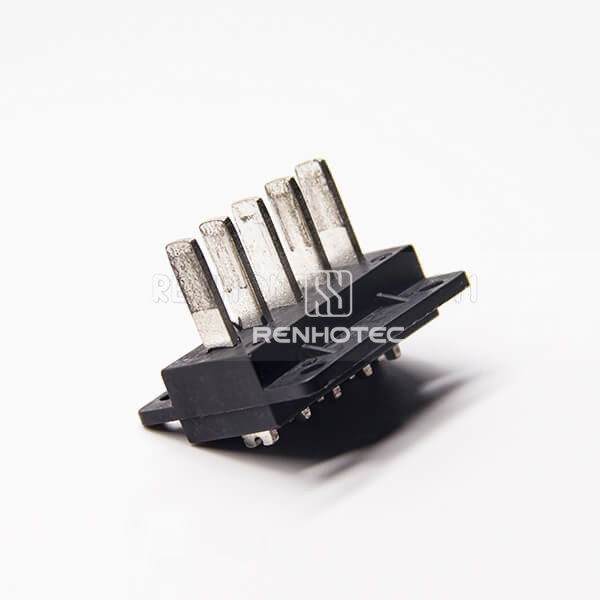

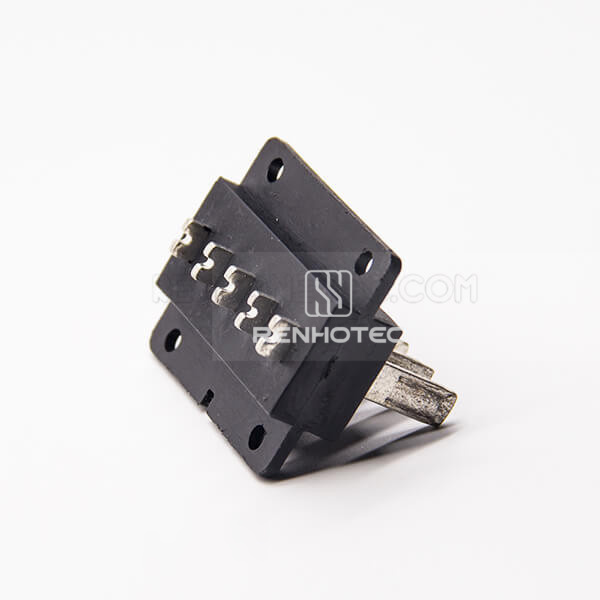

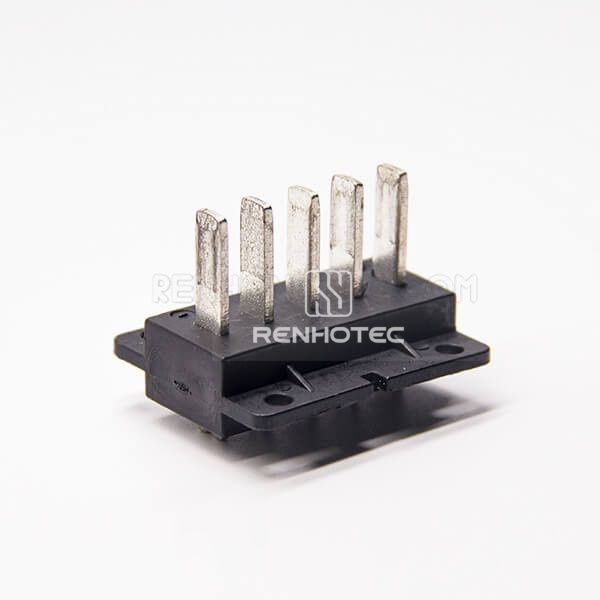

Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy

Part No.RHT-648-1009
5-pin male battery connector with straight orientation, PCB and panel mounting. Pitch designation: PH5.0. Rated current 7 A; rated voltage 30 V DC.
  • Connector TypeLaptop Battery Connector / Socket
  • Pin Count5 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7A
Voltage Rating
30V DC

Connection

Connector Type
Laptop Battery Connector / Socket

Mechanical

Pin Count
5 Pin
Gender
Male
Orientation
Straight
Mounting Type
Panel Mount / PCB Mount
Pitch notation
PH5.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C

Before you specify

Selection guide

5-pin male battery connector with straight orientation, PCB and panel mounting. Pitch designation: PH5.0. Rated current 7 A; rated voltage 30 V DC.

RHT-648-1009

Ready to specify your connection?

Share the equipment, dimensions and quantity you need.

Request a quote

Connector requirement

Request a quote
