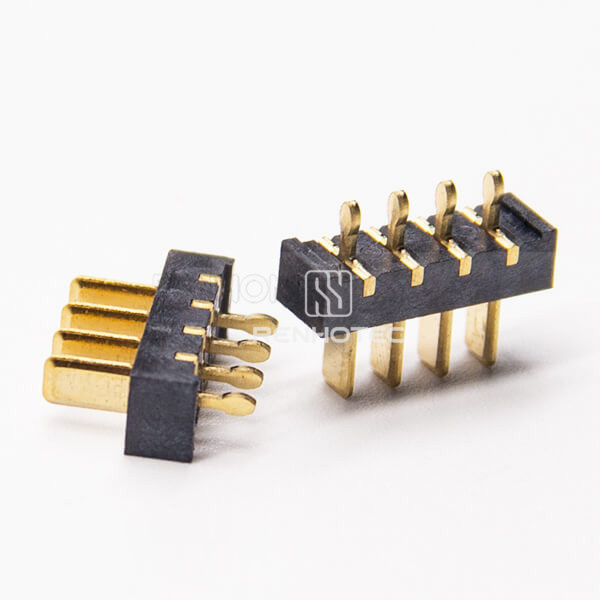

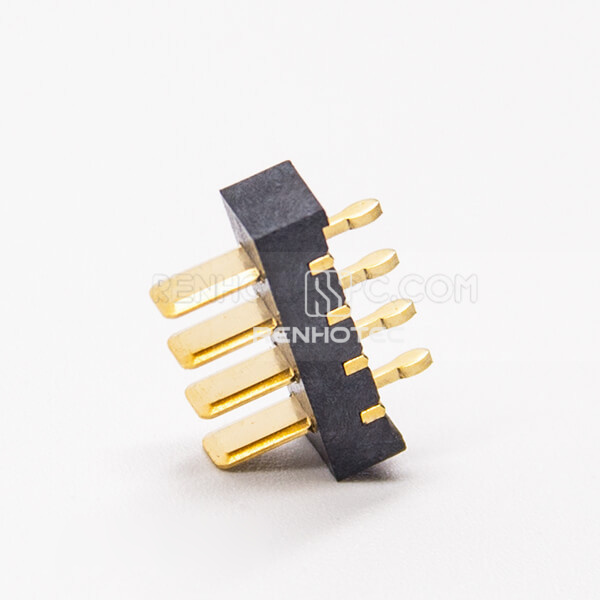

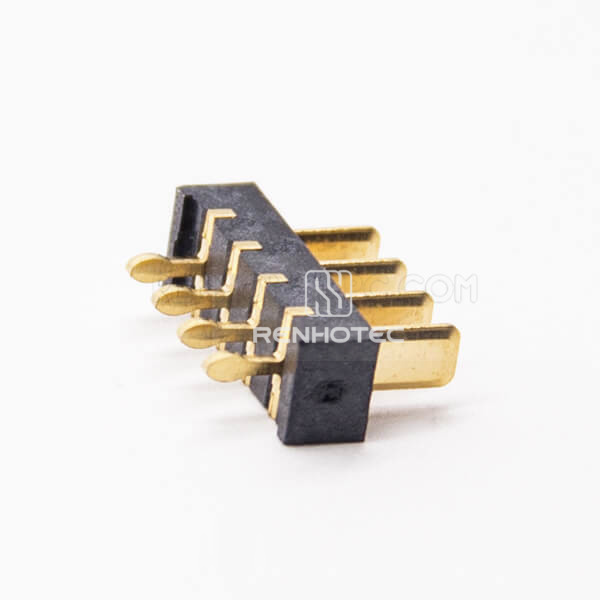

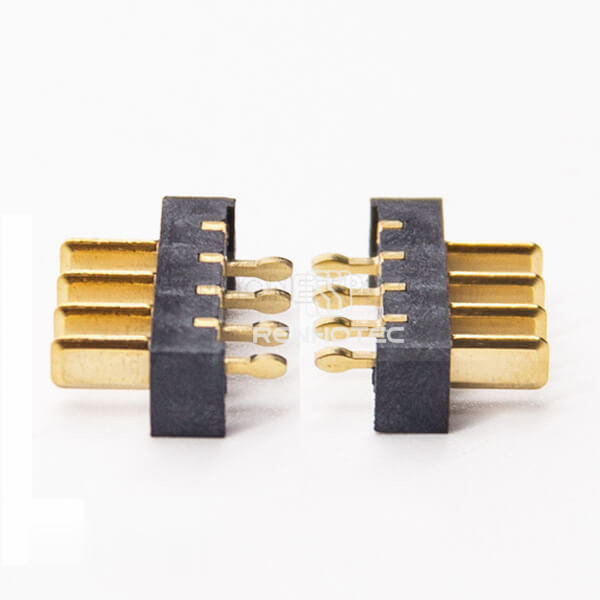

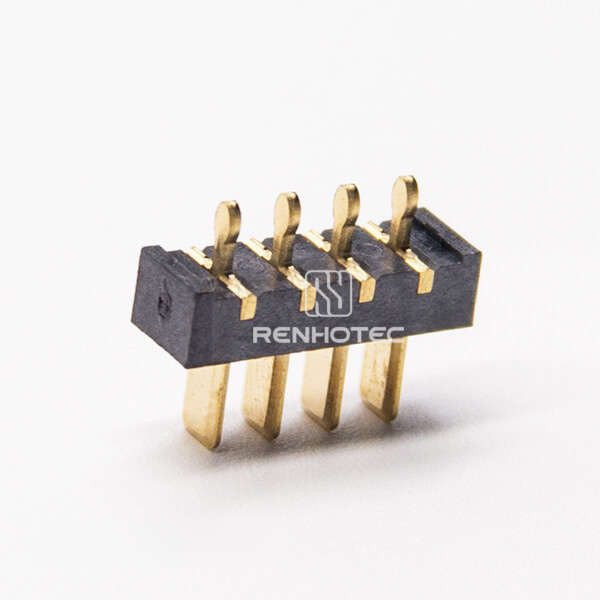

Laptop Battery Connections 4.0MM 4 Pin PH2.5 Male Straight Panel Mount
- Connector TypeLaptop Battery Connector / Socket
- Pin Count4 Pin
- GenderMale
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 7A
- Voltage Rating
- 30V DC
Connection
- Connector Type
- Laptop Battery Connector / Socket
Mechanical
- Pin Count
- 4 Pin
- Gender
- Male
- Orientation
- Straight
- Mounting Type
- Panel Mount / PCB Mount
- Pitch notation
- PH2.5
- Mechanical characteristics
- PCB mounting fixed (without accessories)
Material
- Material
- UL 94V-0 rated thermoplastic
Environmental
- Ambient temperature condition
- ≥ -30°C ~ + 70°C
Before you specify
Selection guide
4-pin male battery connector with straight orientation, PCB and panel mounting. Pitch designation: PH2.5. Rated current 7 A; rated voltage 30 V DC.
RHT-648-1006
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Laptop Battery Connections 4.0MM 4 Pin PH2.5 Male Straight Panel Mount- Product family
- Terminal Blocks
- Public Part No.
- RHT-648-1006
