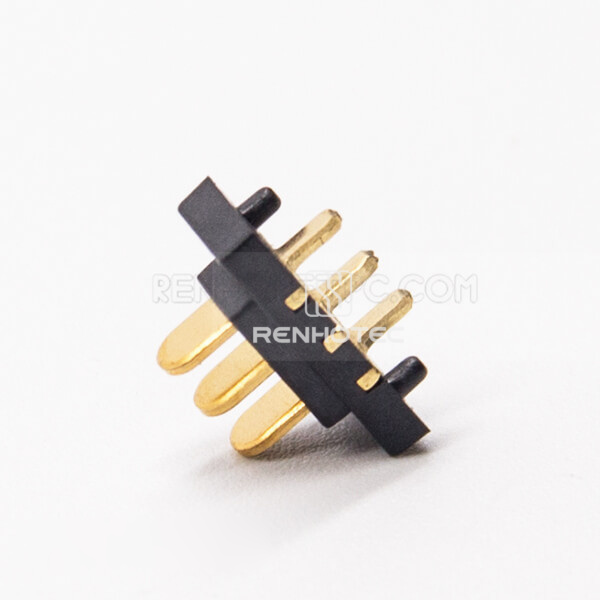

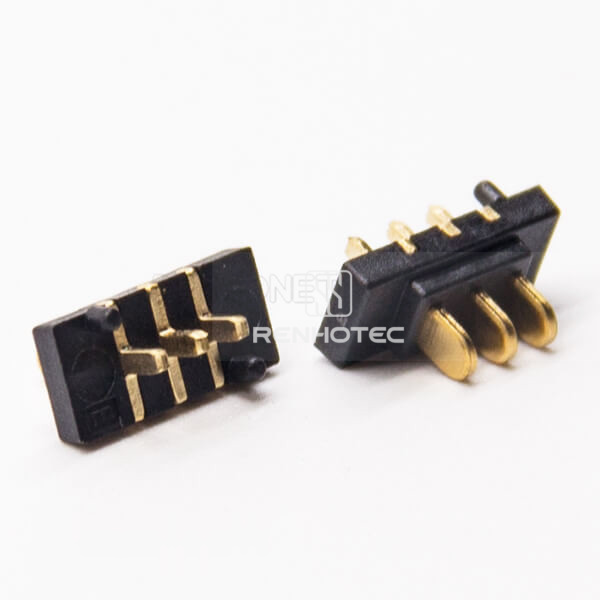

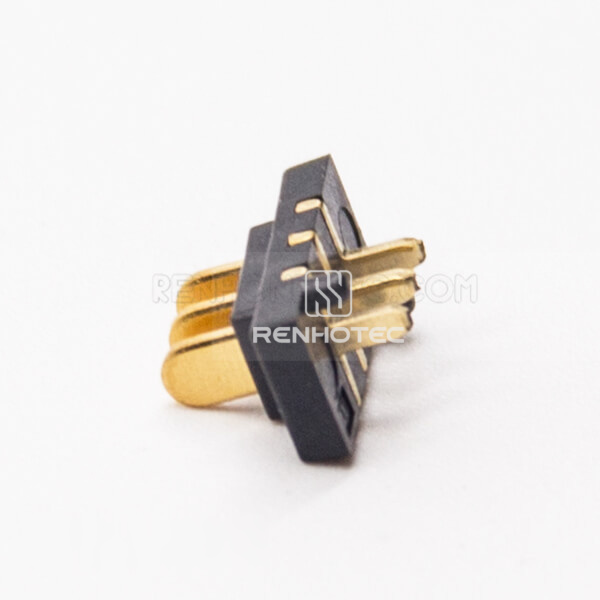

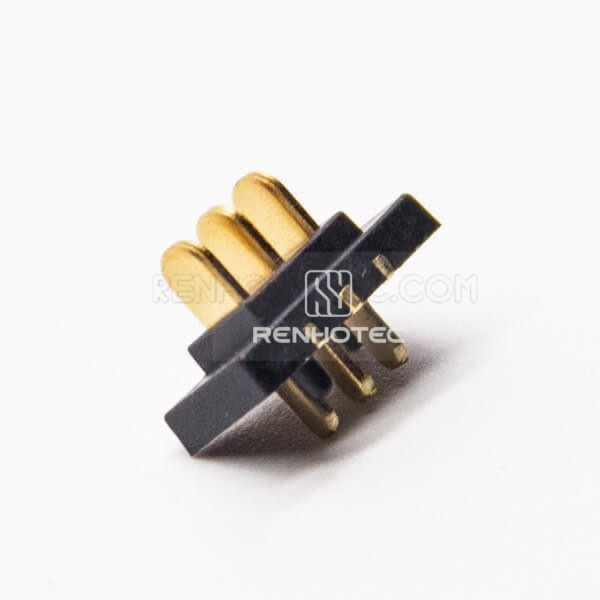

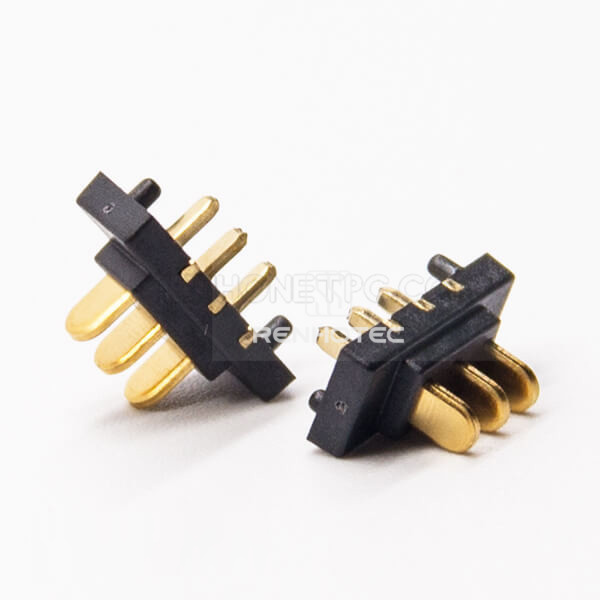

Notebook Battery Connector Socket 3 Pin PH2.0 Male Straight Through Hole for PCB Mount

Part No.RHT-648-1003
3-pin male battery connector with straight orientation, through-hole and panel mounting. Pitch designation: PH2.0. Rated current 7 A; rated voltage 30 V DC.
  • Connector TypeLaptop Battery Connector / Socket
  • Pin Count3 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7A
Voltage Rating
30V DC

Connection

Connector Type
Laptop Battery Connector / Socket

Mechanical

Pin Count
3 Pin
Gender
Male
Orientation
Straight
Mounting Type
Panel Mount / PCB Mount / Through Hole
Pitch notation
PH2.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C

Before you specify

Selection guide

3-pin male battery connector with straight orientation, through-hole and panel mounting. Pitch designation: PH2.0. Rated current 7 A; rated voltage 30 V DC.

RHT-648-1003
