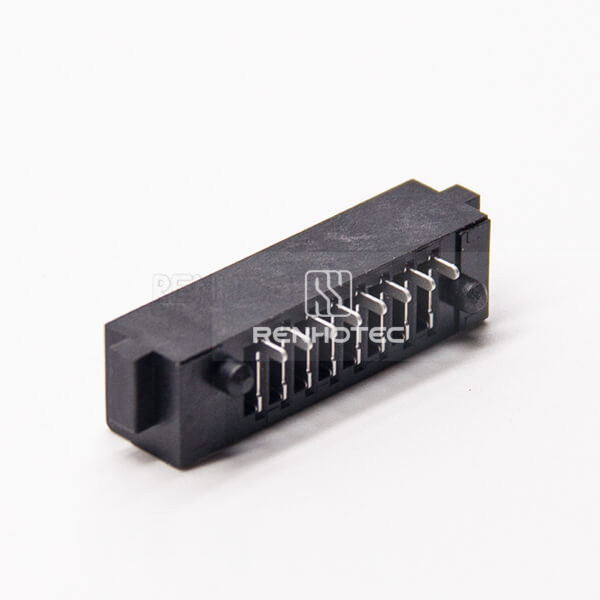

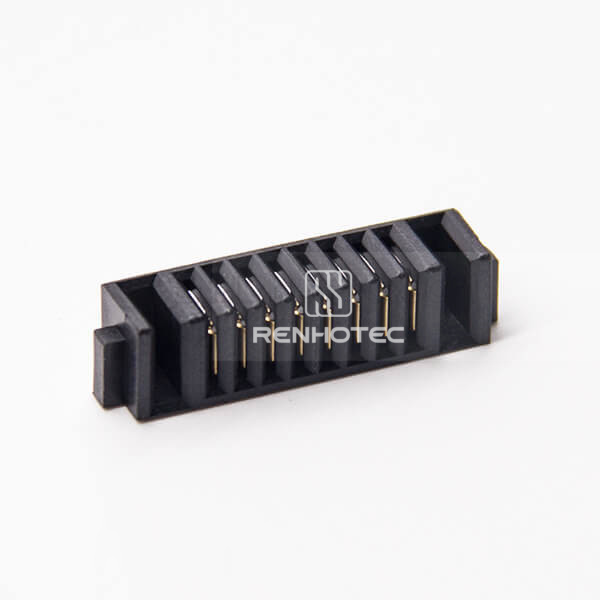

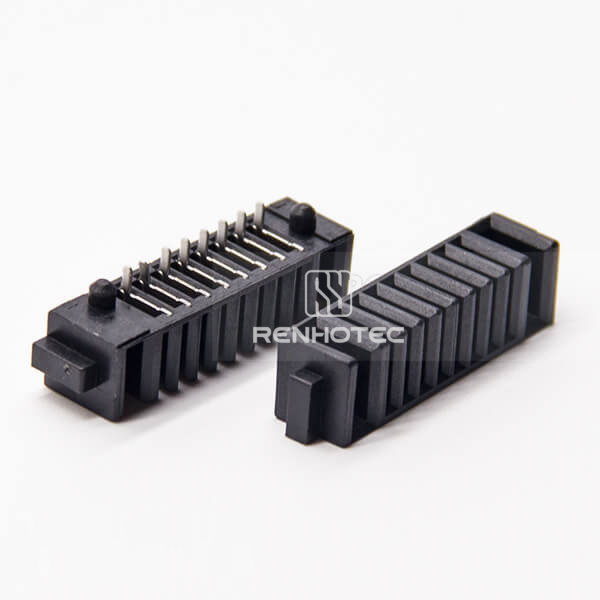

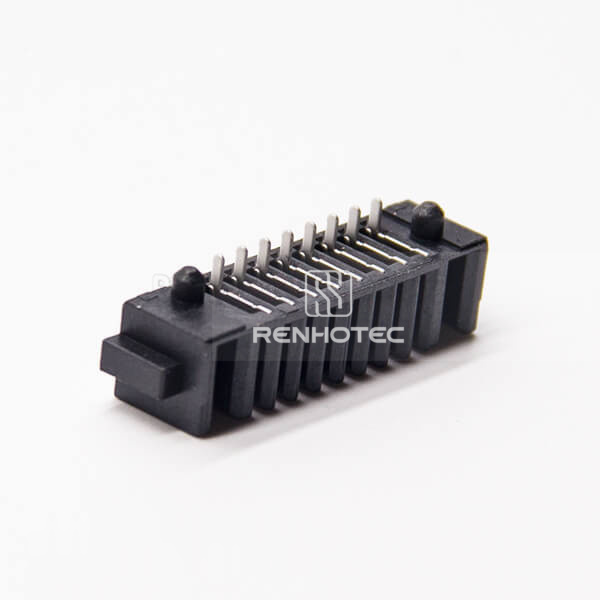

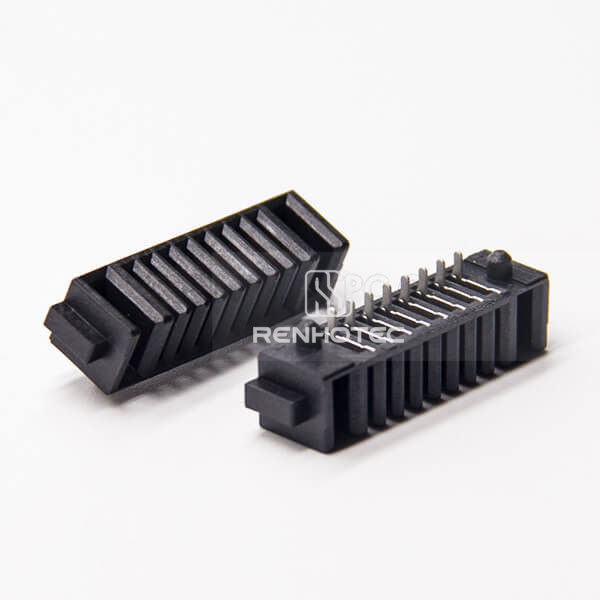

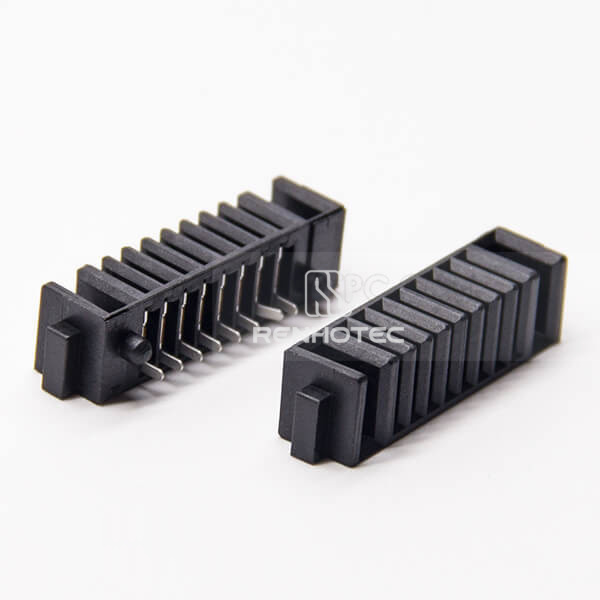

Battery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel Mount

Public Part No. RHT-648-1002

Battery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel Mount
Enlarge image
Battery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel MountBattery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel MountBattery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel MountBattery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel MountBattery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel MountBattery Connector Laptop Socket 8 Pin PH2.0 Female Straight SMT for Panel Mount

Key specifications

Connector Type
Laptop Battery Connector / Socket
Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount / PCB Mount / SMT
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
7A
Voltage Rating
30V DC

Mechanical

Connector Type
Laptop Battery Connector / Socket
Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount / PCB Mount / SMT
Pitch notation
PH2.0
Mechanical characteristics
PCB mounting fixed (without accessories)

Material

Material
UL 94V-0 rated thermoplastic

Environmental

Ambient temperature condition
≥ -30°C ~ + 70°C
