Female Header Connector

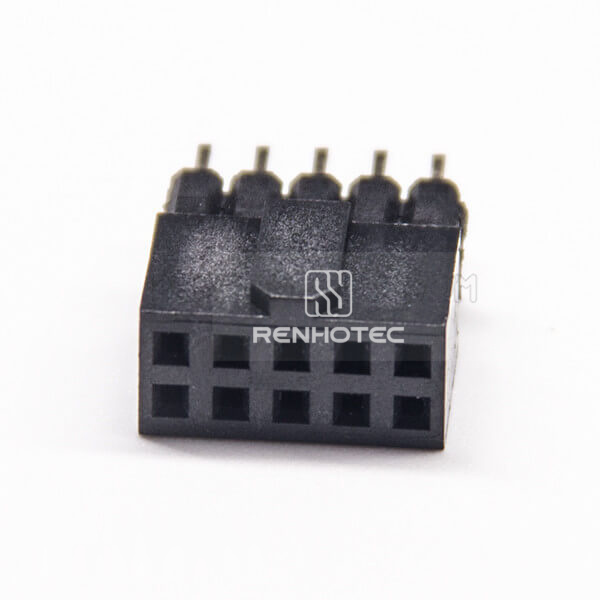

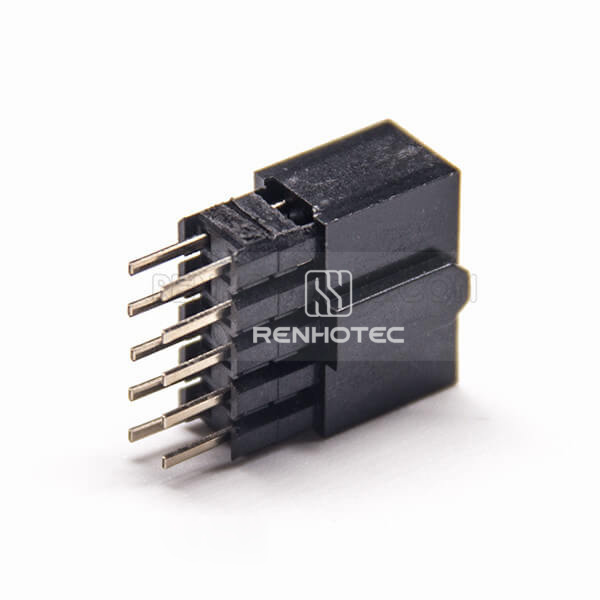

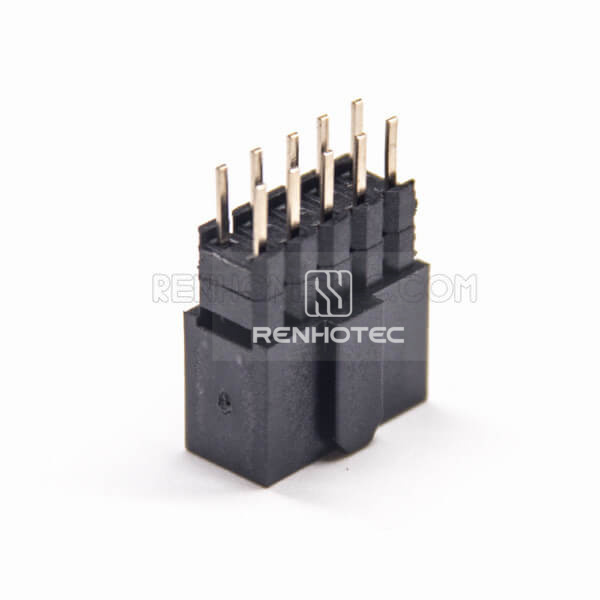

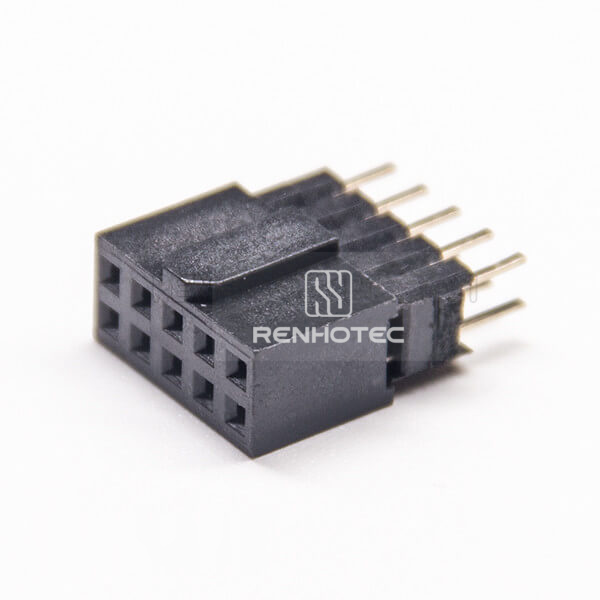

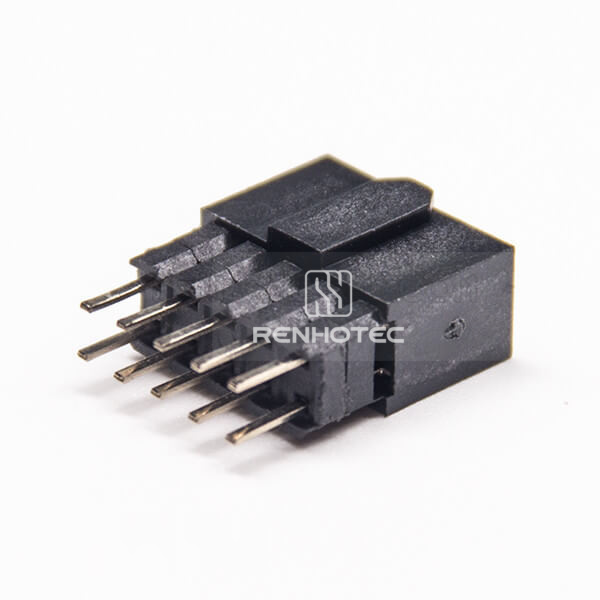

10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm

Public Part No. RHT-604-2052

10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm
Enlarge image
10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm10-Pin Dual-Row Female Header, 2.54 mm Pitch, H 8.5 mm

Key specifications

Pin Count
10 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
10 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension H
8.5 mm
Construction detail
Square
Pitch notation
2.54 PH

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
