Female Header Connector

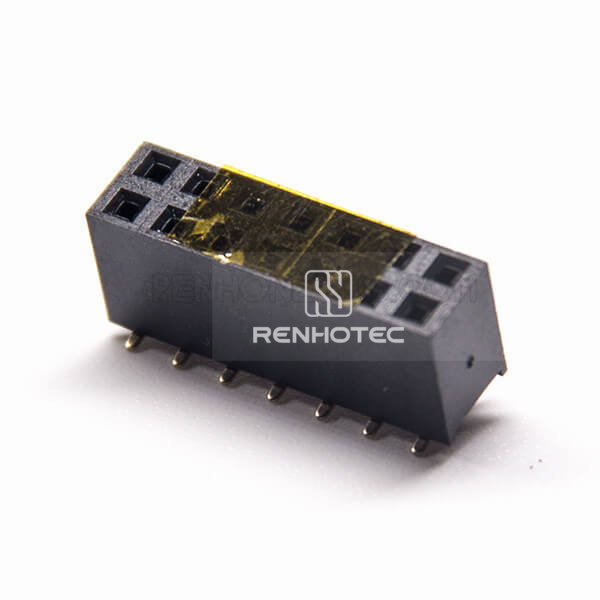

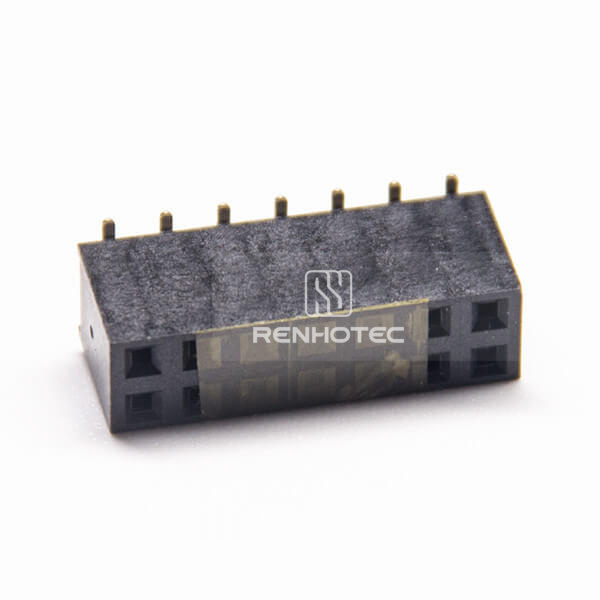

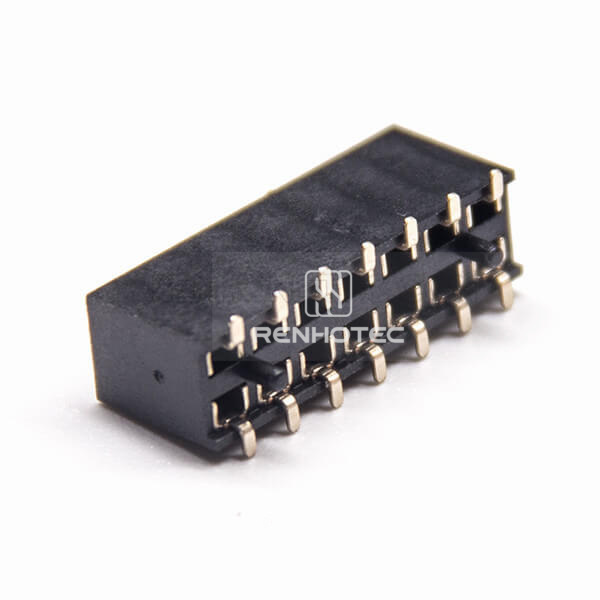

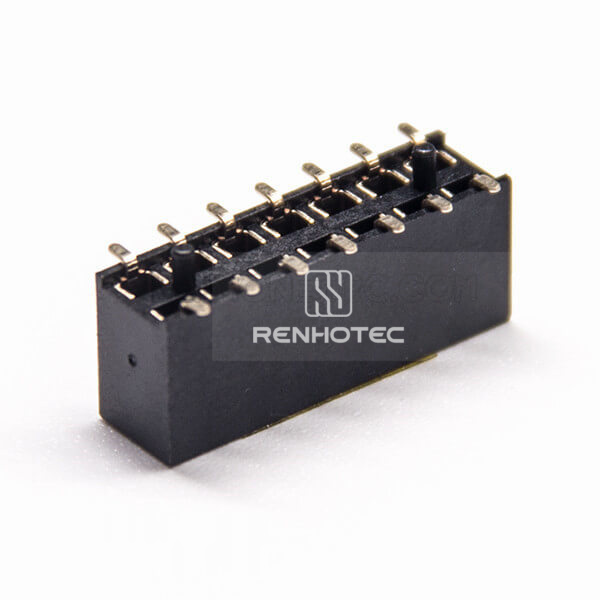

14 pin Header Female Dual Row U Type 2.54mm Picth SMT

Public Part No. RHT-604-2050

14 pin Header Female Dual Row U Type 2.54mm Picth SMT
Enlarge image
14 pin Header Female Dual Row U Type 2.54mm Picth SMT14 pin Header Female Dual Row U Type 2.54mm Picth SMT14 pin Header Female Dual Row U Type 2.54mm Picth SMT14 pin Header Female Dual Row U Type 2.54mm Picth SMT

Key specifications

Pin Count
14 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch 14-contact dual-row straight female header for SMT mounting. U-type version. Dimension H: 7.1 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
14 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Dimension H
7.1 mm
Construction detail
Square / U Type

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
