Female Header Connector

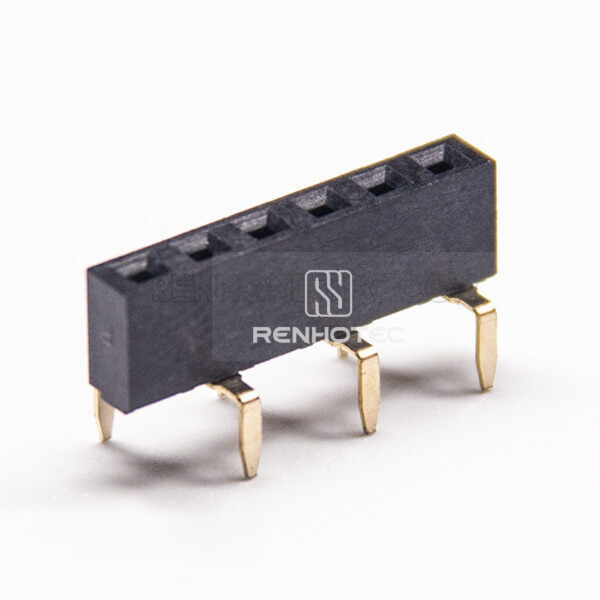

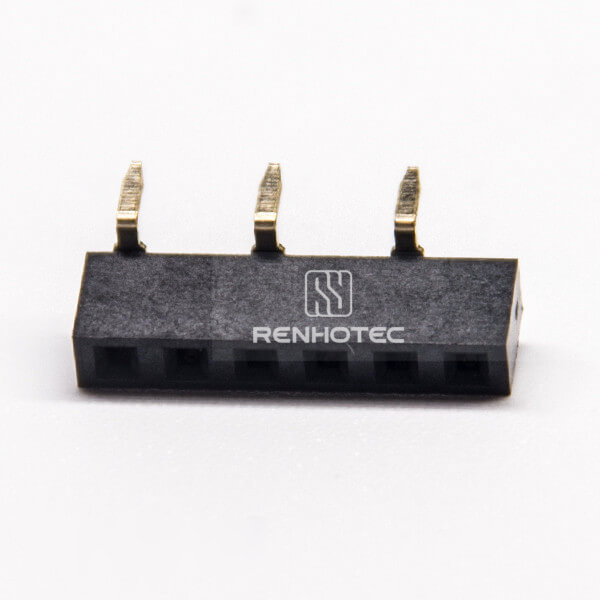

Header 2.54mm Single Row 6 Pin Straight PCB Mount
2.54 mm pitch 6-contact single-row straight female header for through-hole mounting.
- Pin Count6 Pin
- GenderFemale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Pin Count
- 6 Pin
- Gender
- Female
- Orientation
- Straight
- Mounting Type
- PCB Mount / Through Hole
- Termination Type
- Solder Type
- Pitch
- 2.54 mm
- Number of Rows
- Single Row
- Dimension H
- 5 mm
- Construction detail
- Square
Material
- Contact Plating
- Gold Plating
- Color
- Black
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Environmental
- Operating Temperature
- -40 to 105 °C
Before you specify
Selection guide
2.54 mm pitch 6-contact single-row straight female header for through-hole mounting. Dimension H: 5 mm.
RHT-604-2048
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Header 2.54mm Single Row 6 Pin Straight PCB Mount- Product family
- Female Header Connector
- Public Part No.
- RHT-604-2048
