Female Header Connector

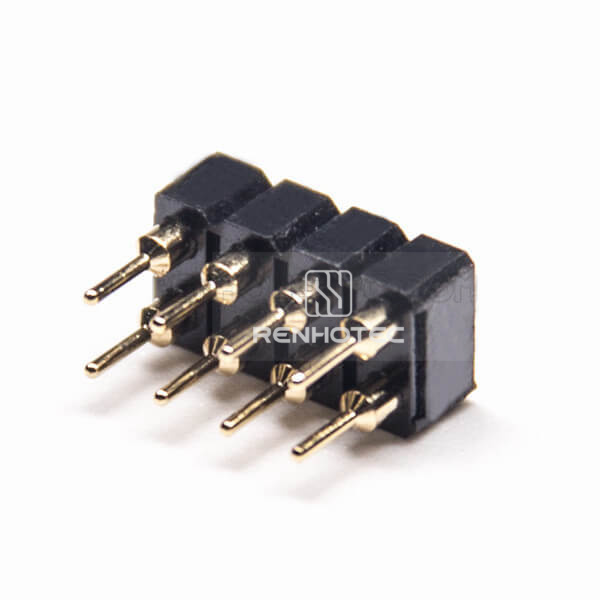

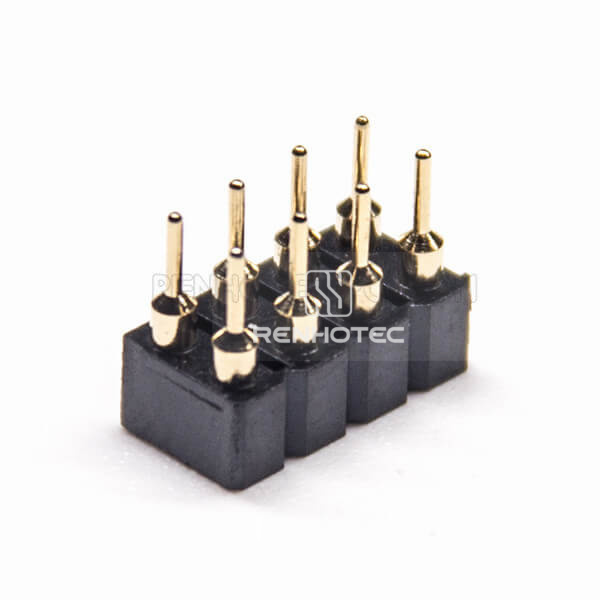

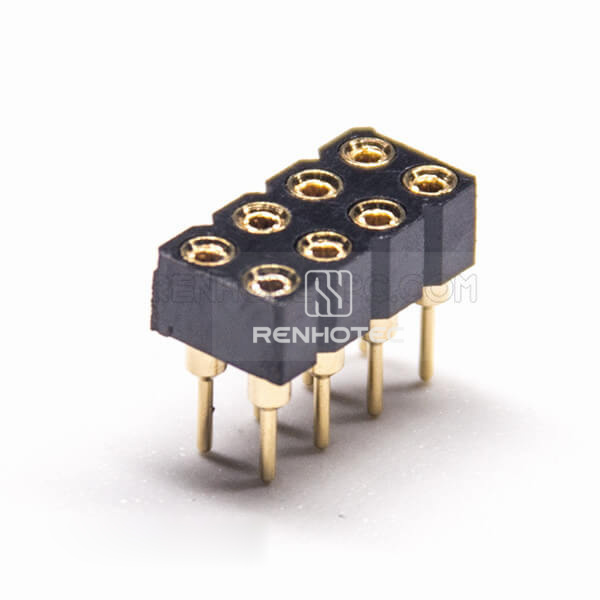

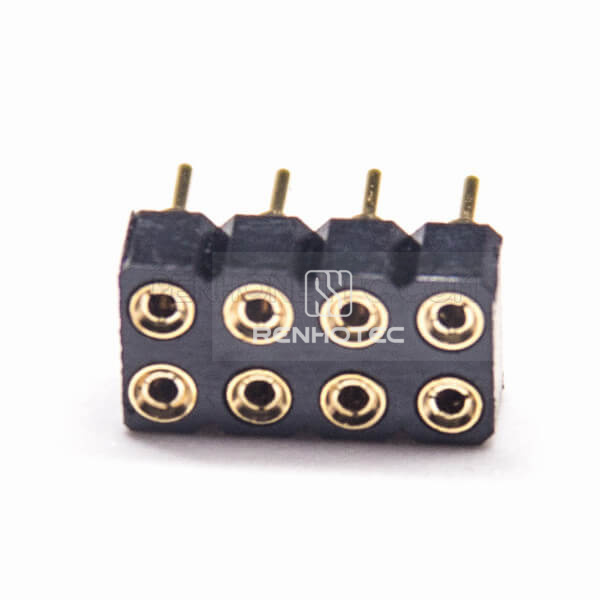

Female Header Connector RHT-604-2047
2.54 mm pitch dual-row straight female header for through-hole mounting.
- GenderFemale
- OrientationStraight
- Mounting TypePCB Mount / Through Hole
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A
- Insulation Resistance
- 1000M ohms min
- Dielectric Withstanding
- AC500V
Mechanical
- Gender
- Female
- Orientation
- Straight
- Mounting Type
- PCB Mount / Through Hole
- Termination Type
- Solder Type
- Pitch
- 2.54 mm
- Number of Rows
- Dual Row
- Construction detail
- Circular / Circular Holes
- Dimension H
- 3 mm
- Contact configuration
- 2X4
Material
- Contact Plating
- Gold Plating
- Color
- Black
- Plating layers
- Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)
Environmental
- Operating Temperature
- -40 to 105 °C
Before you specify
Selection guide
2.54 mm pitch dual-row straight female header for through-hole mounting. Contact arrangement: 2×4 with circular holes. Dimension H: 3 mm.
RHT-604-2047
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
Female Header Connector RHT-604-2047- Product family
- Female Header Connector
- Public Part No.
- RHT-604-2047
