Female Header Connector

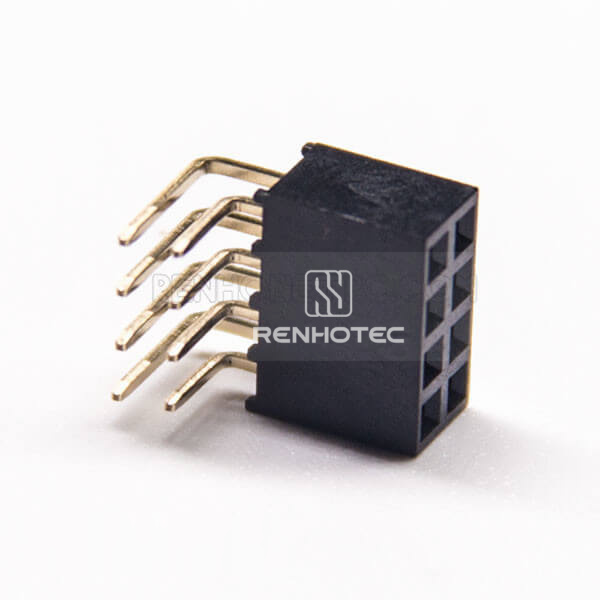

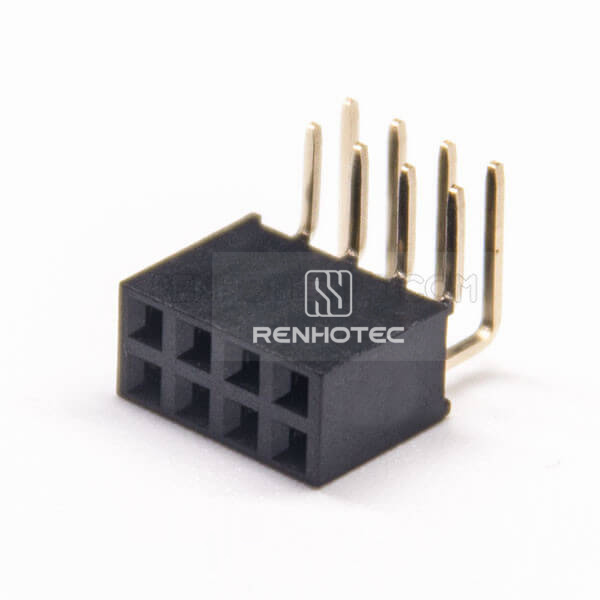

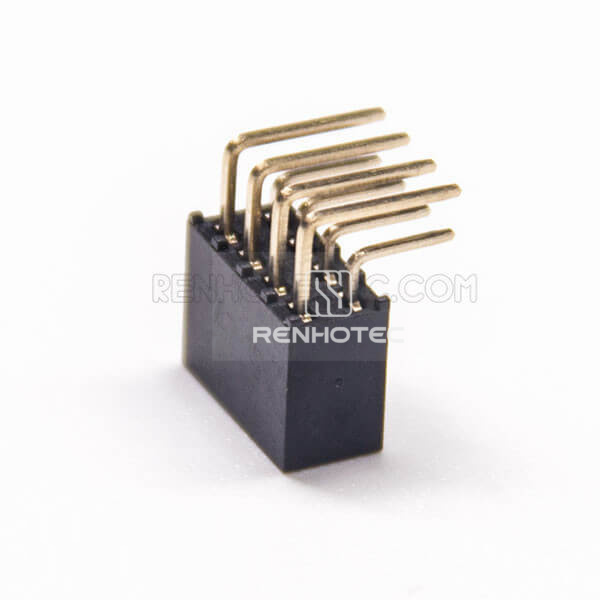

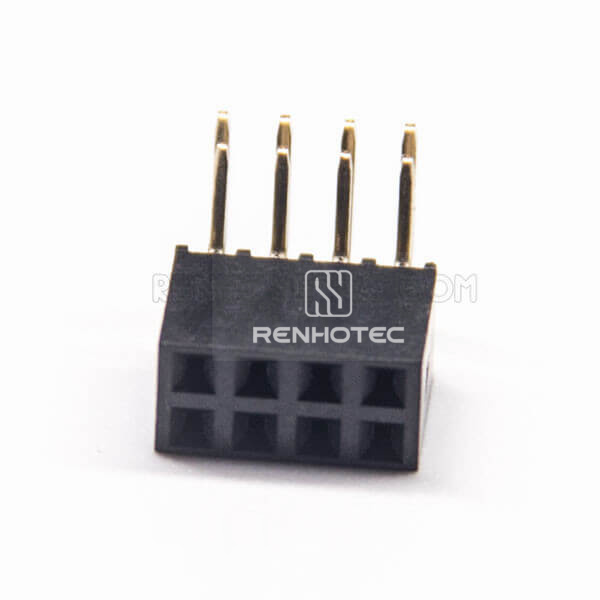

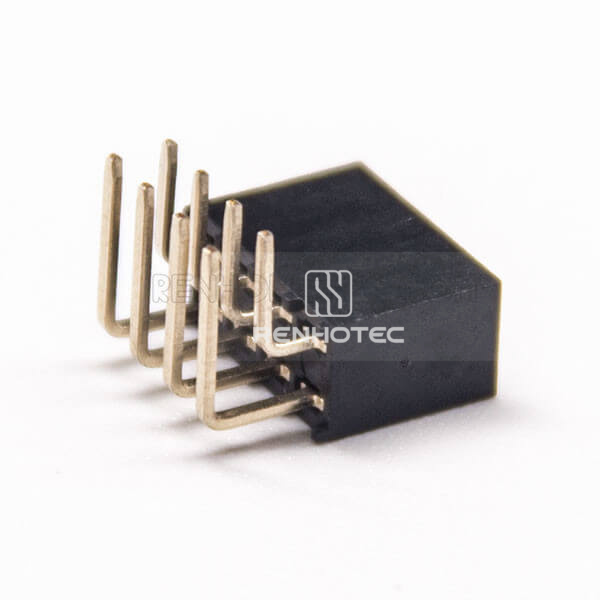

Right Angle Double Row Female Header 8 Pin 2.0mm Pitch Dip

Public Part No. RHT-604-2044

Right Angle Double Row Female Header 8 Pin 2.0mm Pitch Dip
Enlarge image
Right Angle Double Row Female Header 8 Pin 2.0mm Pitch DipRight Angle Double Row Female Header 8 Pin 2.0mm Pitch DipRight Angle Double Row Female Header 8 Pin 2.0mm Pitch DipRight Angle Double Row Female Header 8 Pin 2.0mm Pitch DipRight Angle Double Row Female Header 8 Pin 2.0mm Pitch Dip

Key specifications

Pin Count
8 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2 mm pitch 8-contact dual-row right-angle female header for DIP mounting. Dimension H: 7.2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Dual Row
Dimension H
7.2 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
