Female Header Connector

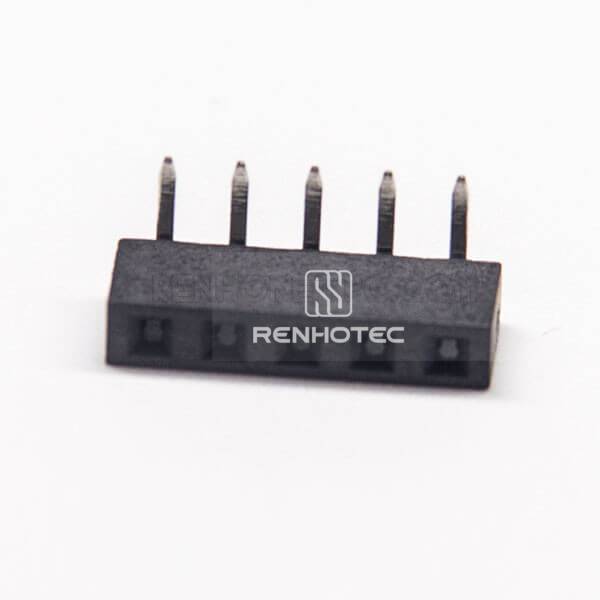

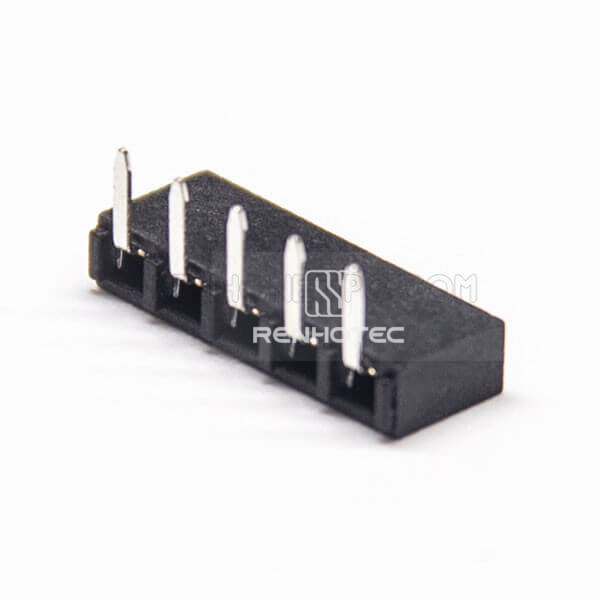

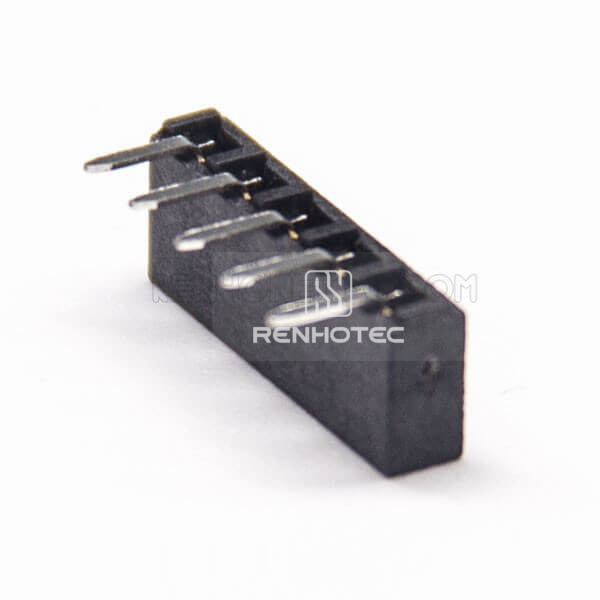

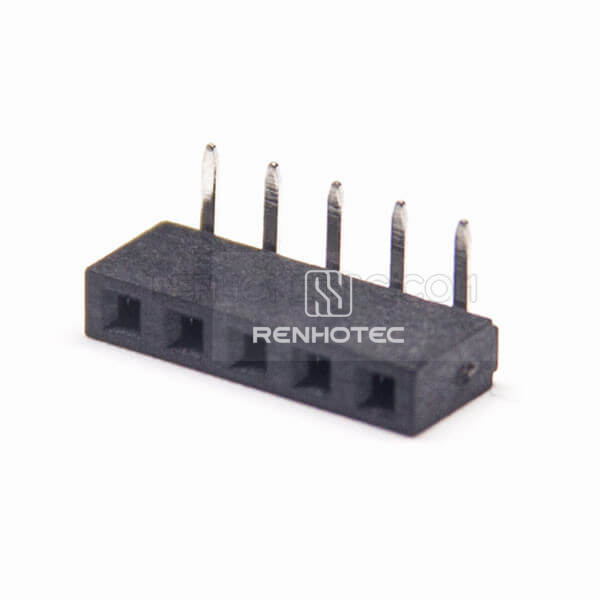

2mm Header Right Angle 5 Pin Single Row Dip Type

Public Part No. RHT-604-2043

2mm Header Right Angle 5 Pin Single Row Dip Type
Enlarge image
2mm Header Right Angle 5 Pin Single Row Dip Type2mm Header Right Angle 5 Pin Single Row Dip Type2mm Header Right Angle 5 Pin Single Row Dip Type2mm Header Right Angle 5 Pin Single Row Dip Type

Key specifications

Pin Count
5 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2 mm pitch 5-contact single-row right-angle female header for DIP mounting. Dimension H: 4.3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
5 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Single Row
Dimension H
4.3 mm
Construction detail
Square

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
