Female Header Connector

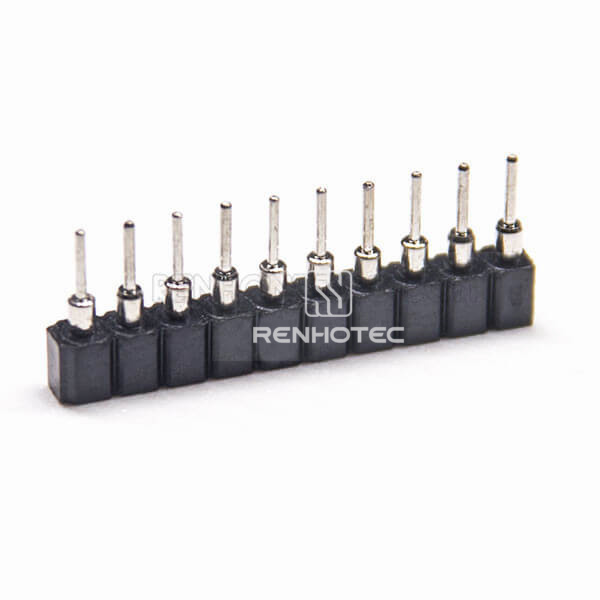

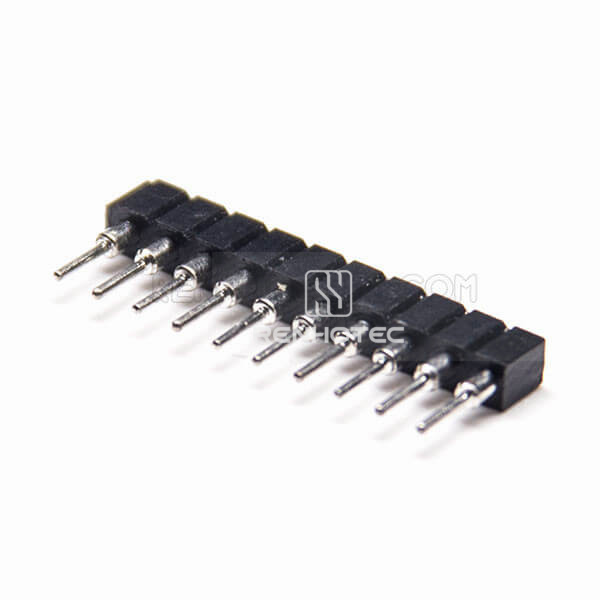

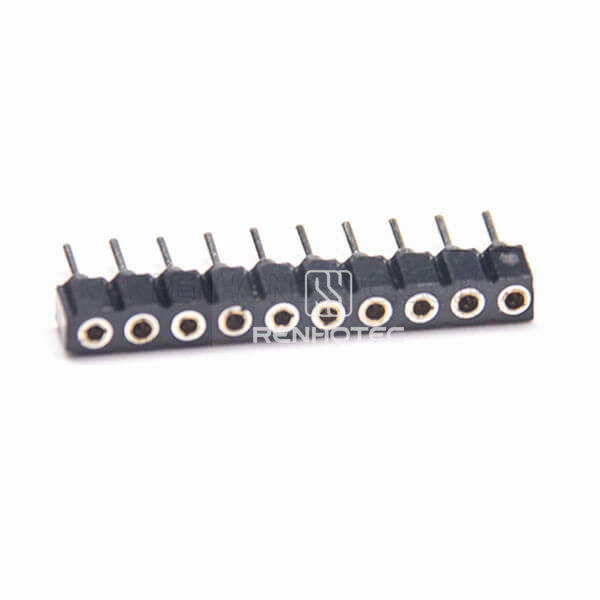

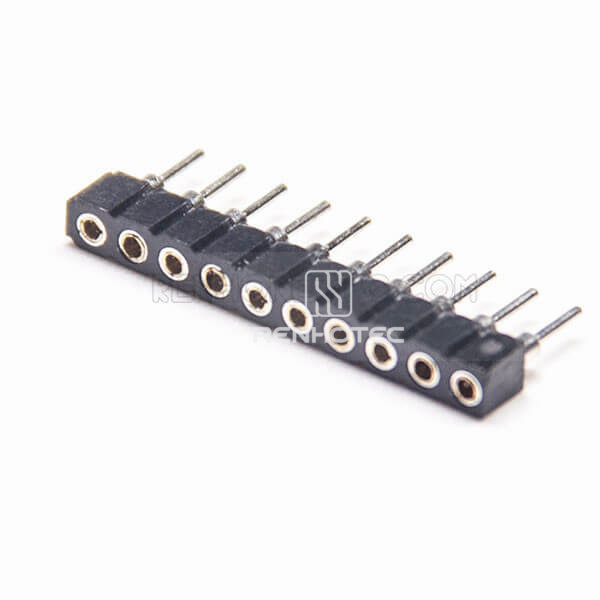

Female Pin Header Straight 2.0mm Circular Holes Single Row DIP Type

Public Part No. RHT-604-2041

Female Pin Header Straight 2.0mm Circular Holes Single Row DIP Type
Enlarge image
Female Pin Header Straight 2.0mm Circular Holes Single Row DIP TypeFemale Pin Header Straight 2.0mm Circular Holes Single Row DIP TypeFemale Pin Header Straight 2.0mm Circular Holes Single Row DIP TypeFemale Pin Header Straight 2.0mm Circular Holes Single Row DIP Type

Key specifications

Pin Count
10 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2 mm pitch 10-contact single-row straight female header for DIP mounting. Circular-hole version. Dimension H: 2.8 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
10 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Single Row
Construction detail
Circular
Dimension H
2.8 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
