Female Header Connector

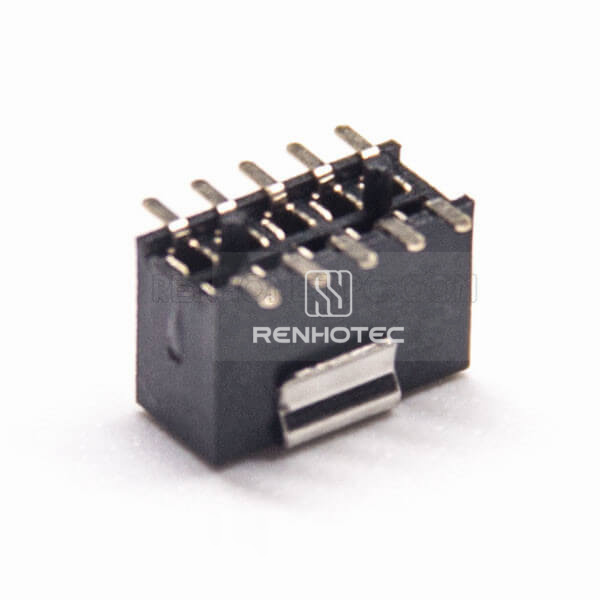

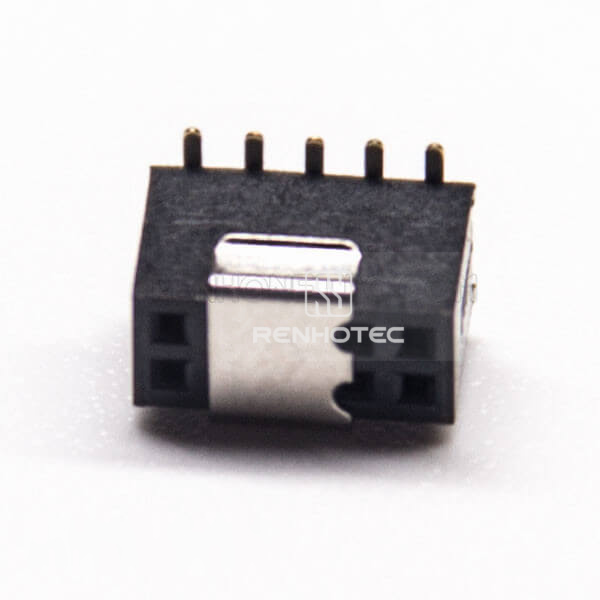

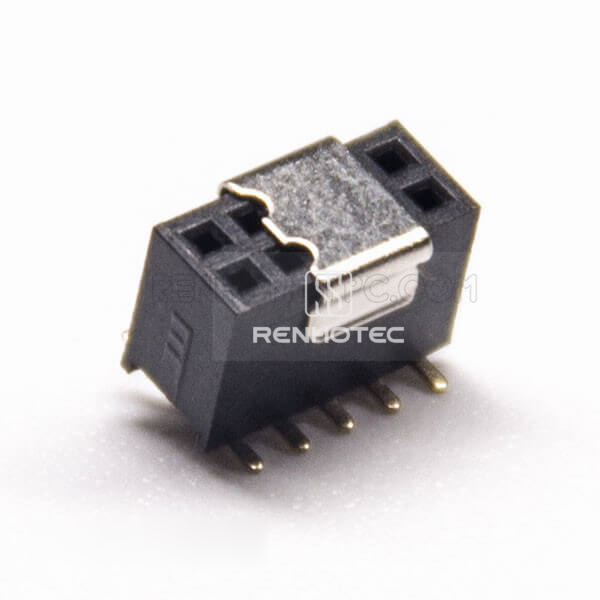

Female Header Connector RHT-604-2040

Part No.RHT-604-2040

1.27 mm pitch dual-row straight female header for SMT mounting.

  • GenderFemale
  • OrientationStraight
  • Mounting TypeSMT

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Dual Row
Dimension H
4.3 mm
Construction detail
Square
Contact configuration
2×5

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C

Before you specify

Selection guide

1.27 mm pitch dual-row straight female header for SMT mounting. Contact arrangement: 2×5. Dimension H: 4.3 mm.

RHT-604-2040
