Female Header Connector

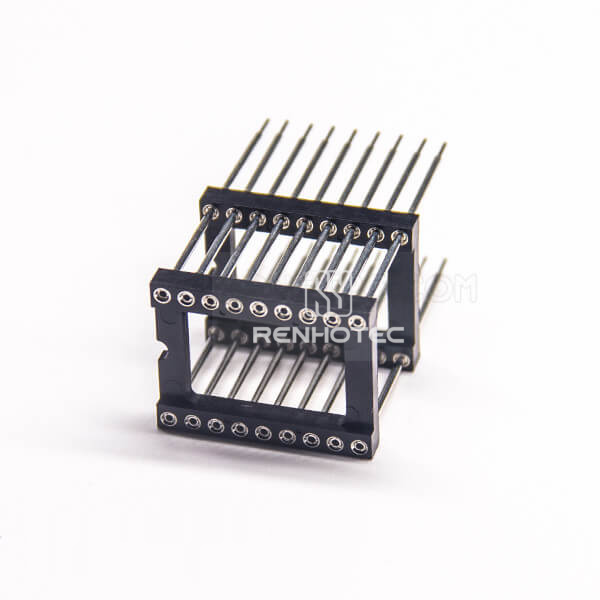

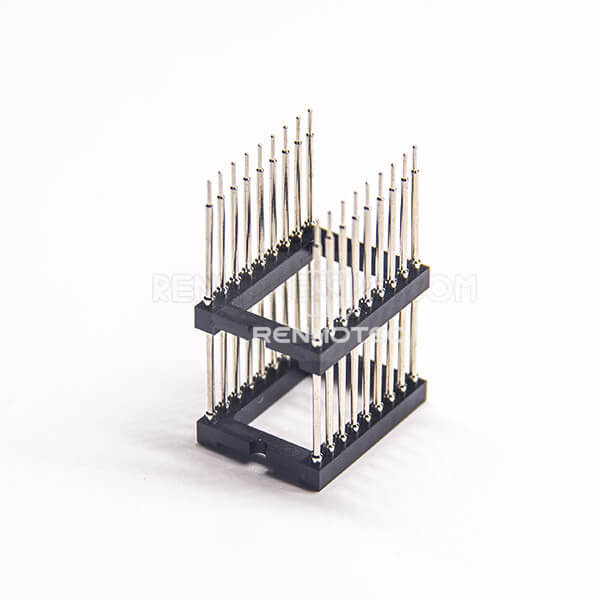

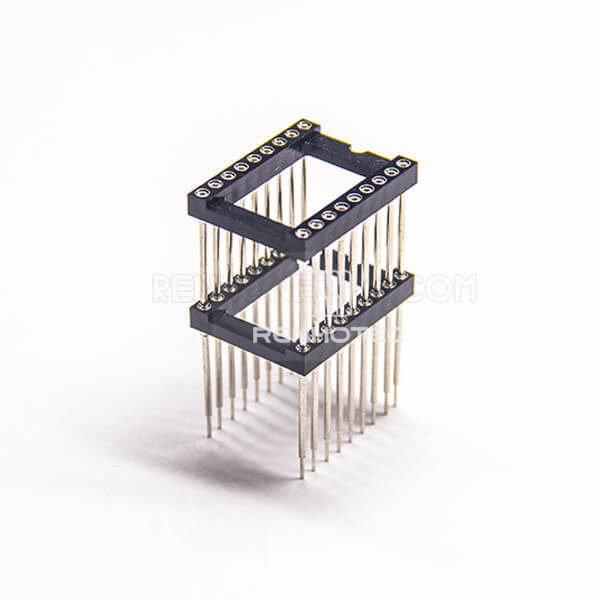

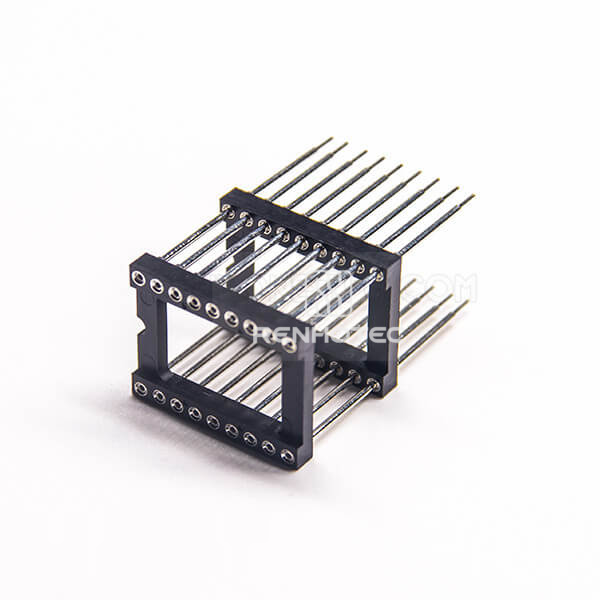

Dual Row Female Header Stright 2.54mm Picth IC Socket Dual Plastic

Part No.RHT-604-2039

2.54 mm pitch 18-contact dual-row straight female header for DIP mounting.

  • Pin Count18 Pin
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
18 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Construction detail
Circular
Dimension H
3 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C

Before you specify

Selection guide

2.54 mm pitch 18-contact dual-row straight female header for DIP mounting. Dual-plastic version. Dimension H: 3 mm.

RHT-604-2039
