Female Header Connector

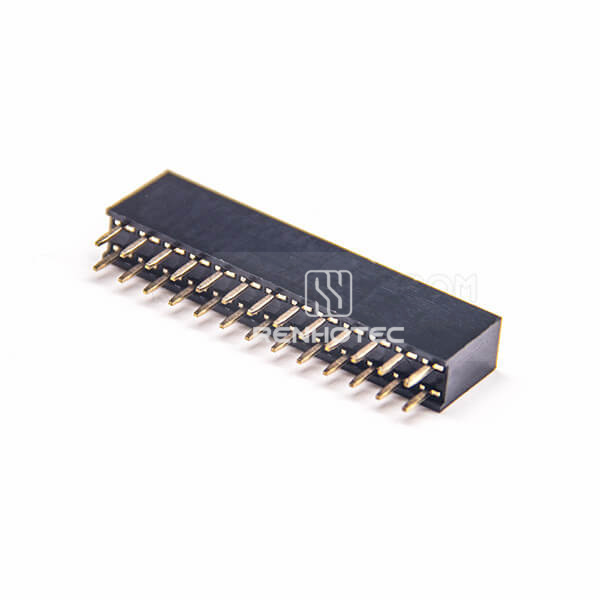

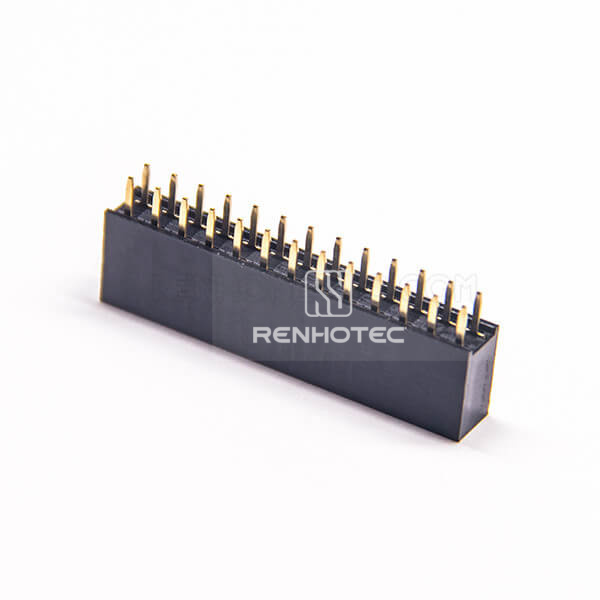

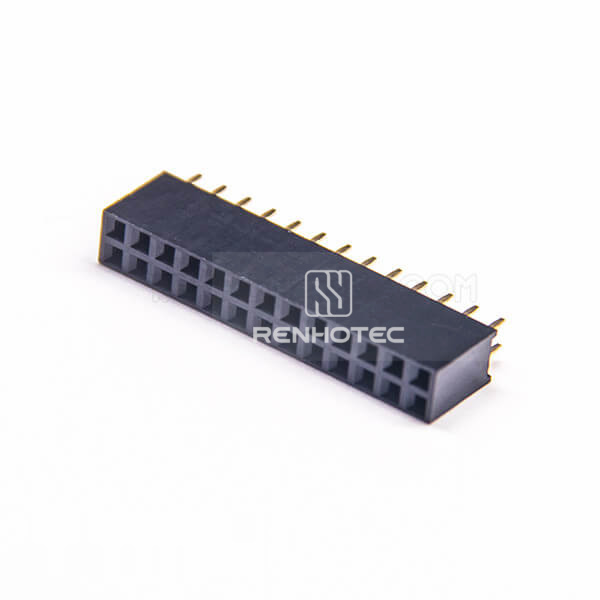

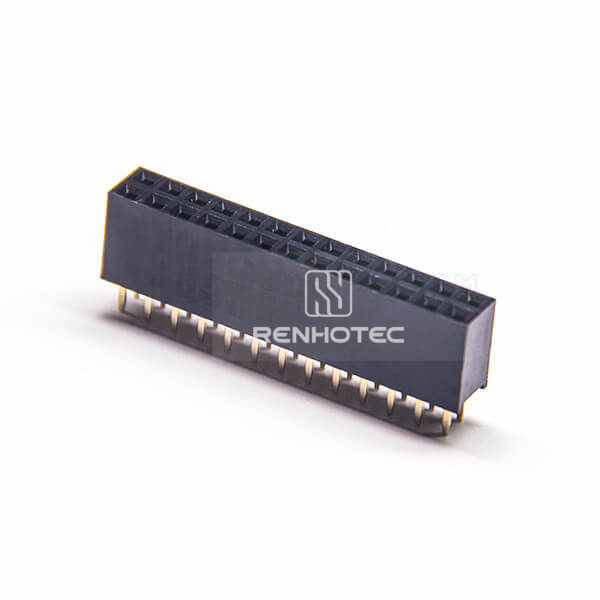

Female Header Connector RHT-604-2037

Public Part No. RHT-604-2037

Female Header Connector RHT-604-2037
Enlarge image
Female Header Connector RHT-604-2037Female Header Connector RHT-604-2037Female Header Connector RHT-604-2037Female Header Connector RHT-604-2037

Key specifications

Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch dual-row straight female header for DIP mounting. Contact arrangement: 2×13.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Contact configuration
2X13 Pin

Material

Contact Plating
Gold Plating
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
