Female Header Connector

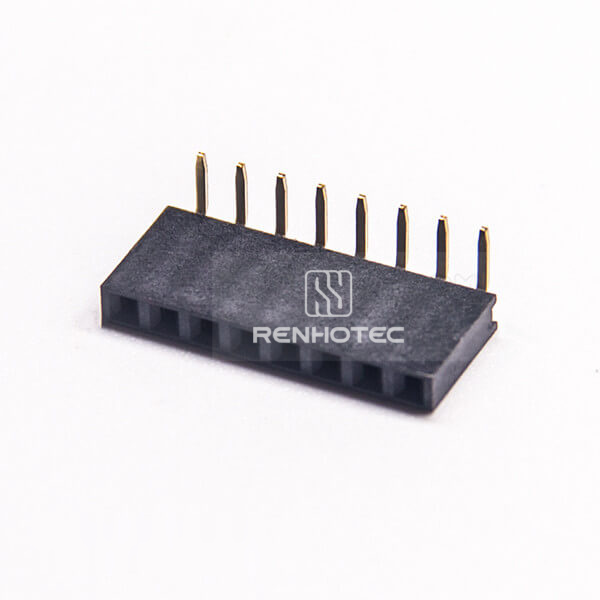

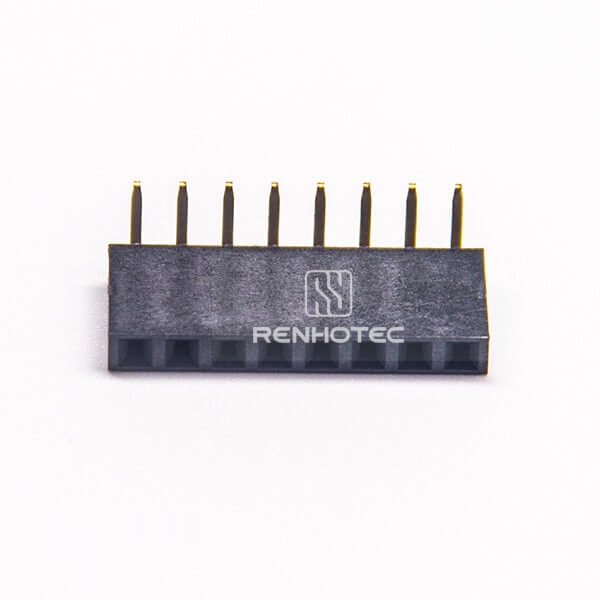

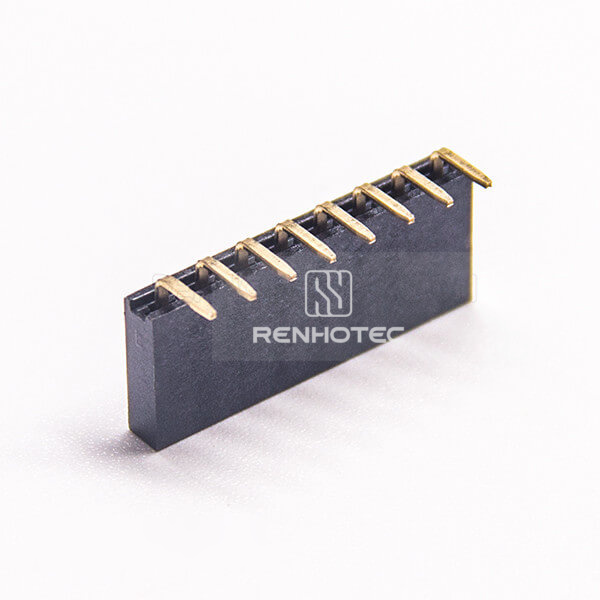

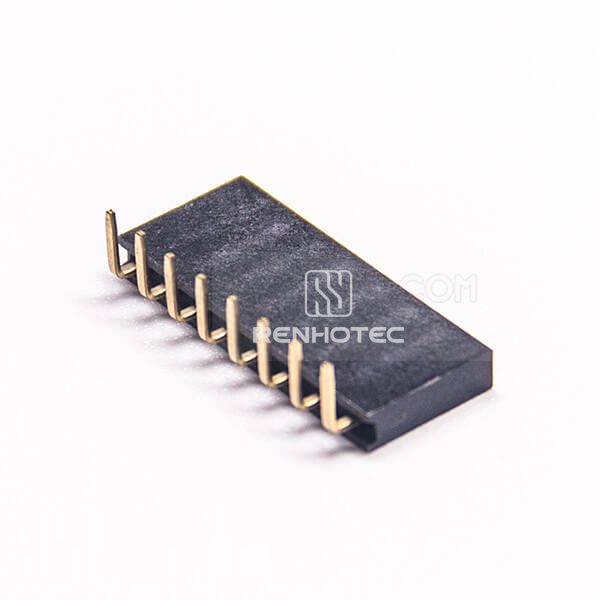

Right Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIP

Public Part No. RHT-604-2035

Right Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIP
Enlarge image
Right Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIPRight Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIPRight Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIPRight Angle Single Row Female Header 2.54mm Picth Y Type 8 Way DIP

Key specifications

Pin Count
8 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch 8-contact single-row right-angle female header for DIP mounting. Y-type version. Dimension H: 8.5 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / Through Hole
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Single Row
Dimension H
8.5 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
