Female Header Connector

Female Header Single Row Circular Holes DIP Type 2.54mm Picth

Public Part No. RHT-604-2032

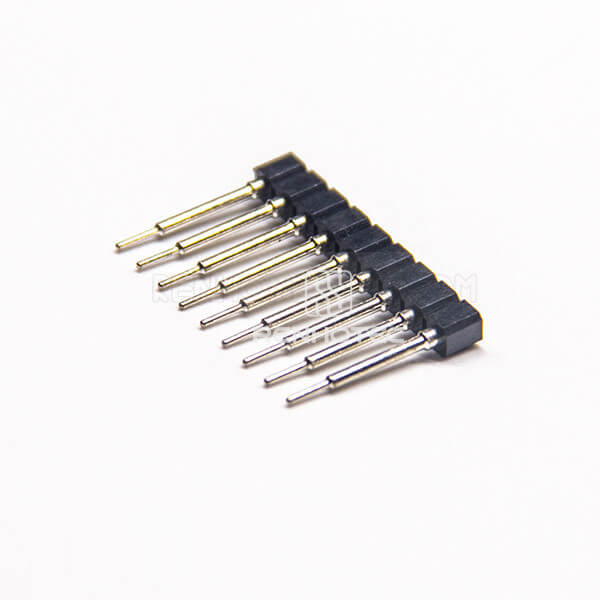

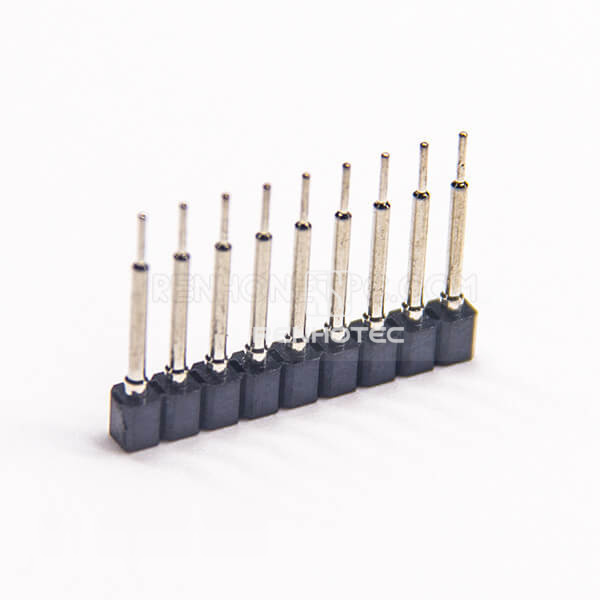

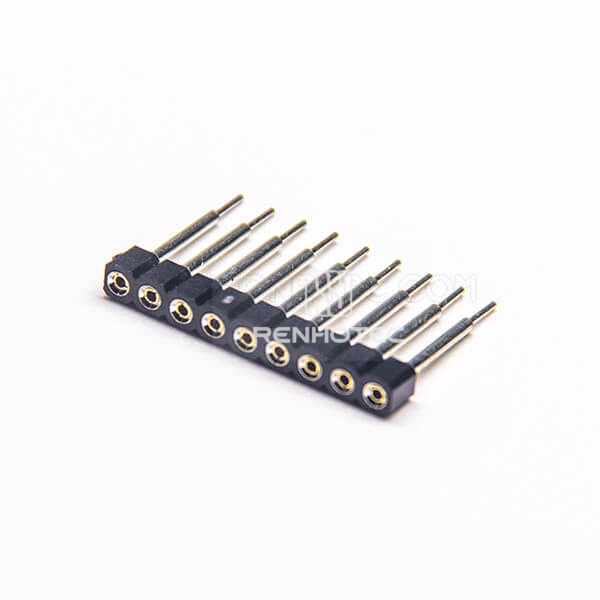

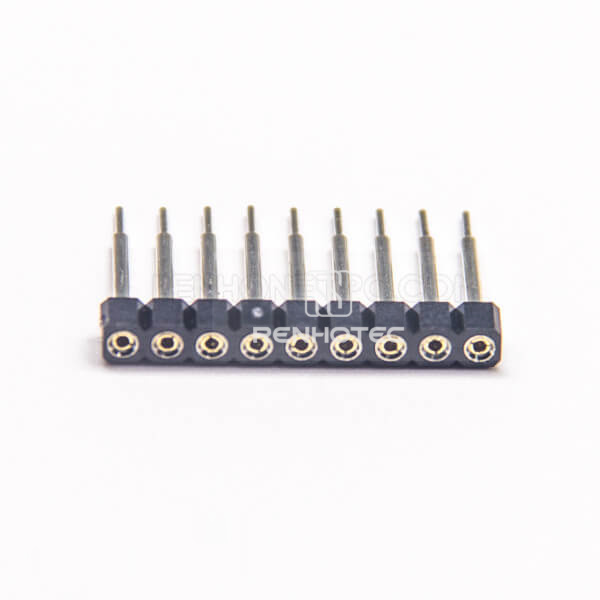

Female Header Single Row Circular Holes DIP Type 2.54mm Picth
Enlarge image
Female Header Single Row Circular Holes DIP Type 2.54mm PicthFemale Header Single Row Circular Holes DIP Type 2.54mm PicthFemale Header Single Row Circular Holes DIP Type 2.54mm PicthFemale Header Single Row Circular Holes DIP Type 2.54mm Picth

Key specifications

Pin Count
9 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch 9-contact single-row straight female header for DIP mounting. Circular-hole version. Dimension H: 3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
9 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Single Row
Construction detail
Circular / Circular Holes
Dimension H
3 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
