Female Header Connector

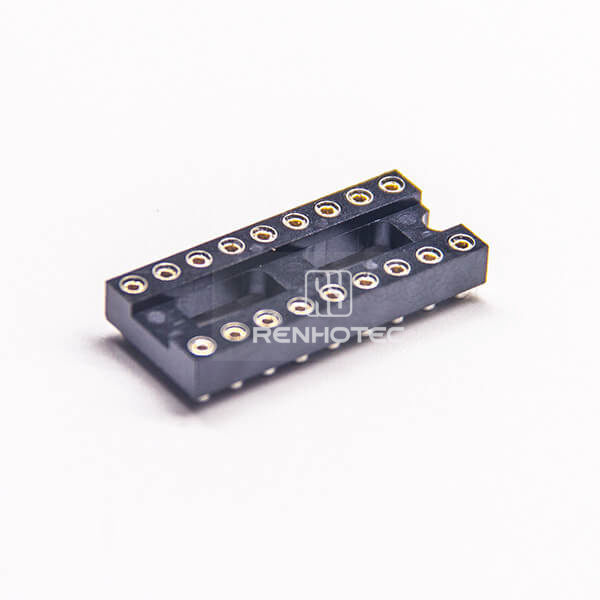

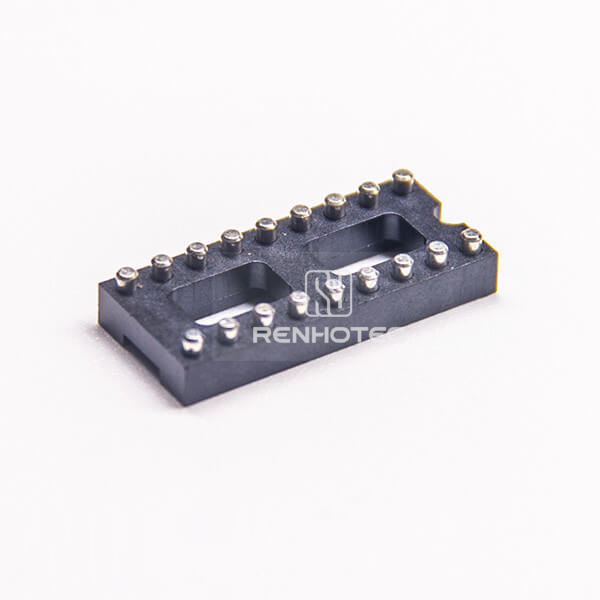

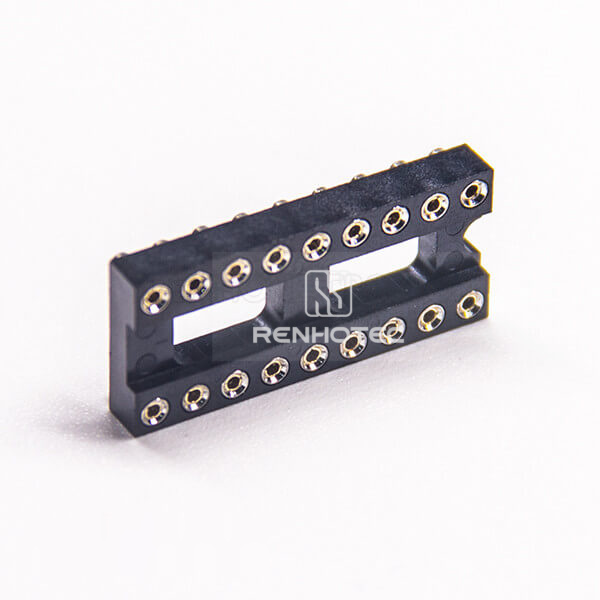

SMD Female Header Dual Row Circular Holes Socket 2.54mm Picth

Public Part No. RHT-604-2031

SMD Female Header Dual Row Circular Holes Socket 2.54mm Picth
Enlarge image
SMD Female Header Dual Row Circular Holes Socket 2.54mm PicthSMD Female Header Dual Row Circular Holes Socket 2.54mm PicthSMD Female Header Dual Row Circular Holes Socket 2.54mm Picth

Key specifications

Pin Count
18 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2.54 mm pitch 18-contact dual-row straight female header for SMT mounting. Circular-hole version. Dimension H: 3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
18 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2.54 mm
Number of Rows
Dual Row
Construction detail
Circular / Circular Holes
Dimension H
3 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
