Female Header Connector

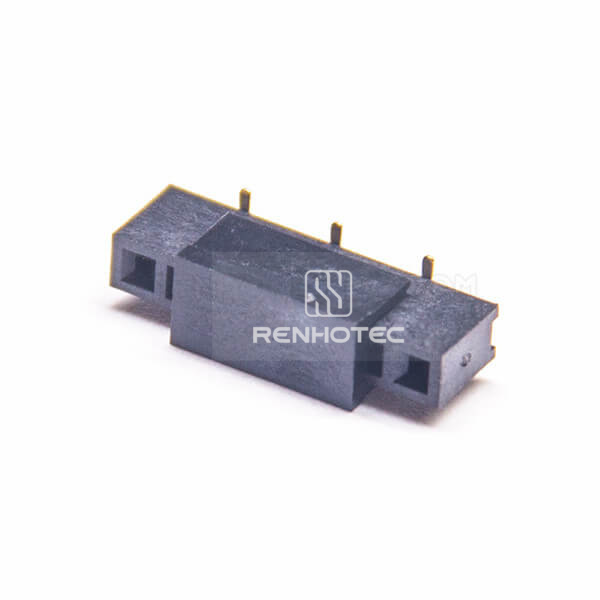

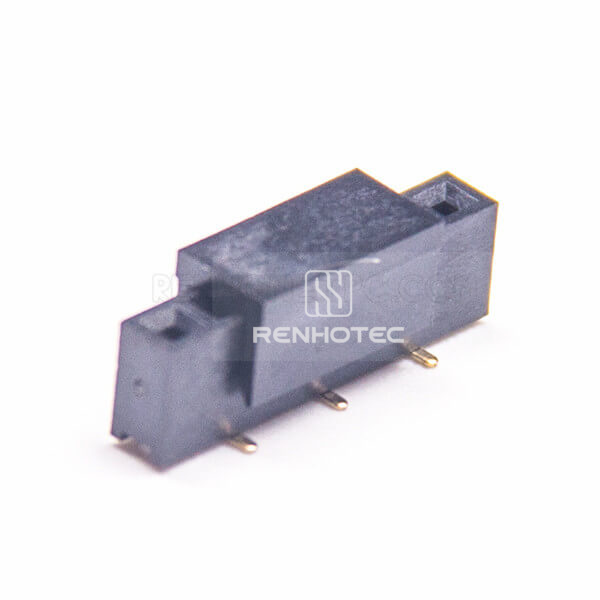

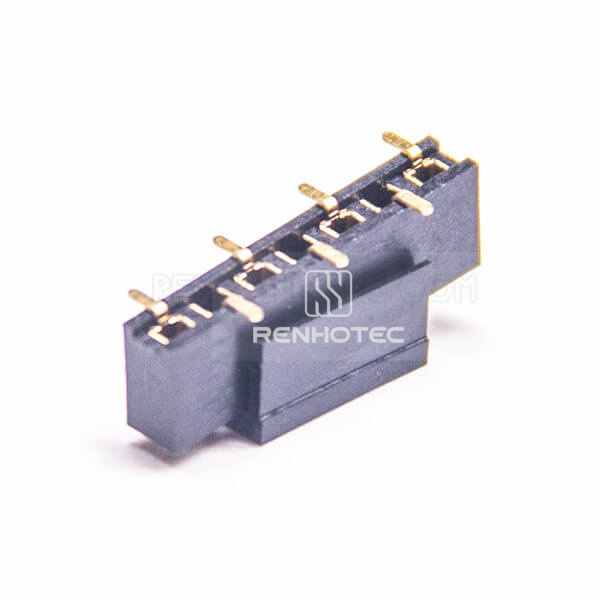

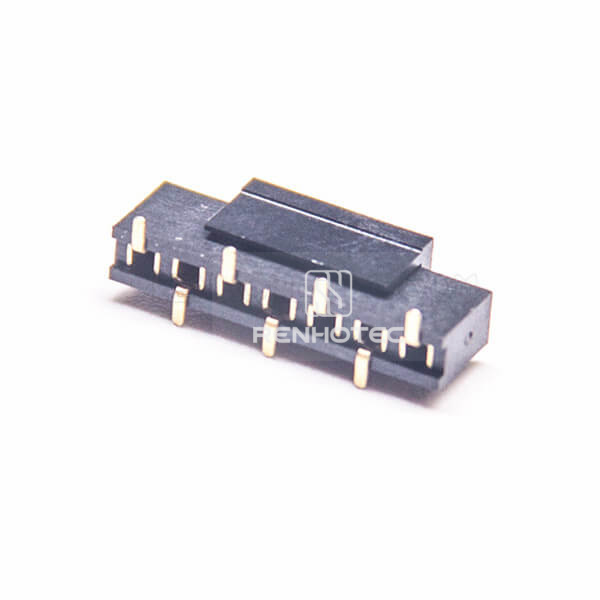

Single Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic Height

Public Part No. RHT-604-2028

Single Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic Height
Enlarge image
Single Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic HeightSingle Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic HeightSingle Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic HeightSingle Row Female Header Connector 2.0mm SMT Type 4.3mm Plastic Height

Key specifications

Pin Count
7 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2 mm pitch 7-contact single-row straight female header for SMT mounting. Plastic height: 4.3 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
7 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Single Row
Dimension H
4.3 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
