Female Header Connector

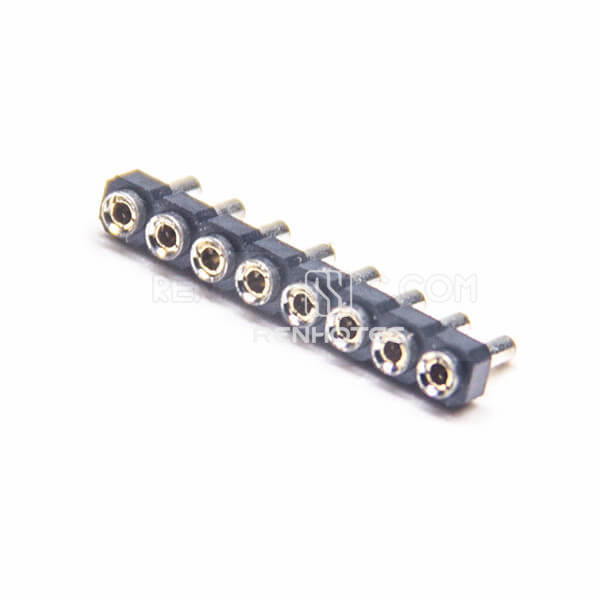

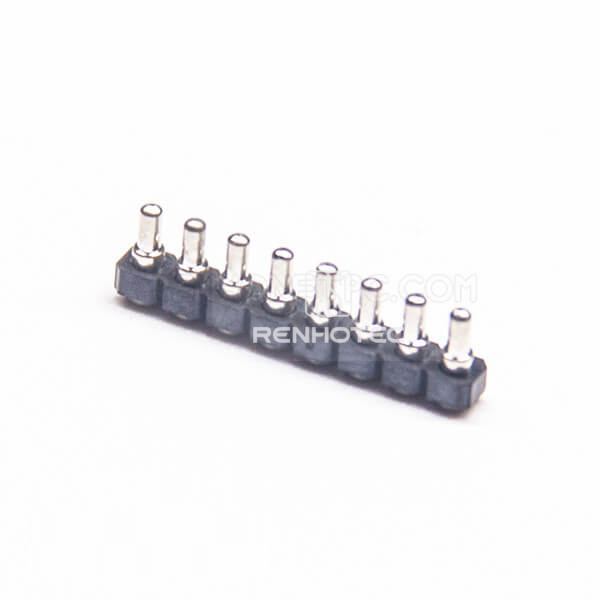

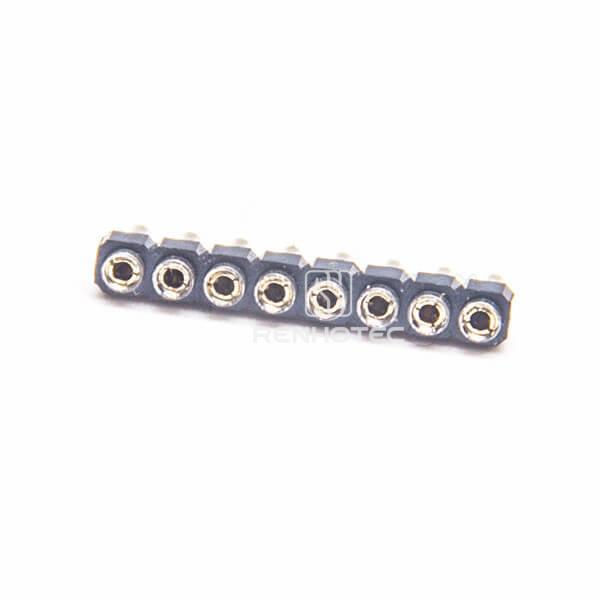

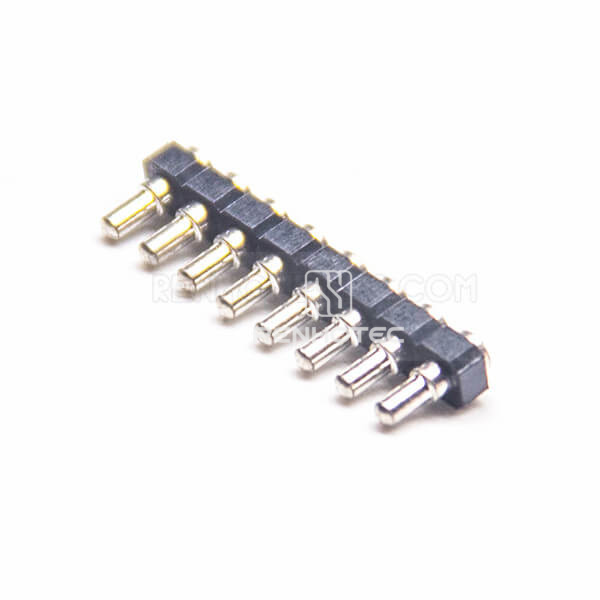

8 Pin Female Header Round Holes Sochet Single Row Connector

Public Part No. RHT-604-2026

8 Pin Female Header Round Holes Sochet Single Row Connector
Enlarge image
8 Pin Female Header Round Holes Sochet Single Row Connector8 Pin Female Header Round Holes Sochet Single Row Connector8 Pin Female Header Round Holes Sochet Single Row Connector8 Pin Female Header Round Holes Sochet Single Row Connector

Key specifications

Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

2 mm pitch 8-contact single-row straight female header for through-hole mounting. Circular-hole version. Dimension H: 1.2 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
8 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Termination Type
Solder Type
Pitch
2 mm
Number of Rows
Single Row
Construction detail
Circular / Circular Holes
Dimension H
1.2 mm

Material

Contact Plating
Tin Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
