Female Header Connector

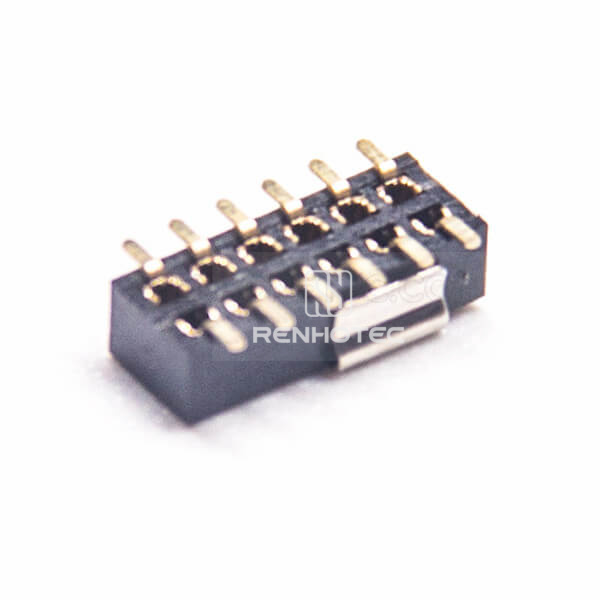

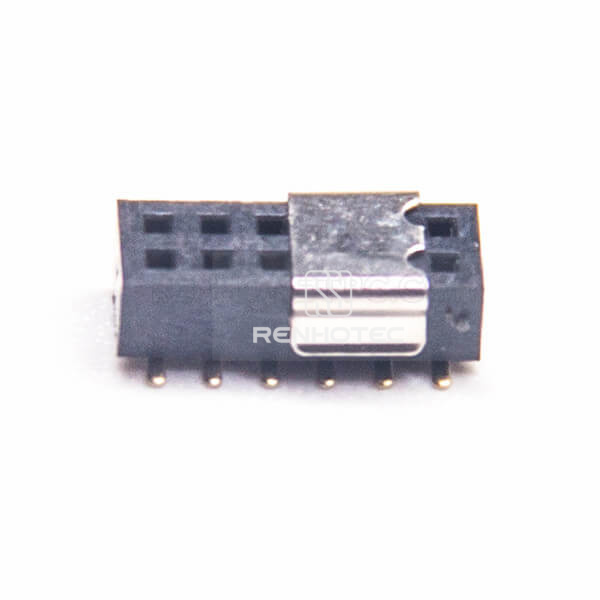

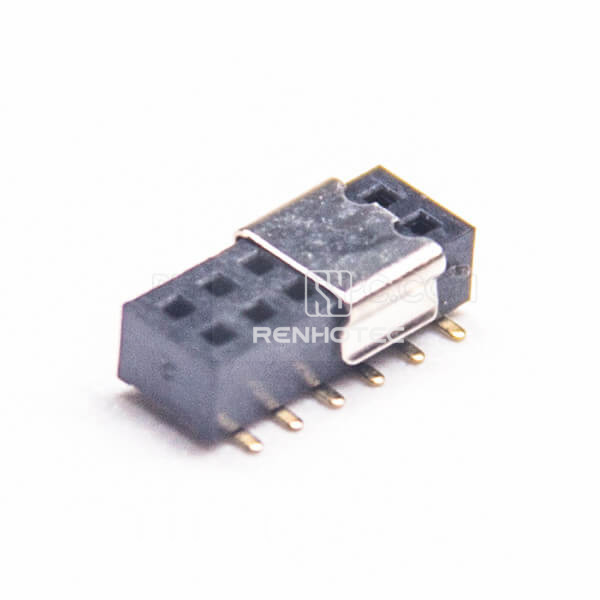

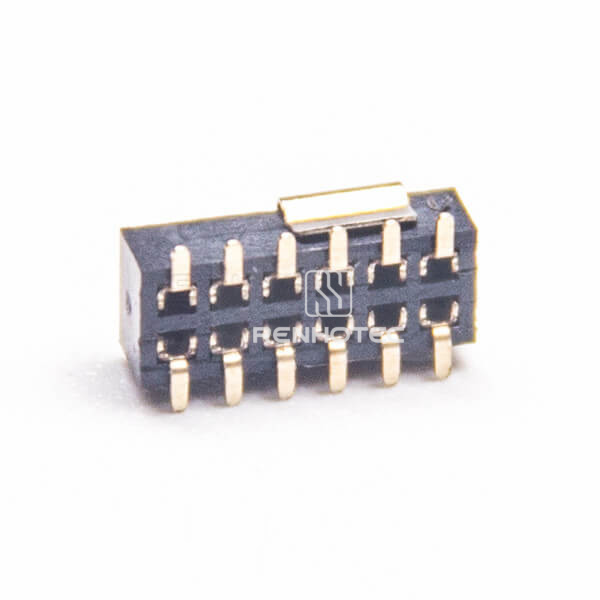

SMT Female Header 1.27 Gap Double Row 180 Degree

Public Part No. RHT-604-2025

SMT Female Header 1.27 Gap Double Row 180 Degree
Enlarge image
SMT Female Header 1.27 Gap Double Row 180 DegreeSMT Female Header 1.27 Gap Double Row 180 DegreeSMT Female Header 1.27 Gap Double Row 180 DegreeSMT Female Header 1.27 Gap Double Row 180 Degree

Key specifications

Pin Count
12 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Request QuoteFull specifications

Overview

1.27 mm pitch 12-contact dual-row straight female header for SMT mounting. Dimension H: 2.1 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
12 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Termination Type
Solder Type
Pitch
1.27 mm
Number of Rows
Dual Row
Dimension H
2.1 mm
Construction detail
Square

Material

Contact Plating
Gold Plating
Color
Black
Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
