Female Header Connector

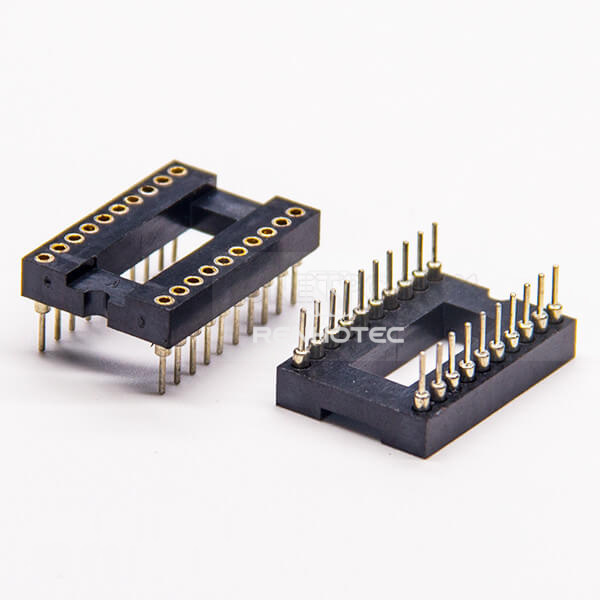

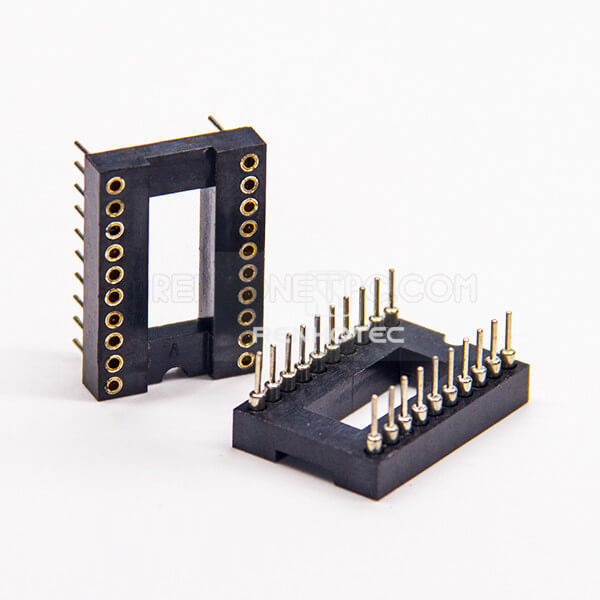

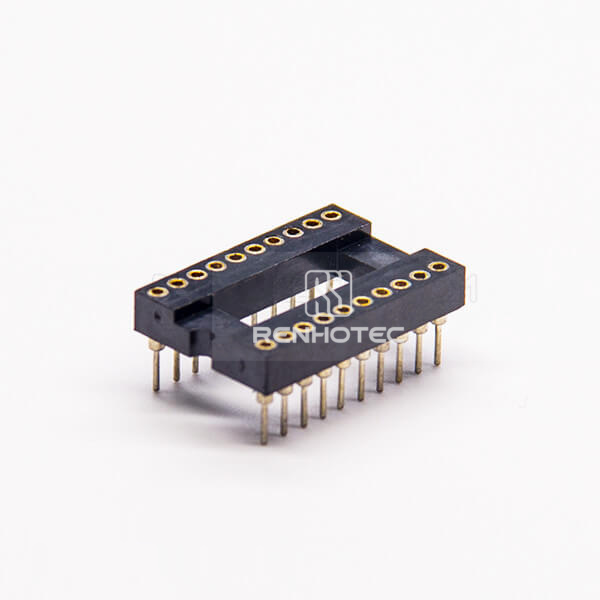

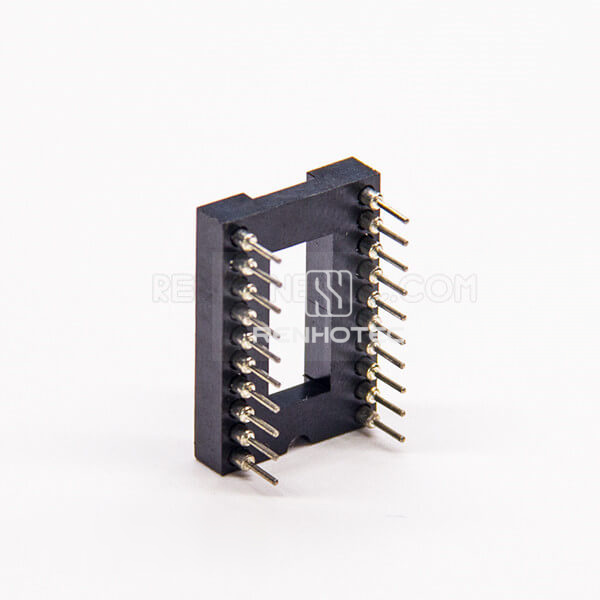

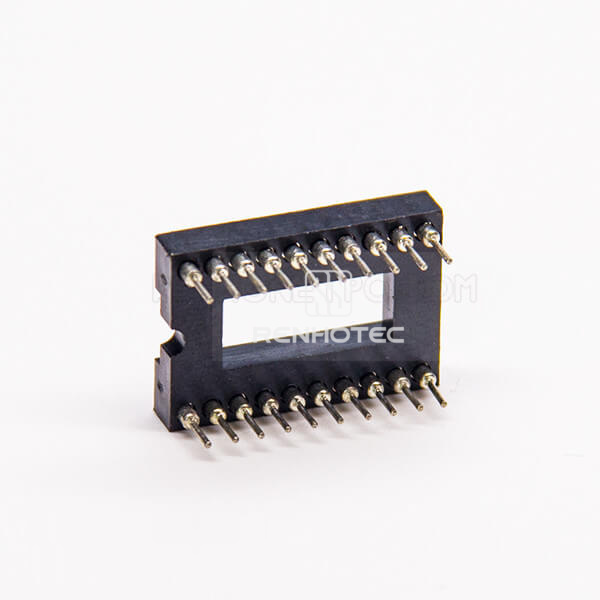

20 Way Dual Row Circular Holes Female Header Connector Through Hole

Public Part No. RHT-604-2023

20 Way Dual Row Circular Holes Female Header Connector Through Hole
Enlarge image
20 Way Dual Row Circular Holes Female Header Connector Through Hole20 Way Dual Row Circular Holes Female Header Connector Through Hole20 Way Dual Row Circular Holes Female Header Connector Through Hole20 Way Dual Row Circular Holes Female Header Connector Through Hole20 Way Dual Row Circular Holes Female Header Connector Through Hole

Key specifications

Pin Count
20 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

20-contact dual-row straight female header for through-hole mounting. Circular-hole version.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
20 Pin
Gender
Female
Orientation
Straight
Mounting Type
Through Hole
Number of Rows
Dual Row
Construction detail
Circular Holes

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
