Female Header Connector

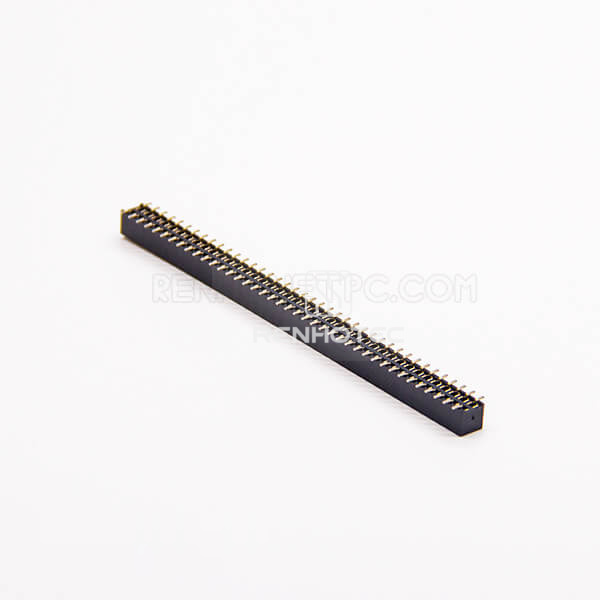

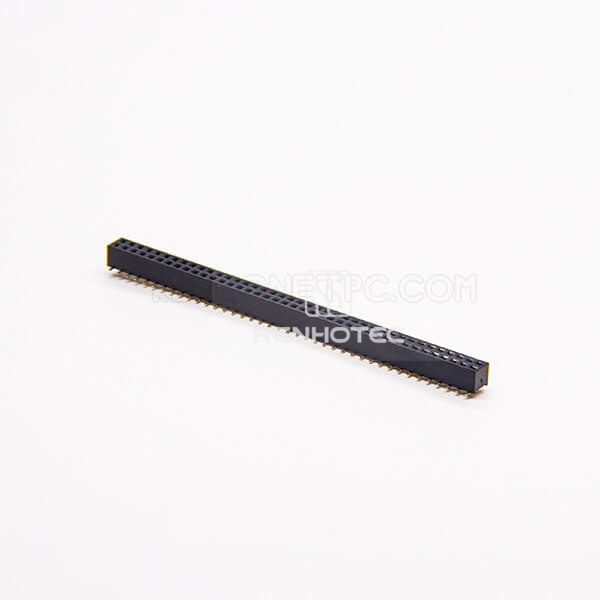

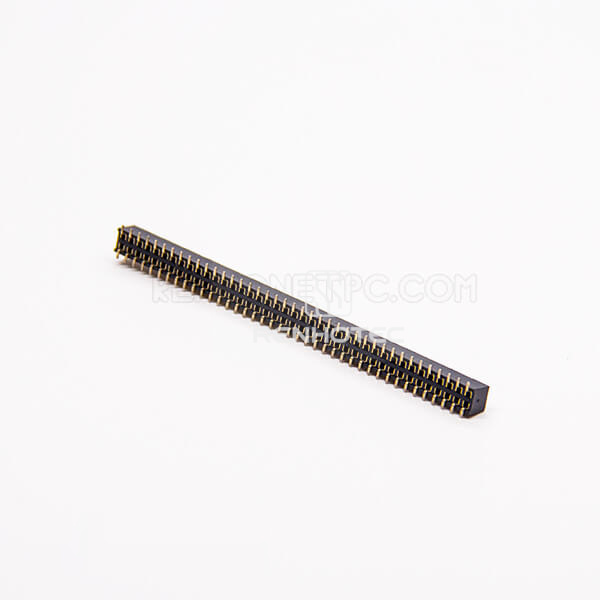

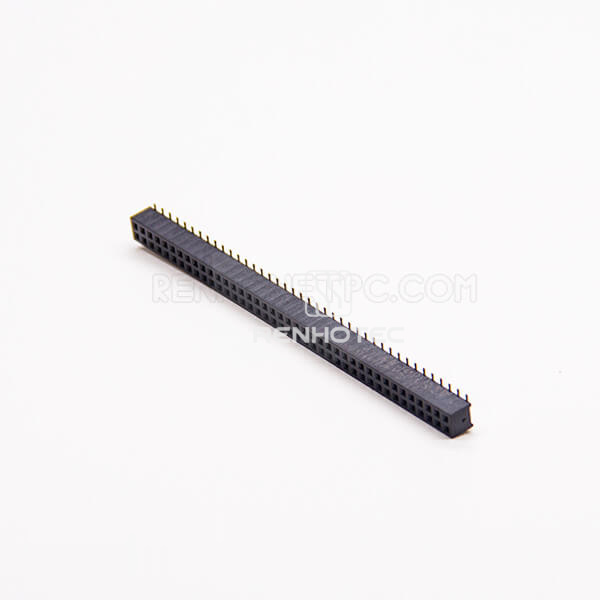

SMT Type Female Header Connector 80 Way Dual Row Straight

Public Part No. RHT-604-2021

SMT Type Female Header Connector 80 Way Dual Row Straight
Enlarge image
SMT Type Female Header Connector 80 Way Dual Row StraightSMT Type Female Header Connector 80 Way Dual Row StraightSMT Type Female Header Connector 80 Way Dual Row StraightSMT Type Female Header Connector 80 Way Dual Row Straight

Key specifications

Pin Count
80 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Request QuoteFull specifications

Overview

Female Header Connector with 80 Pin, Female, Straight. Mounting: SMT.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
80 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Number of Rows
Dual Row

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
