Female Header Connector

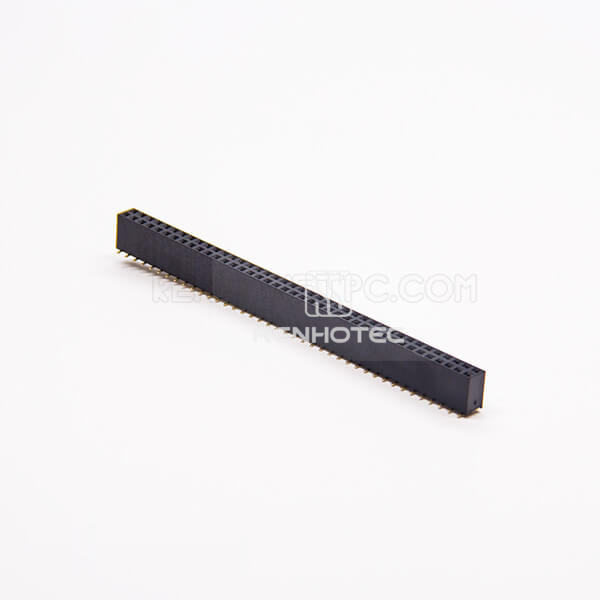

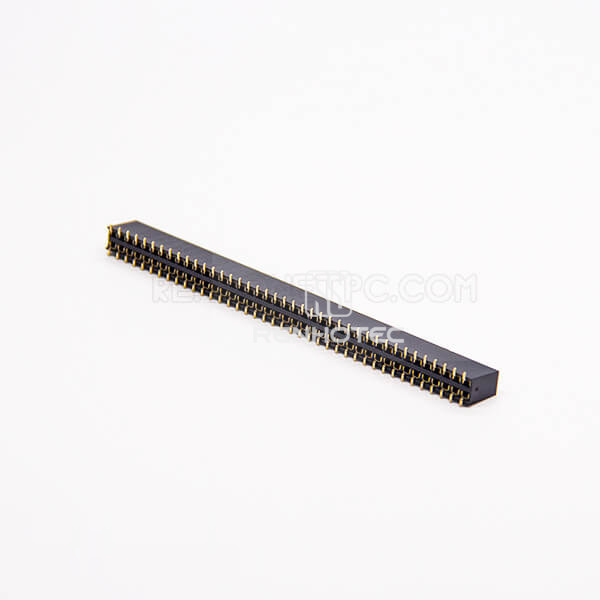

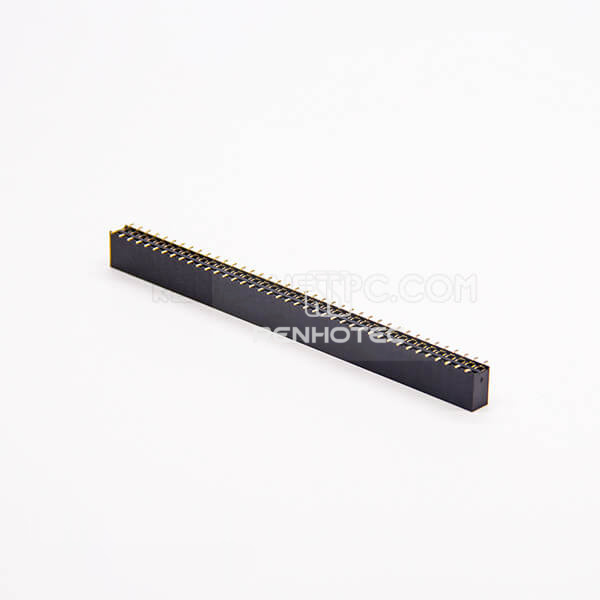

80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height

Public Part No. RHT-604-2020

80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height
Enlarge image
80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height

Key specifications

Pin Count
80 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Request QuoteFull specifications

Overview

80-contact dual-row straight female header for SMT mounting. Plastic height: 8.5 mm.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
80 Pin
Gender
Female
Orientation
Straight
Mounting Type
SMT
Number of Rows
Dual Row

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
