Female Header Connector

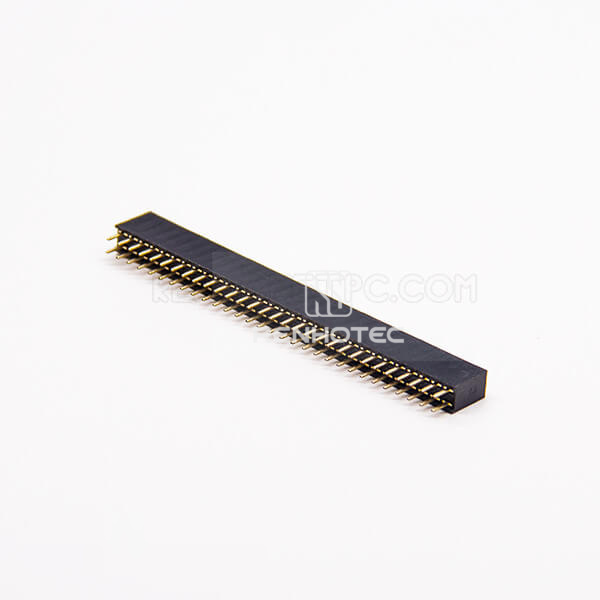

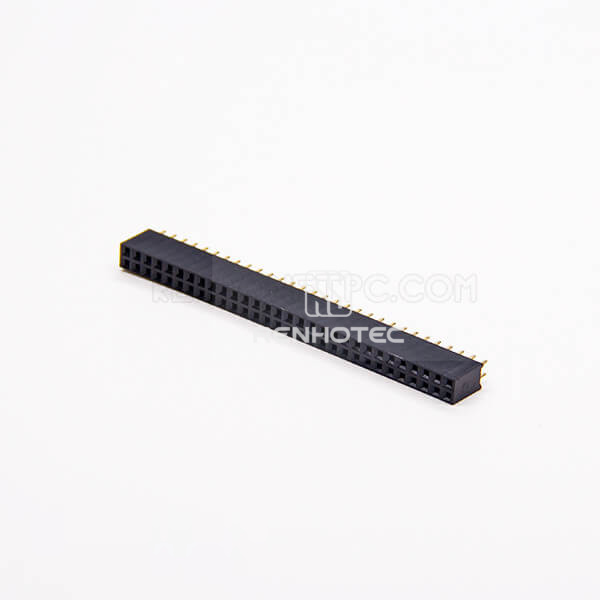

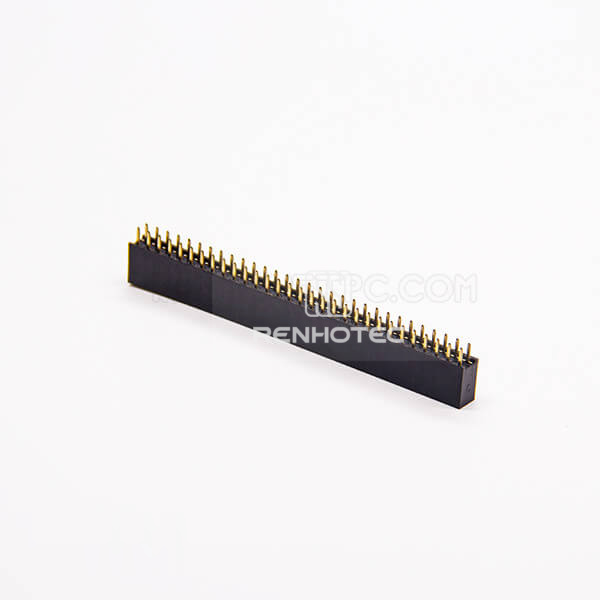

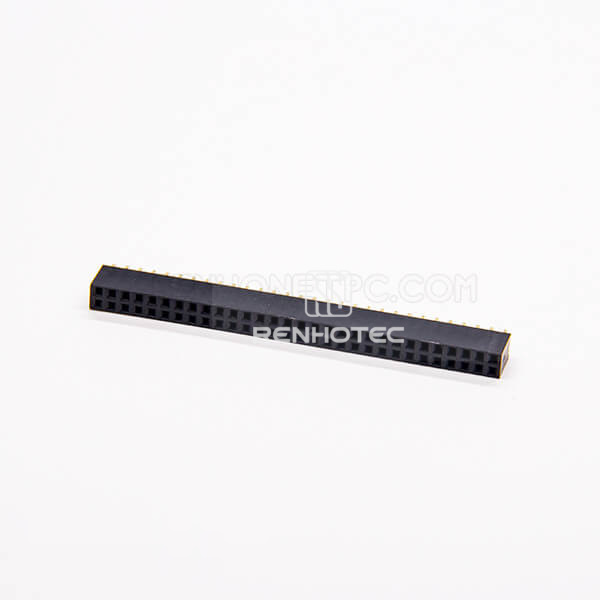

DIP Type Straight Female Header 60 Way Dual Row

Public Part No. RHT-604-2019

DIP Type Straight Female Header 60 Way Dual Row
Enlarge image
DIP Type Straight Female Header 60 Way Dual RowDIP Type Straight Female Header 60 Way Dual RowDIP Type Straight Female Header 60 Way Dual RowDIP Type Straight Female Header 60 Way Dual Row

Key specifications

Pin Count
60 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Request QuoteFull specifications

Overview

Female Header Connector with 60 Pin, Female, Straight. Mounting: DIP.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
60 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP
Number of Rows
Dual Row

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
