Female Header Connector

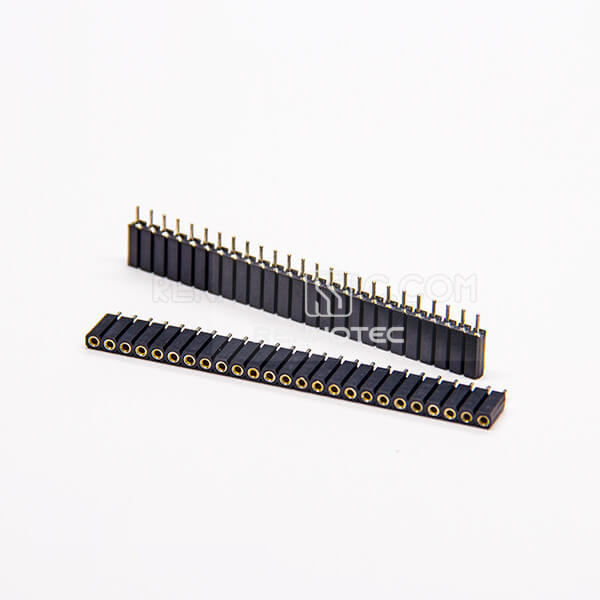

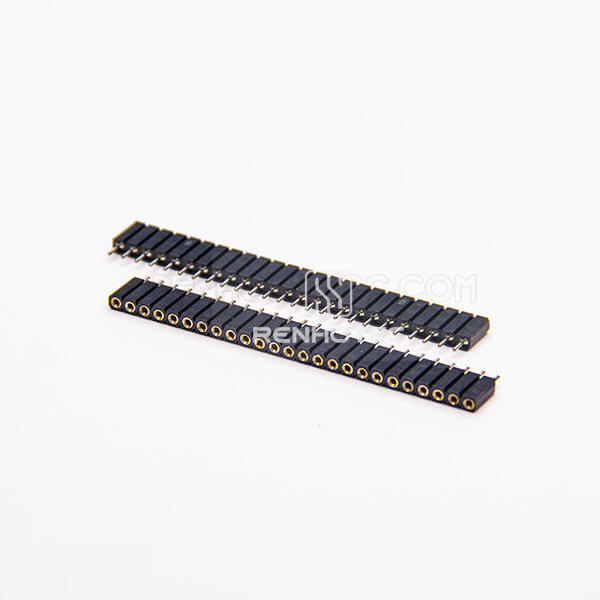

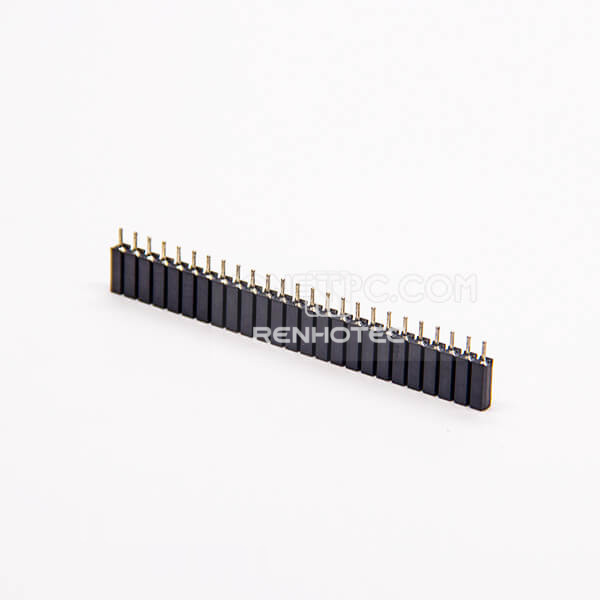

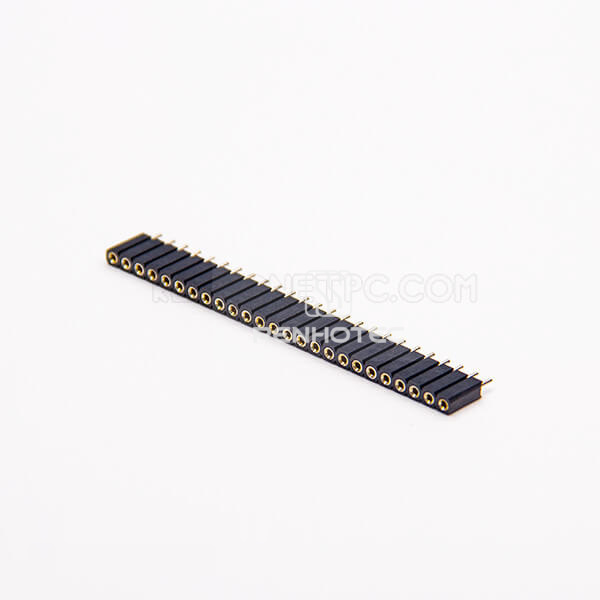

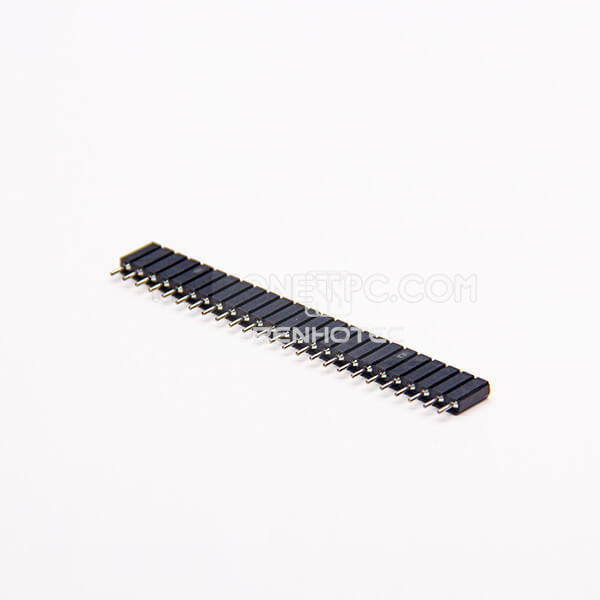

Circular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIP

Public Part No. RHT-604-2014

Circular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIP
Enlarge image
Circular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIPCircular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIPCircular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIPCircular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIPCircular Holes 180 Degree Female Header 2.54mm Pitch 25 Way DIP

Key specifications

Pin Count
25 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP / Through Hole
Request QuoteFull specifications

Overview

2.54 mm pitch 25-contact straight female header for DIP mounting. Circular-hole version.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
25 Pin
Gender
Female
Orientation
Straight
Mounting Type
DIP / Through Hole
Pitch
2.54 mm
Construction detail
Circular Holes

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
