Female Header Connector

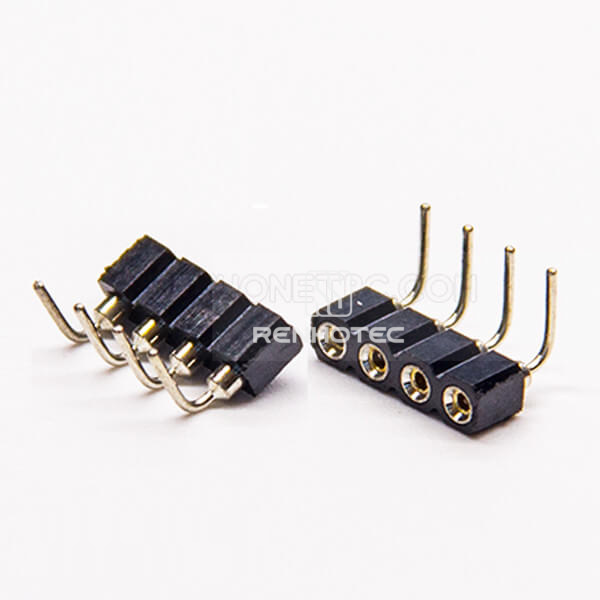

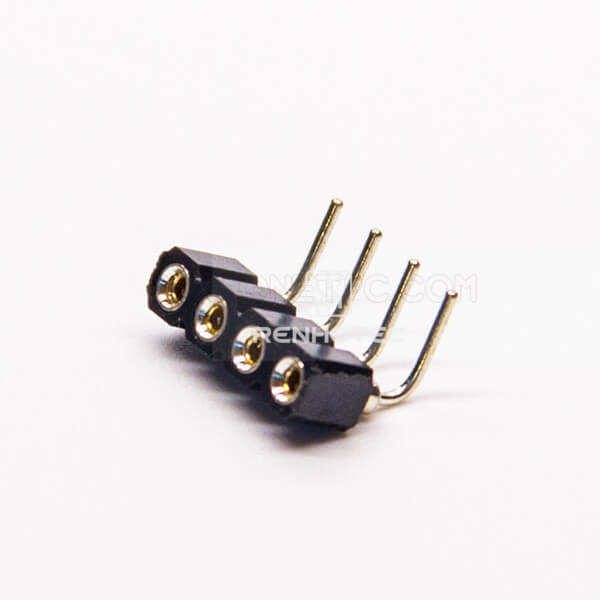

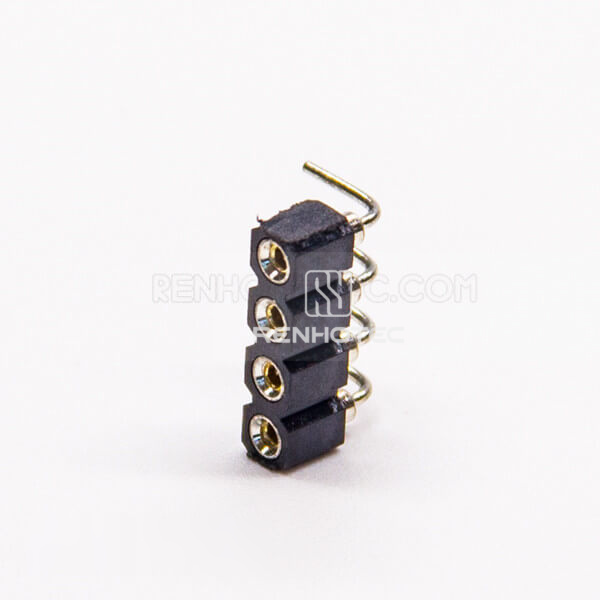

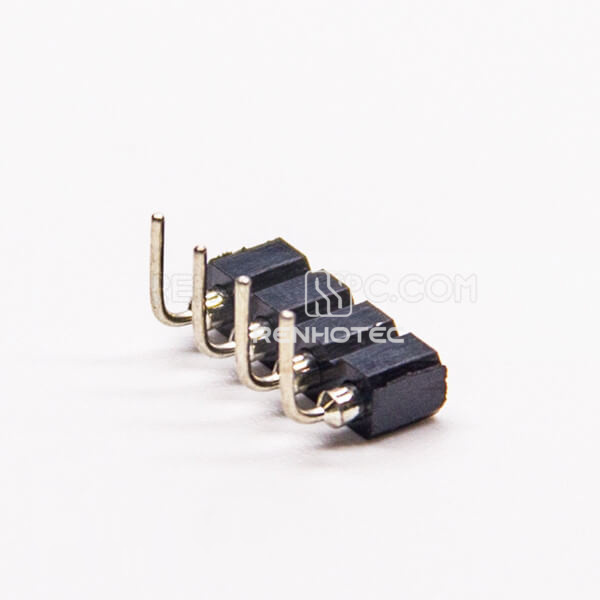

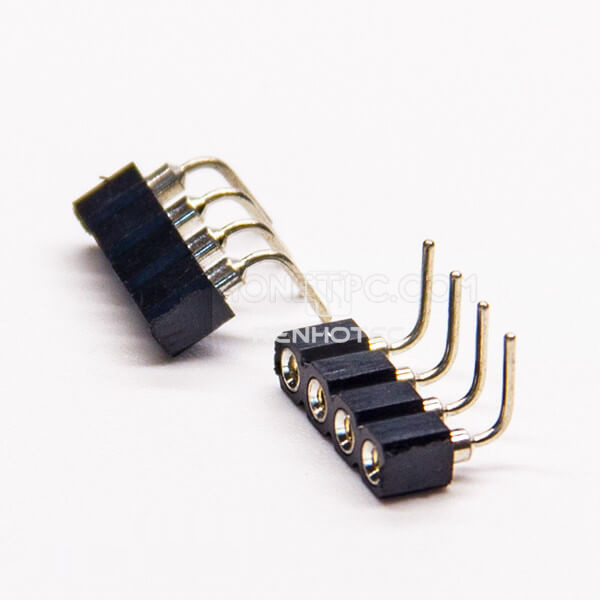

4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree

Public Part No. RHT-604-2012

4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree
Enlarge image
4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree4 Pin Circular Holes Female Header 2.54mm Pitch 90 Degree

Key specifications

Pin Count
4 Pin
Gender
Female
Orientation
Right Angle
Request QuoteFull specifications

Overview

2.54 mm pitch 4-contact right-angle female header. Circular-hole version.

Full Specifications

Electrical

Current Rating
1.5A
Insulation Resistance
1000M ohms min
Dielectric Withstanding
AC500V

Mechanical

Pin Count
4 Pin
Gender
Female
Orientation
Right Angle
Pitch
2.54 mm

Material

Plating layers
Gold (Au) plated (surface flashing); Tin-plated (main plating materials); Nickel(Ni) plated (underplating)

Environmental

Operating Temperature
-40 to 105 °C
